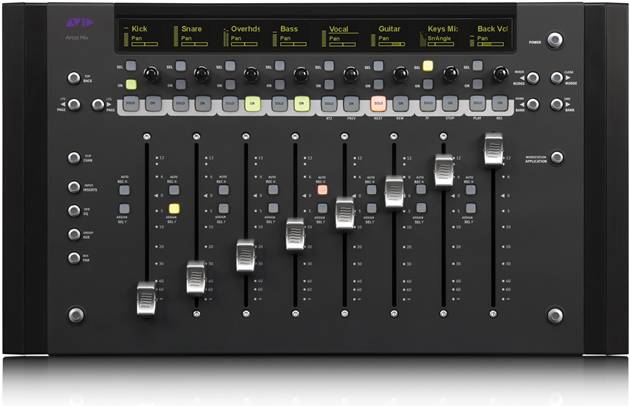

Euphonix Artist Mix

A Compact, Elegant, and Effective DAW Control Surface!
The Avid Artist Mix control surface puts eight motorized faders and an array of programmable buttons and knobs at your command for maximum control over your DAW in a small footprint. Avid put some of the coolest features from its impressive full-sized consoles into the Artist Mix, including touch-sensitive, responsive faders and multi-function rotary encoders. This well-designed box is ultra-functional, while sporting a decidedly uncluttered appearance. Now you can get the most out of your DAW with the compact, versatile Artist Mix! The Artist Mix's rotary encoders give you direct control over everything from panning and gain to editing your most powerful plug-ins and EQ. These knobs and keys can also be pressed to select/deselect and navigate through parameters. Knob set selector keys allow you to quickly assign the rotary encoders to control plug-ins, EQs, panning, signal routing, and much more. You can either control the same parameter across all tracks or assign all knobs to one track for easy editing of multiple parameters at once. High-quality ALPS 100mm long throw faders offer accurate and smooth mixing; touching a fader will automatically select the corresponding track. Avid consoles are renowned for their quality components and smooth operation, and now the Artist Mix gives you that "feel" in an affordable, compact unit! High-resolution 128 x 64 pixel OLED display provides track name/number, detailed metering (from mono to 5.1 surround data), parameter name/value currently being modified by its corresponding rotary encoder, current automation mode, and more. The MC Control and Artist Mix feature EuCon, a high-speed control protocol developed by Avid that enables simultaneous control of multiple applications and even workstations over an Ethernet cable at 250 times the speed and eight times the resolution of MIDI. EuCon automatically detects whatever application is in the foreground and instantly sets the high-resolution touchscreen and displays, motorized faders and arsenal of controls to match. Avid Artist Mix Control Surface Features at a Glance:

8 touch-sensitive motorized faders
8 touch-sensitive rotary encoders
8 high-resolution OLED displays (128 x 64 pixels)
Transport controls
High-speed EuCon Ethernet protocol
Mac OS X and Windows 7 compatible

The Avid Artist Mix puts "big console" control and feel into a handy desktop control surface!



Specification
Detail


Intended Use
Audio Mixer


Number of Faders
8


Fader Throw
100mm


Fader Type
Touch Sensitive, Motorized


Number of Knobs
8


Knob Type
Touch Sensitive rotary encoders


Number of Performance Pads
No performance pads


Performance Pad Types
No performance pads


Number of Soft Keys
63 dedicated soft keys


Other Controls
No other controls


Transport Controls
No


Audio Inputs
No audio inputs


Audio Outputs
No audio outputs


Computer Connectivity
Ethernet


Control I/O
Footswitch input


Height
1.2"


Depth
9.5"


Width
16.8"


Weight
4.8 lbs


Manufacturer Part Number
9900-65169-00
