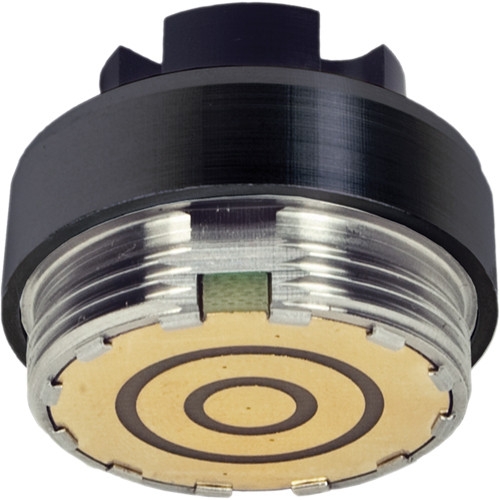

Ambient Recording HHA Handheld Adapter for Shure Wireless Transmitter Thread (Shure Ring)

The Ambient Recording HHA Handheld Adapter is designed to allow Sennheiser SKM 5000 series microphone capsules to be used with any wireless handheld transmitter featuring the widely spread Shure threading. The HHA adapts all Sennheiser SKM 5000 capsules, including the Neumann KK series. Active power conversion circuitry steps up the 5V bias voltage up to Sennheiser's 7V.
Use the HHA with Lectrosonic's digital hybrid HH series transmitters and Neumann's true condenser capsules for an additional boost of 15V, resulting in wider dynamic range, high SPL and low signal-to-noise ratio. The adapter features an all metal construction, and optional color-coded adapter rings are available to suite various transmitter sizes.



Ships with black covering ring for use with Shure handheld wireless transmitters


Mount Sennheiser SKM 5000 compatible heads to transmitters that use the Shure handheld transmitter thread


Active power converting circuitry steps up the 5V bias voltage to 7V


Additional 15V power boost when using Lectrosonic's digital hybrid HH transmitters








Material
Body: Stainless steel Contacts: Gold plated


Voltage
Switchable 7V/15V


Dimensions
Height: 1.01" (25.9mm) Outer diameter: 1.29" (33mm) Visible height: 0.35" (9mm)


Weight
1.12 oz (32g)- without ring






Packaging Info


Package Weight
0.2 lb


Box Dimensions (LxWxH)
3.5 x 2.5 x 2.5"
