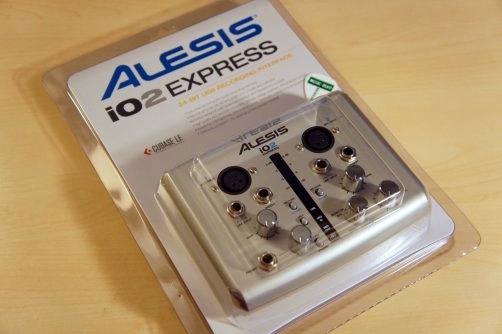

Alesis iO2 Express Audio Interface

A 24-bit USB recording interface.




The compact Alesis iO2 EXPRESS audio-recording interface is ideal for home studios and portable recording setups. The 2-channel USB interface for Mac and PC-based systems enables you to record at up to 24-bit resolution for input into virtually all DAW, recording, and performance software. The Alesis i02 EXPRESS recording interface is small enough to comfortably fit into your mobile recording rig, laptop bag, or backpack, yet it contains high-quality components and circuitry suitable for the studio. Flexible recording and playback The i02 EXPRESS interface's discrete-design preamplifiers and true 48-volt phantom power ensure that you capture microphones' complete signal. High quality analog-to-digital and digital-to-analog converters ensure that every detail of your session or performance gets recorded – and played back on your monitoring system. It's class compliant, so you can use the plug-and-play Alesis iO2 EXPRESS with virtually any computer. The iO2 EXPRESS is USB bus powered so you won't need to carry a bulky power supply, and its performance is optimized for minimal laptop battery drain so you'll be able to track long sessions and gigs remotely. Complete iO The iO2 EXPRESS has 2 input channels. Each channel has an XLR microphone input, a 1/4" TRS insert for external effects units, and a 1/4" TS jack that works with line-level sources and can accommodate direct connection of guitars. The Alesis iO2 EXPRESS sends and receives 2 audio channels on a single USB cable for simple, universal interface. You can monitor your sessions on any studio monitoring or other loudspeaker system via dual 1/4" balanced outputs. For remote tracking and alternative playback, the iO2 EXPRESS has a 1/4" TRS headphone output. The iO2 EXPRESS features traditional MIDI In and Out jacks for playing and controlling software with keyboard and pad controllers, workstations, and other MIDI-compatible instruments. Level management Each channel has a gain trim control, and there's a master level control for optimal gain staging. When monitoring on headphones, you'll appreciate the dedicated volume control. You can also visually monitor levels and operation using the tricolor, stereo metering tree and lighted status indicators. Complete the package The Alesis iO2 EXPRESS comes complete with a copy of Steinberg Cubase LE digital audio workstation (DAW) software. Cubase is one of the most popular DAWs in the world thanks to its intuitive approach to composing, recording, editing, and mixing. In addition to the included software, the Alesis iO2 EXPRESS is compatible with virtually all audio and MIDI software.
Alesis iO2 Express Audio Interface Features:

2-channel computer audio recording interface
Record up to 24-bit/48kHz audio into virtually any software
Monitor sessions with balanced studio monitor and headphone outputs
High-quality A/D and D/A converters, discrete-design preamps, 48V phantom power
Inputs for microphones, line-level sources, and instruments including guitars
Tricolor stereo level meter and lighted status indicators for visual monitoring
MIDI Input and Output jacks for playing and controlling software instruments
USB bus powered – no external power supply needed Includes:
iO2 EXPRESS interface
USB cable
Software CD

Alesis iO2 Express Audio Interface Includes:

iO2 EXPRESS interface, USB cable, Software CD

Get a recording interface that goes where you go!
Alesis iO2 Express Audio Interface Specifications:


SYSTEM REQUIREMENTS
Mac: OS X 10.2+
Windows: XP, Vista, or 7
USB port FREQUENCY RESPONSE
MIC/LINE IN to USB OUT: ±0.1dB
MIC/LINE IN to MAIN OUT (through ADC/DAC) ±0.35dB SIGNAL-TO-NOISE RATIO (SNR)
MIC/LINE IN (balanced) to INSERT OUT: 110dB A-weighted, input impedance at XLR or 1/4" jack = 600 ohms
GUITAR IN (unbalanced) to INSERT OUT: 99dB A-weighted, input impedance at 1/4" jack = 600 ohms
MIC/LINE IN (balanced) to USB OUT: 99dB A-weighted, input impedance at MIC or LINE jack = 600 ohms
GUITAR IN (unbalanced) to USB OUT: 94dB A-weighted, input impedance at 1/4" jack = 600 ohms
MIC/LINE IN (balanced) to MAIN OUT (through ADC/DAC): 97dB A-weighted, input impedance at MIC or LINE jack = 600 ohms
MIC/LINE IN (balanced) to MAIN OUT (through direct monitor): 95dB A-weighted, input impedance at MIC or LINE jack = 600 ohms TOTAL HARMONIC DISTORTION + NOISE (THD+N)
MIC/LINE IN (balanced) to INSERT OUT: <0.001% Input Gain = minimum, 1KHz input signal, INSERT OUT = 5.7dBV
GUITAR IN (unbalanced) to INSERT OUT: 0.034% Input Gain = minimum, 1KHz input signal, INSERT OUT = 5.3dBV
MIC/LINE IN (balanced) to USB OUT: 0.003% Input Gain = minimum, 1KHz input signal, USB OUT = -0.3dBFS
GUITAR IN (unbalanced) to USB OUT: 0.034% Input Gain = minimum, 1KHz input signal, USB OUT = -0.7dBFS
MIC/LINE IN (balanced) to MAIN OUT (through ADC/DAC): 0.005% Input Gain = minimum, 1KHz input signal, MAIN OUT = 5.6dBV
MIC/LINE IN (balanced) to MAIN OUT (through direct monitor): 0.006% Input Gain = minimum, 1KHz input signal, MAIN OUT = 5.6dBV
