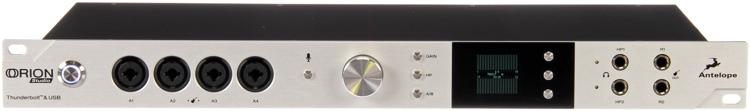

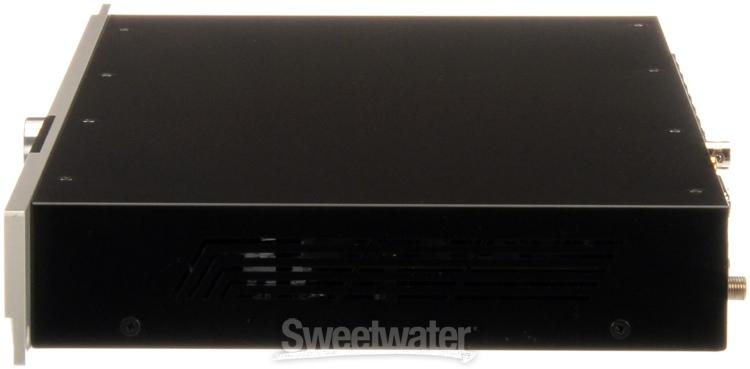

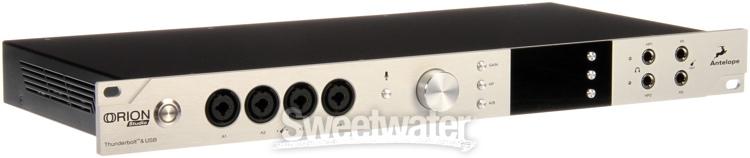

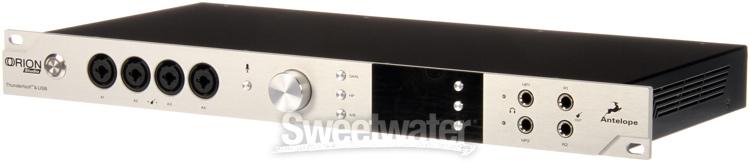

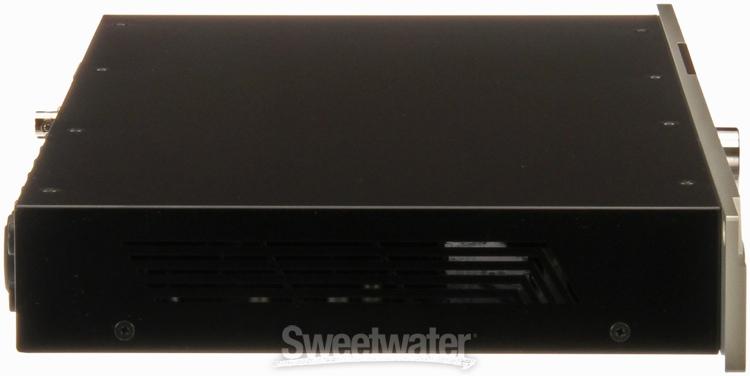

Antelope Audio Orion Studio

A Powerful Hub for Your Studio
Antelope Audio took the best features of their acclaimed Zen Studio and Orion, improved the sonics, tweaked out the feature set, and loaded it all in a sleek 1U chassis. The cutting-edge Orion Studio interface/converter boasts 12 high-end mic preamps as well as onboard DSP that powers an arsenal of effects, such as AuraVerb, an amazing hardware-grade reverb. Antelope's Thunderbolt circuit delivers vanishingly low latency without defeating Mac OS power management, which keeps computer fan noise low in recording situations. Orion Studio features two mastering-grade monitor outs with front-panel A/B switching; ADAT, S/PDIF, and word clock I/O; and the latest generation of Antelope's software control panel software.





Watch Orion Studio Overview
Watch Product Overview




Antelope Audio Orion Studio at a Glance:

Unmatched sonics, latency, and I/O
Harness the power of onboard DSP
Cutting-edge clocking and signal routing
Ultra-fast conversion lets you monitor FX in real time

Unmatched sonics, latency, and I/O
Don't be fooled by its slender form factor; Orion Studio is a top-notch professional tool with unmatched sonics, designed and built without compromise. With both Thunderbolt and USB connectivity, Orion Studio can process 192kHz audio at ludicrous speed (we're talking 100uS round-trip delay). What's more, Orion Studio features 12 high-end microphone preamps, 16 analog outputs, a duo of mastering-grade monitor outs, two hardware inserts, two re-amp outputs, and a talkback mic.
Harness the power of onboard DSP
Antelope Audio fitted the Orion Studio with their proprietary DSP engine, which they optimized to run custom equalization, compression, and reverb plug-ins. This potent processing arsenal includes Antelope's new AuraVerb, as well as other effects to be released - all included at no additional cost. Antelope's beefy DSP engine is built on a field-programmable gate array IC with mammoth parallel-processing capability, which lets you enjoy rapid simultaneous processing of multiple effects, accelerating your workflow like you won't believe.
Cutting-edge clocking and signal routing
Orion Studio comes with the latest generation of Antelope's software control panel for Mac OS X and Windows. It's easy to operate, giving you a color-coded routing matrix with four independent mixers and smart integration of DSP effects. What's more, Orion Studio is fully supported by Antelope Audio's state-of-the-art 64-bit Acoustically Focused Clocking (AFC) jitter-management technology, which is found in top mastering facilities worldwide. Antelope's AFC delivers the most analog-sounding audio conversion we've heard here at Sweetwater.
Ultra-fast conversion lets you monitor FX in real time
Orion Studio's whiplash-quick conversion capability means you can monitor real-time effects during recording and mixing. Take Orion Studio's re-amping feature: it routes signals through two transformers, making it perfect for plugging in your guitar (or other instrument), and tweaking a selection of great-sounding effects - all while monitoring in real time! Orion Studio gives you a new level of performance in a value-packed, full-featured interface/converter.
Antelope Audio Orion Studio Features:

12 high-end mic preamps, 16 analog outputs
Integrated talkback microphone and headphone routing
2 mastering-grade stereo Monitor Outs with A/B switching
Onboard DSP Engine (includes new AuraVerb)
Antelope's superior AFC jitter-management technology
Latest generation of Antelope's software control panel:

Color-coded routing matrix with 4 independent mixers
Smart integration of DSP effects



Thunderbolt and USB
ADAT optical I/O (x 2)
S/PDIF I/O
Word clock I/O

Upgrade your studio with the Antelope Audio Orion Studio!


Tech Specs



Computer Connectivity
Thunderbolt, USB


Form Factor
Rackmount


Simultaneous I/O
32 x 32


A/D Resolution
24-bit/192kHz (max)


Analog Inputs
12 x XLR-1/4" combo, 2 x 1/4" TRS inserts


Analog Outputs
4 x 1/4" (monitor A, monitor B stereo outs), 2 x 1/4" (headphones), 2 x 1/4" (direct outs), 2 x DB25


Digital Inputs
1 x S/PDIF, 2 x Optical ADAT


Digital Outputs
1 x S/PDIF, 2 x Optical ADAT


Number of Preamps
12


Phantom Power
12


Clock I/O
1 x BNC in, 1 x BNC out


Rack Spaces
1U


Manufacturer Part Number
Orion Studio
