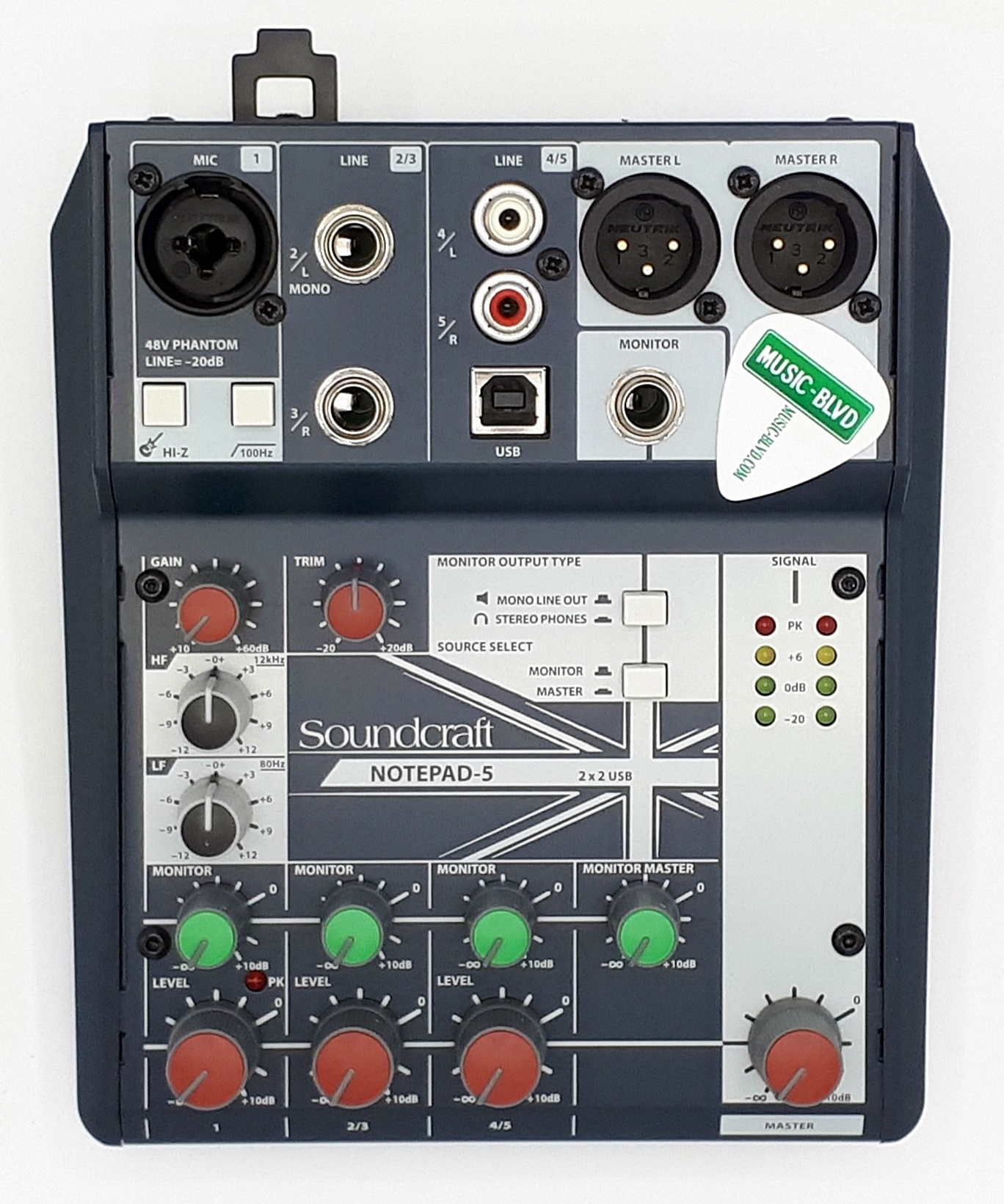

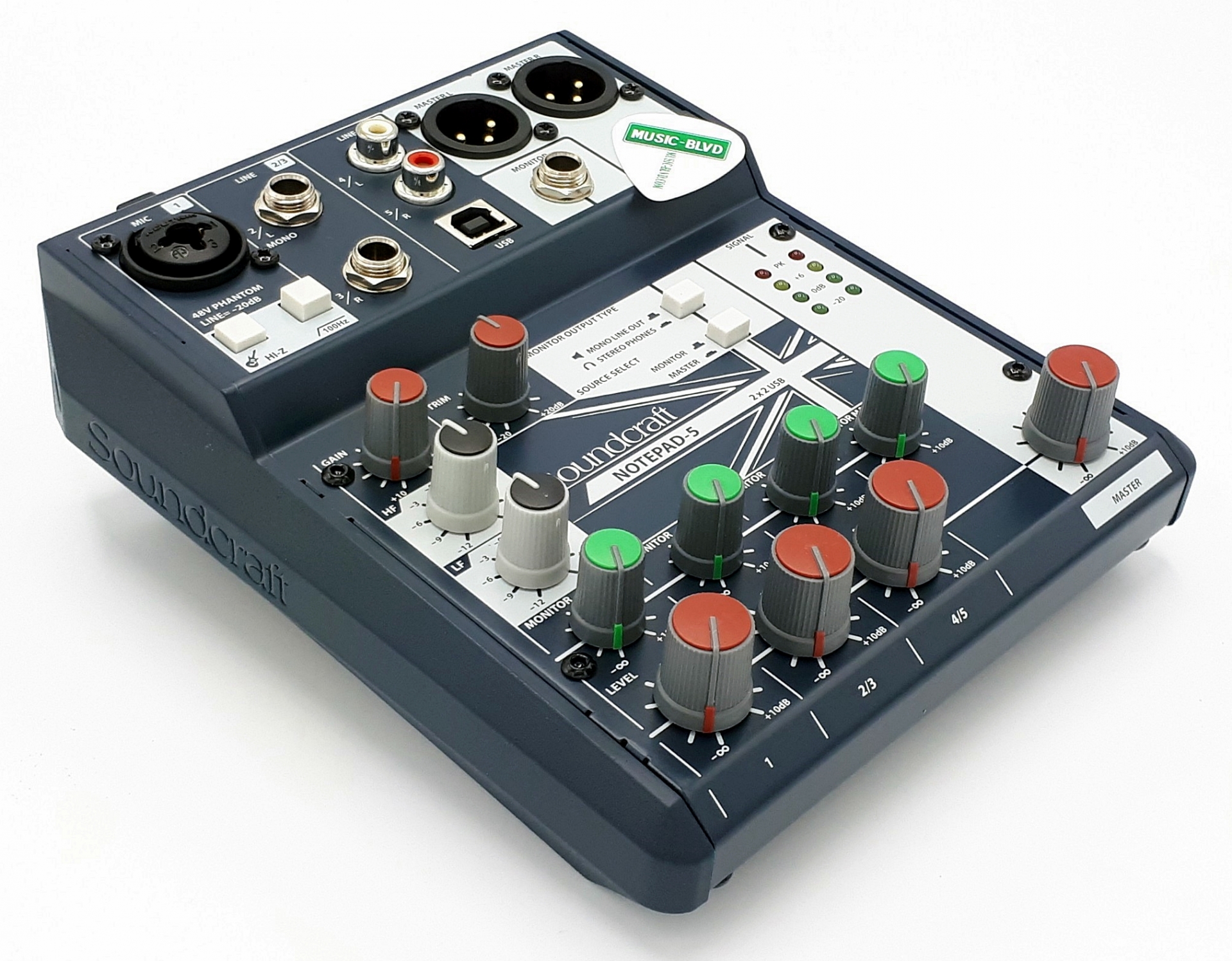

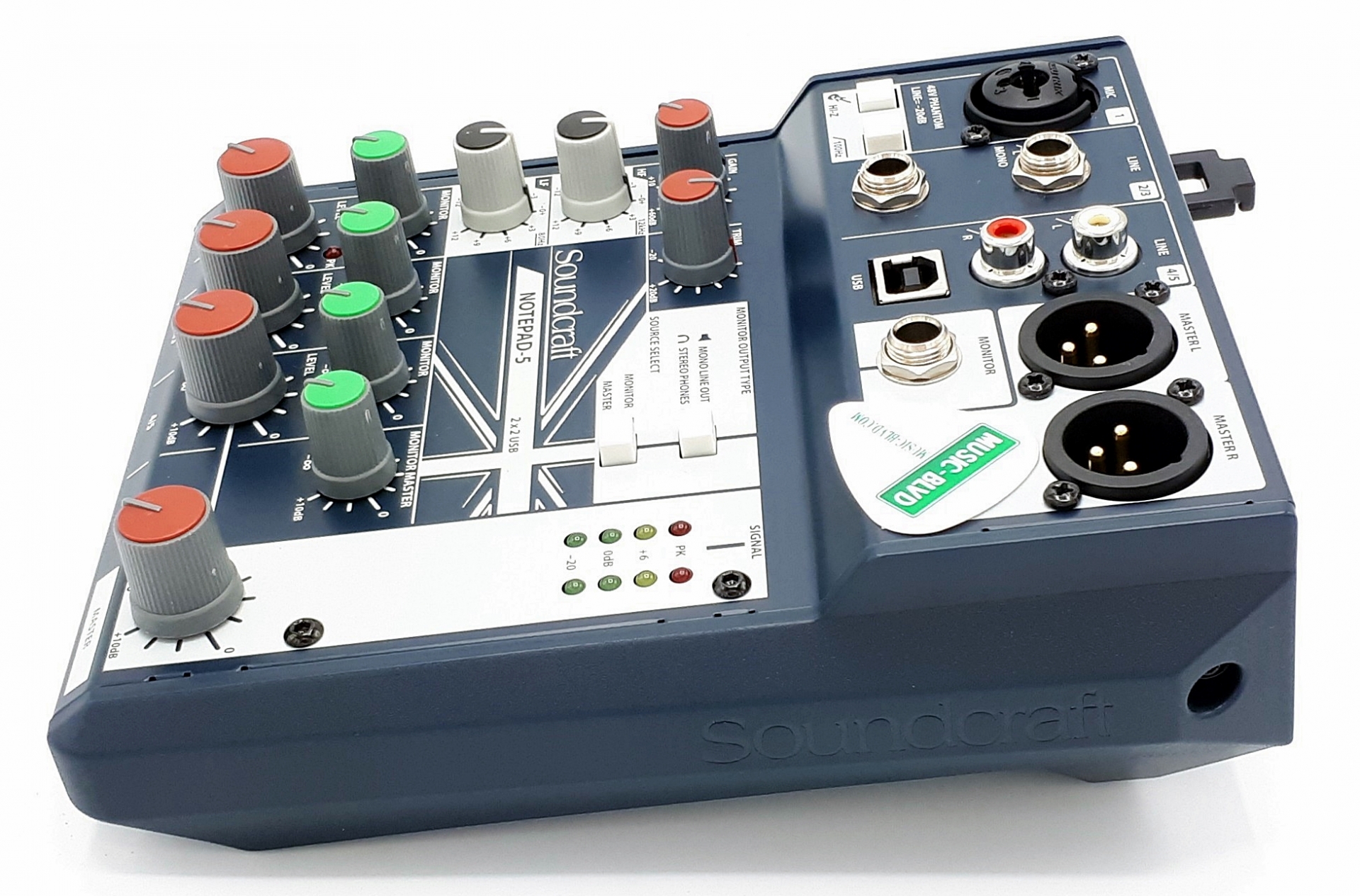

Soundcraft Notepad-5

Compact Mixer with Pro-grade Pre
From personal mixing to podcasting, Soundcraft's Notepad-5 delivers the quality and convenience you need in a compact and pocketbook-friendly fashion. With the inclusion of USB connectivity, the Notepad-5 lets you easily bring the sound Sweetwater expects from Soundcraft to the live stage and the home studio. The Notepad-5 includes one of their acclaimed microphone preamplifiers, which offers clear sound and tons of headroom — exactly what you need for voice-over work and other applications where your voice is the center of attention. It also includes a direct input, which lets you plug in your bass or guitar. Top it off with a 2-band EQ plus two stereo channels for your line-level gear, and the Notepad-5 is everything you could want in a mixer that's small enough to go anywhere.




Equipped with a versatile Soundcraft preamp
Sweetwater live sound engineers have long counted on Soundcraft to deliver clear sound onstage, and a lot of that has to do with their mic pres. While there's +48-volt phantom power onboard for your condenser mics, the high-headroom preamp included on your Notepad-5 delivers plenty of gain for even the most sluggish of dynamic microphones, with enough gain leftover to handle sudden level spikes that can sneak up on you onstage or in the studio.




USB delivers recording and performance possibilities
USB turns the Notepad-5 into even more of a mini-workhorse mixer, by providing a direct connection to your computer. This allows it to act as a USB audio interface, making it easy to record into your DAW.




Soundcraft Notepad-5 Compact Mixer Features:

Ultra-compact 5-channel mixer that's great for personal mixing and recording
Includes 1 microphone preamplifier with switchable phantom power, 100Hz highpass filter, hi-Z input, and 2-band EQ
Line-level inputs on 2 additional channels accommodate keyboards, playback devices, and consumer music gear
USB provides connectivity for recording and podcasting
Outputs include flexible monitoring options and balanced XLR main outs





Additional Media
Live Mixer Buying Guide


Tech Specs



Type
Analog Mixer with USB interface


Channels
5 x 2


Inputs - Mic Preamps
1 x XLR-1/4" combo


Inputs - Line
2 x 1/4", 2 x RCA


Outputs - Main
2 x XLR (master), 1 x 1/4" (monitor)


Headphones
1 x 1/4" (shared with monitor)


Phantom Power
Yes


EQ Bands
2-band EQ


Aux Sends
1 x monitor


Computer Connectivity
USB


USB
1 x Type B


OS Requirements - Mac
OS X 10.10 or later


OS Requirements - PC
Windows 7 SP1 or later (with Soundcraft driver)


Power Source
External power supply


Height
3.5"


Width
8.9"


Depth
10.2"


Weight
2.4 lbs.


Manufacturer Part Number
5085980US
