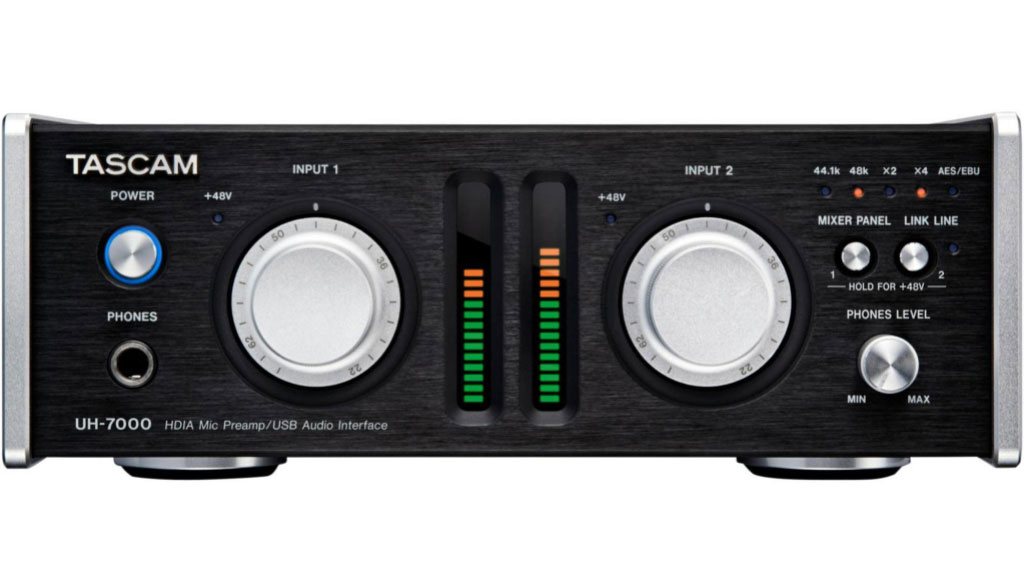

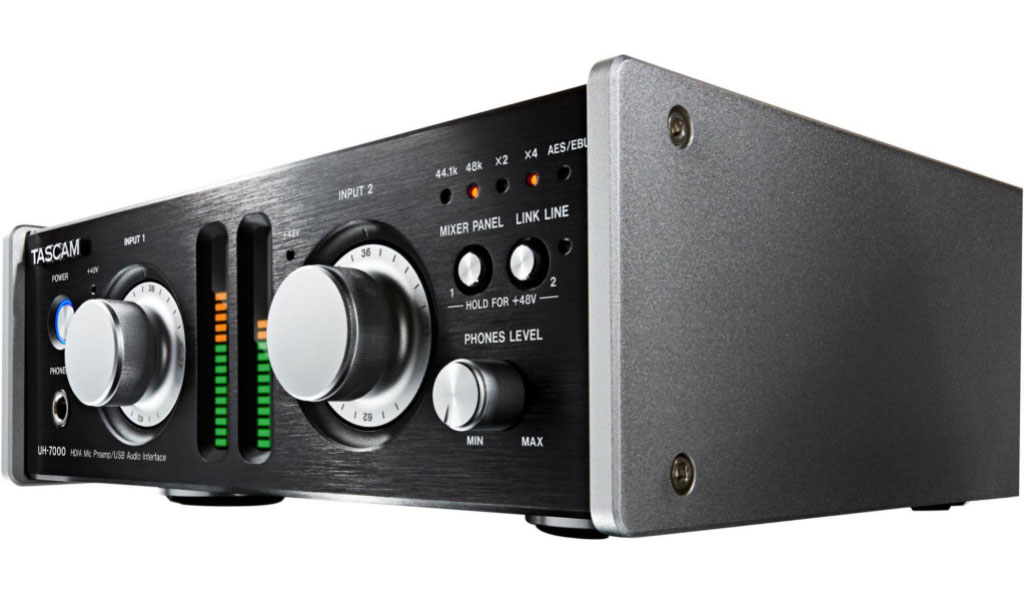

TASCAM UH-7000 High Resolution Interface and Stand Alone Microphone Preamp

High-end USB audio interface.

The UH-7000 is a pro-level microphone preamp and audio interface designed with a strong focus on low noise and high audio quality. Not only can this unit be used as a 4-in/4-out audio interface in a DAW production environment, but also as a standalone microphone preamp and A/D / D/A converter. The built-in HDIA (High Definition Instrumentation Architecture) microphone preamps perform at −128 dBu equivalent input noise, a signal-to-noise ratio of 117 dB and distortion of 0.0009 % or less. The grand nature of the UH-7000’s sound is partially due to the careful attention spent on selecting parts. In addition to Burr-Brown converters and metal thin-film resistors, installed is a powerful TCXO clock generator with a precision of ±1 ppm. The unit’s half-rack size makes it easy to install at a studio console or work desk. The thick aluminum panels used on the front and sides of the full-metal body help increase stability. Highly important but easily forgotten about are the smooth-tension aluminum input level knobs for precise level adjustments. The UH-7000 microphone preamp and audio interface enables composers, musicians and recording engineers to produce music in their private quarters at a level generally reached only in professional studios. Record confidently with the UH-7000 Dual-sided PCM4220 A/D converters capture your mic or line inputs at up to 192kHz/24-bit resolution. The temperature-compensated internal clock offers 1PPM resolution better than stand-alone clock generators that sell for twice the price, and limiting jitters for clean recordings. When monitoring and line output, the UH-7000 coerces your audio through a Burr Brown DA converter for fluid and honest sound reproduction. Even the highest quality microphone preamps are of no use if they dont have a sufficient power source behind them. Another crucial component of the UH-7000 is its audiophile-designed power supply. An extra-large power transformer and other factors guarantee that all internal components work to their full potential. Most competing interfaces fall short in this category. The unit itself is not only a figurative bridge between home and studio recording, but it is built like one too. With a solid aluminum structure, its easy to see that the UH-7000 means business. The knobs are meticulously calibrated for smooth, custom-tapered gain setting and the bright 20-segment LED peak meters accurately convey each channels true level. The device is equipped with (2) XLR balanced inputs with full +48V phantom power, (2) balanced 1/4 inputs, (2) balanced XLR outputs, and AES/EBU digital out. Work the fantastic preamps of the UH-7000 into your current recording/live setup, or plug this versatile interface into your computer and start recording. Stop treading water between two worlds, and take the bridge to studio-quality recording with the UH-7000 USB Interface and Stand-Alone Microphone Preamplifier.



Features

High-end 2-channel USB audio interface for Windows and Mac
Stand-alone high-end AD converter for monitoring or recording
High-performance mic preamp reduces influence of impedance mismatch
Superb audio quality with samling rates up to 192 kHz at 24-bit resolution
Ultra-high dynamic range of 123 dB (A/D) and 128 dB (D/A)
Professional-grade PCM4220 A/D and D/A converters from Texas Instruments
Selected components for outstanding sound quality with minimized noise and distortion
High-precision clock synchronization with sample-accuracy at both recording and playback
On-board DSP mixer and effects
Two selectable mixer modes
Mixer panel for intuitive mixing and effects handling on the computer screen
Dedicated button for opening/closing the mixer panel on the computer
Two large TRIM knobs for precise level adjustment
XLR and TRS balanced analogue inputs
Switchable 48-V phantom power on XLR inputs
XLR balanced line outputs
Line output level can optionally be adjusted with the headphones level control
Powerful headphones output with dedicated level control
AES/EBU digital I/O
Low-latency monitoring
Easy-to-read 20-dot LED level meter
Aluminum front and side panels for long durability even under tour conditions
Half-rack size



Order today for professional recording at home or in the studio,


UH-7000 High Resolution Interface and Stand Alone Microphone Preamp Specifications:

Audio resolution
Sampling frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit depth 24-bit

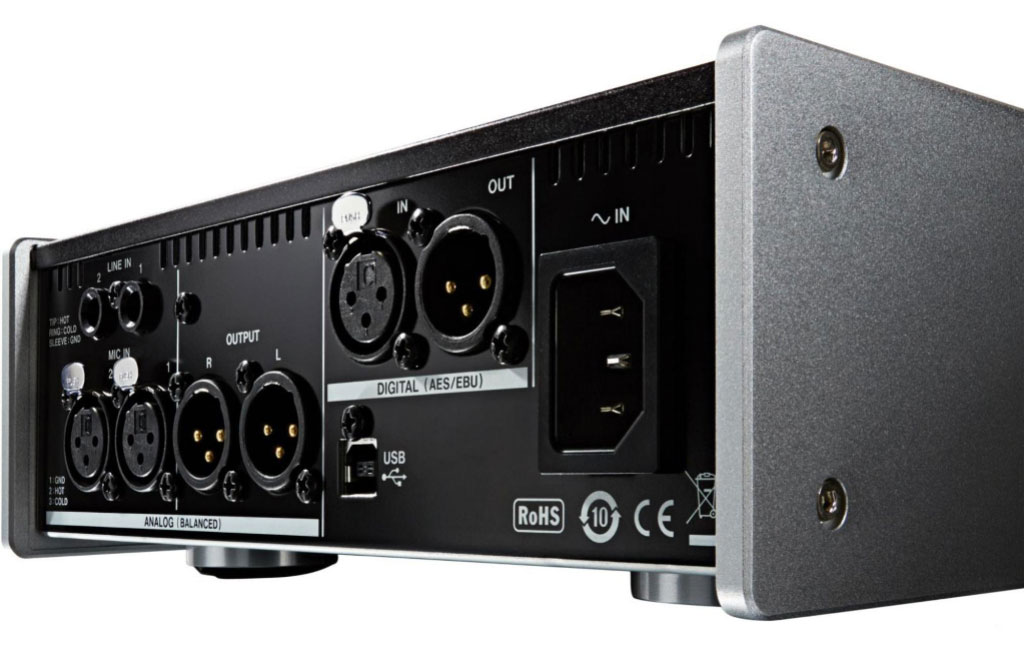

Analogue audio inputs and outputs
Line inputs (ANALOG (BALANCED) LINE IN 1/2) 6.3-mm standard TRS jacks
Input impedance 15 kOhm
Maximum input level +26.5 dBu
Minimum input level −38 dBu
Mic inputs (ANALOG (BALANCED) MIC IN 1/2) XLR-3-31 equivalent
Input impedance 2.2 kOhm
Maximum input level +2 dBu
Minimum input level −60 dBu
Line outputs (ANALOG (BALANCED) OUTPUT L/R) XLR-3-32 equivalent
Output impedance 100 Ohm
Maximum output level (INPUT knob at minimum) +24 dBu
Headphones output (PHONES) 6.3-mm standard stereo jack
Maximum output power 45 mW + 45 mW or higher (THD+N: 1% or less, 32 Ohm load)
Digital audio inputs and outputs
DIGITAL (AES/EBU) IN XLR-3-31 equivalent
Formats IEC 60958-3 (S/PDIF)
IEC 60958 for pro use (AES/EBU)
Sampling frequencies ×1: 44.1 kHz, 48 kHz
×2: 88.2 kHz, 96 kHz
×4: 176.4 kHz, 192 kHz
DIGITAL (AES/EBU) OUT XLR-3-32 equivalent
Formats IEC 60958-3 (S/PDIF)
IEC 60958 for pro use (AES/EBU)
Sampling frequencies ×1: 44.1 kHz, 48 kHz
×2: 88.2 kHz, 96 kHz
×4: 176.4 kHz, 192 kHz
Other inputs and outputs
USB 4-pin USB B-type
Transfer rate: USB 2.0 High Speed (480 Mbit/s), Full Speed (12 Mbit/s)
Audio performance
Equivalent input noise (EIN) –128 dBu (unweighted, 60 dB, 40 Ohm)
ADC dynamic range 123 dB (A-weighted)
DAC dynamic range 123 dB (A-weighted)
Frequency response, Mic preamp 20 Hz – 80 kHz, +0.005 dB/−0.16 dB (all Fs)
S/N ratio 117 dB (MIC to AD)
Distortion 0.0009 % (MIC to AD)
Computer system requirements
Windows
Supported operating systems Windows 8 (including 8.1) 32-bit
Windows 8 (including 8.1) 64-bit
Windows 7 32-bit SP1 or later
Windows 7 64-bit SP1 or later
Windows XP 32-bit SP3 or later
(Windows Vista and Windows XP 64-bit are not supported)
Computer hardware requirements Windows computer with a USB 2.0 port
CPU/speed: 2 GHz or faster dual core processor (x86)
Memory: 2 GB or more
Macintosh
Supported operating systems OS X Mavericks (10.9.1 or later)
OS X Mountain Lion (10.8.4 or later)
OS X Lion (10.7.5 or later)
Mac OS X Snow Leopard (10.6.8 or later)
Computer hardware requirements Apple Macintosh computer with a USB 2.0 port
CPU/speed: 2 GHz or faster dual core processor
Memory: 2 GB or more
Supported audio drivers ASIO 2.0, WDM (MME)
Core Audio
Power supply and other specifications
Power supply AC 100–240 V, 50/60 Hz
Power consumption 15 W
Dimensions (W × H × D) 214 mm × 81 mm × 233 mm
Weight 2.2 kg
Operating temperature range 5–35 °C
