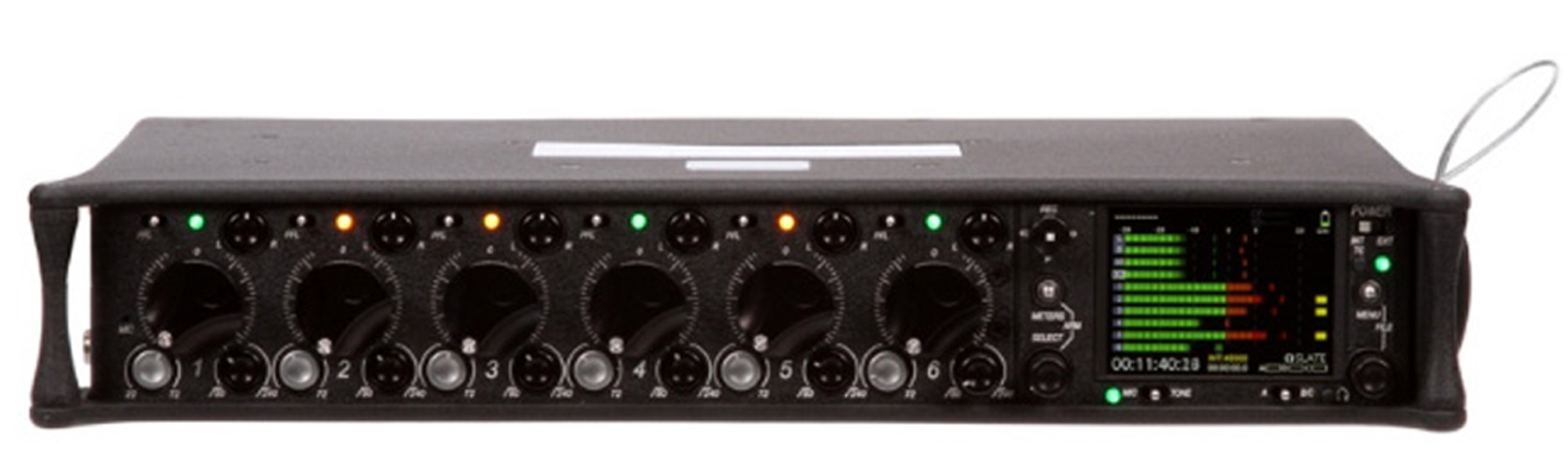

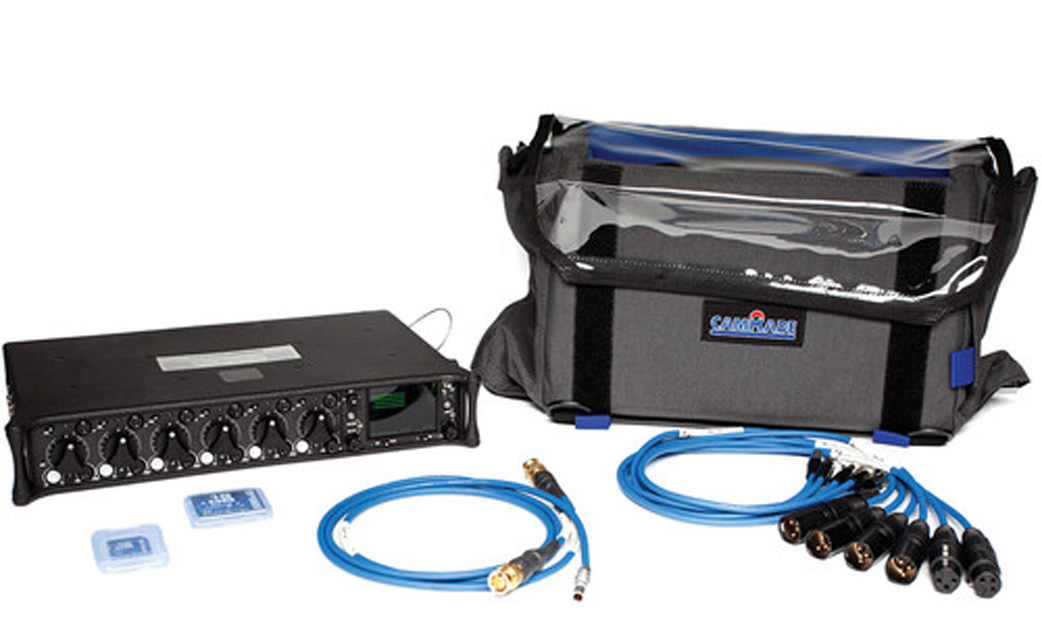

Sound Devices 664

Quality 6-channel Field Mixer
Hit the field with the Sound Devices 664. This high-performance portable audio mixer and recorder is perfect for both basic and complex production setups. There are six microphone preamplifiers onboard, each with its own limiter, highpass filter, and direct output. From there, the three sets of balanced master outputs give you a wide range of connectivity flexibility. If you need to capture audio directly, there's a built-in SD/CF recorder that can record industry-standard WAV files or basic MP3s. For total field freedom, the 664 can be powered by five AA batteries.
Sound Devices 664 Portable Production Mixer and SD Recorder at Glance:

Six preamplifiers with individual limiters and highpass filters
Records to SD and CF media
Designed to withstand extreme weather and climate

Six preamplifiers with individual limiters and highpass filters

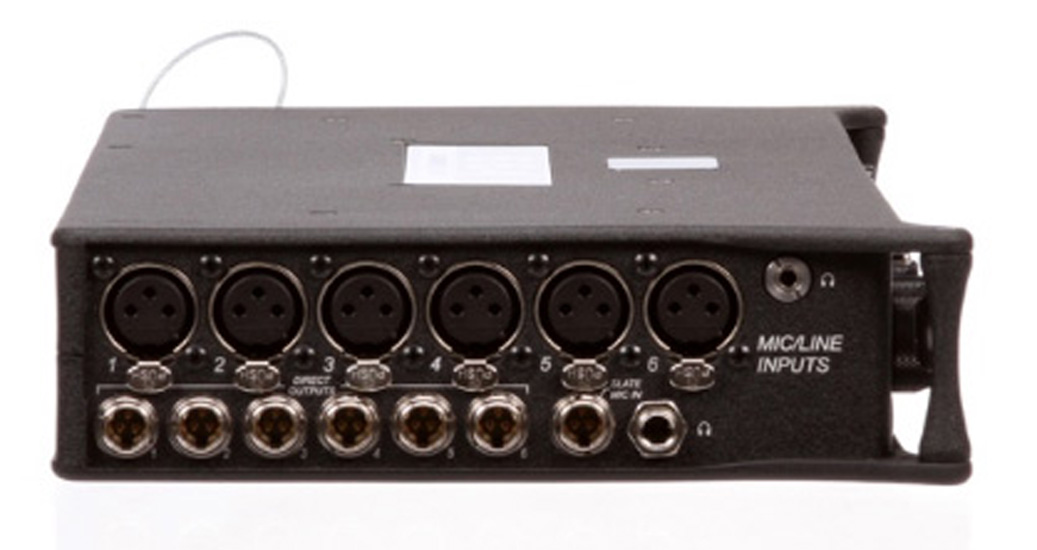

The 664 features six transformer-balanced microphone inputs with significant gain and headroom. Each input accepts sources of various types and levels, and each has its own limiter, sweepable highpass filter, and pre- or post-fade direct output. The 664 has a fully integrated Ambient Lockit generator and reader for those who need a time code.
Records to SD and CF media
The 664 has an integrated 2-track, digital audio recorder that writes industry-standard Broadcast Wave files to SD and CF media. A simple joystick controller is used to take command of recording functions. Just push up to begin recording either WAV or MP3 files. Files can be either 24- or 16-bit, with WAV files having sampling rates up to 48kHz.
Designed to withstand extreme weather and climate
The 664, like all of Sound Devices' professional audio products, is designed to withstand the physical and environmental extremes of field production. The 664 uses molded, metallized carbon fiber top and bottom chassis panels for increased durability and weight reduction. Additionally, its front panel is gasketed for improved resistance to moisture.
Sound Devices 664 Portable Production Mixer and SD Recorder Features:

6 high-performance microphone inputs with 2-stage gain control, limiter, variable highpass, and solo monitoring
Pre- or post-fader direct outputs per input
Multiple, balanced output connections
AES/EBU output option

Integrated digital recorder with simple control records to SD or SDHC media

Time code via a fully integrated Ambient Lockit generator and reader
Flexible metering modes, including zoom metering for high precision near 0dBFS

Voice-confirmation appears in headphones for critical operational information and when navigating the Setup Menu

Lightweight design uses metallized, molded carbon fiber top and bottom panels for durability and strength
Front panel is gasketed for protection from weather

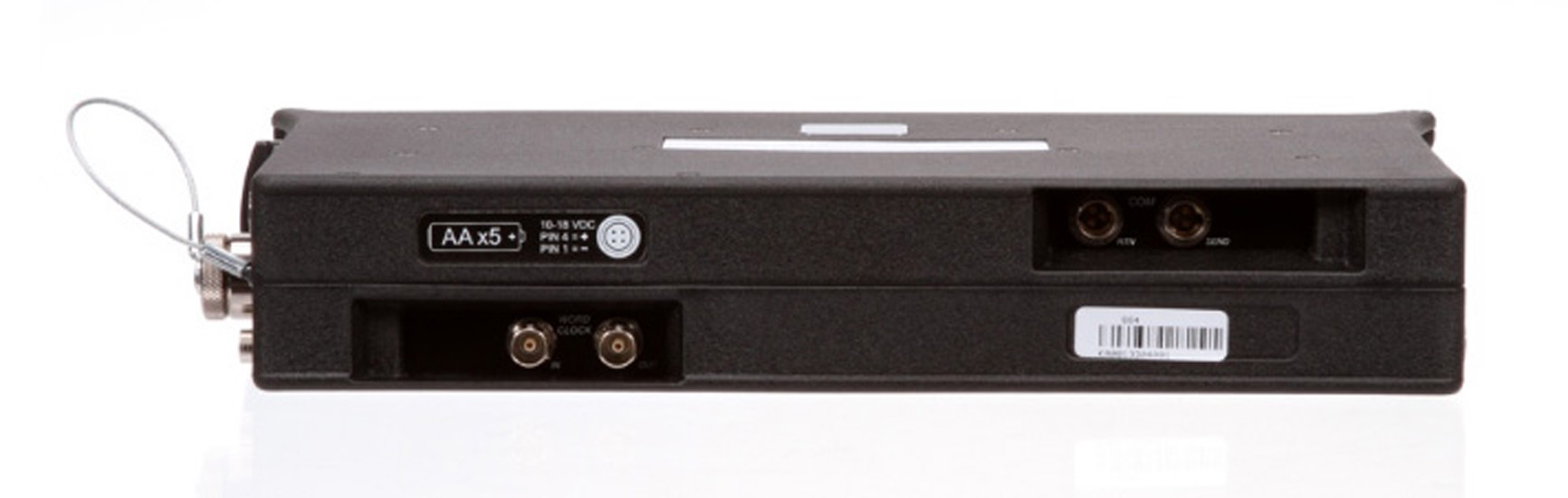

Powered by five AA batteries or external 10-18 VDC

Hit the field with the flexible 10-channel Sound Devices 664 mixer and SD recorder!


Tech Specs



Type
Analog


Channels
6


Inputs - Mic Preamps
6 x XLR (Mic/Line)


Inputs - Line
6 x XLR (Mic/Line)


Inputs - Other
No Other Inputs

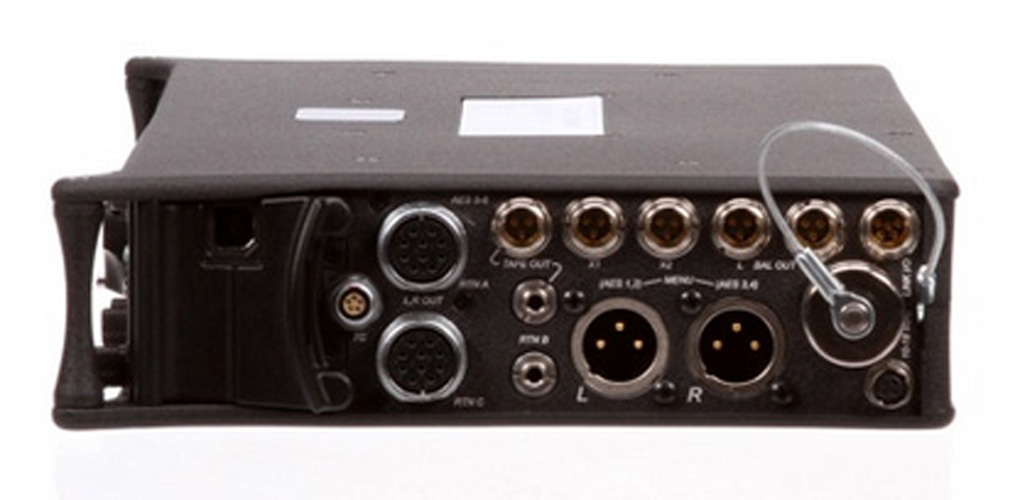

Outputs - Main
2 x XLR, 2 x Hirose 10-pin, 2 x TA3


Outputs - Direct
5 x TA3


Outputs - Other
2 x AES/EBU (XLR), 1 x 1/8" (Mono Mic Out), 1 x 1/8" (Tape), 1 x TA3 (Tape)


Headphones
1 x 1/4", 1 x 1/8"


Send/Return I/O
No Send/Return I/O


Phantom Power
Yes


EQ Bands
No EQ


Aux Sends
No Aux Sends


Busses/Groups
No Bus or Groups


Faders
No Faders!


Channel Inserts
No Channel Inserts


Effects
No Effects


Talkback
No Talkback


Computer Connectivity
No Computer Connectivity


Rackmountable
No


Height
2.1"


Depth
7.8"


Width
12.6"


Weight
4 lbs. 12 oz.


Manufacturer Part Number
664
