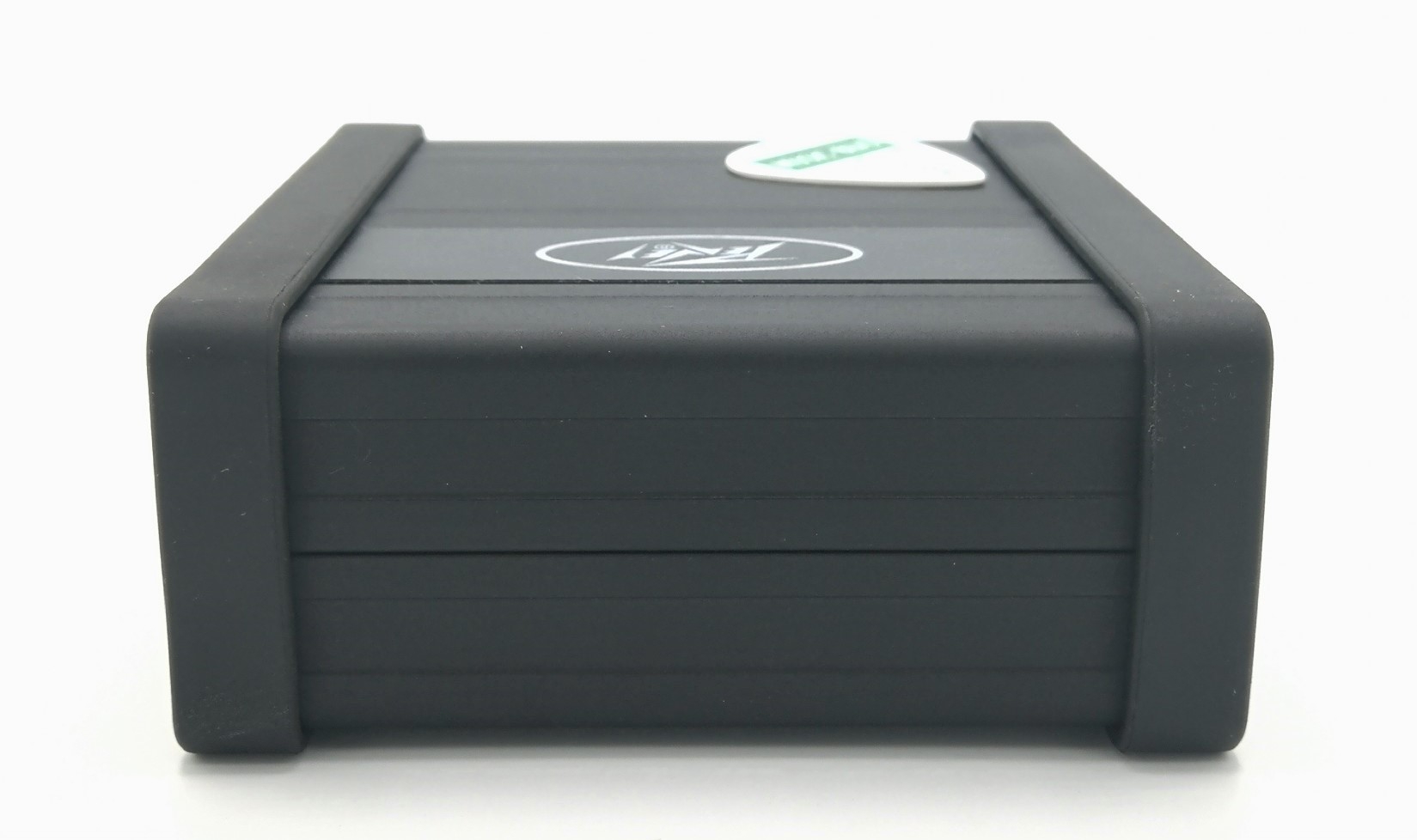

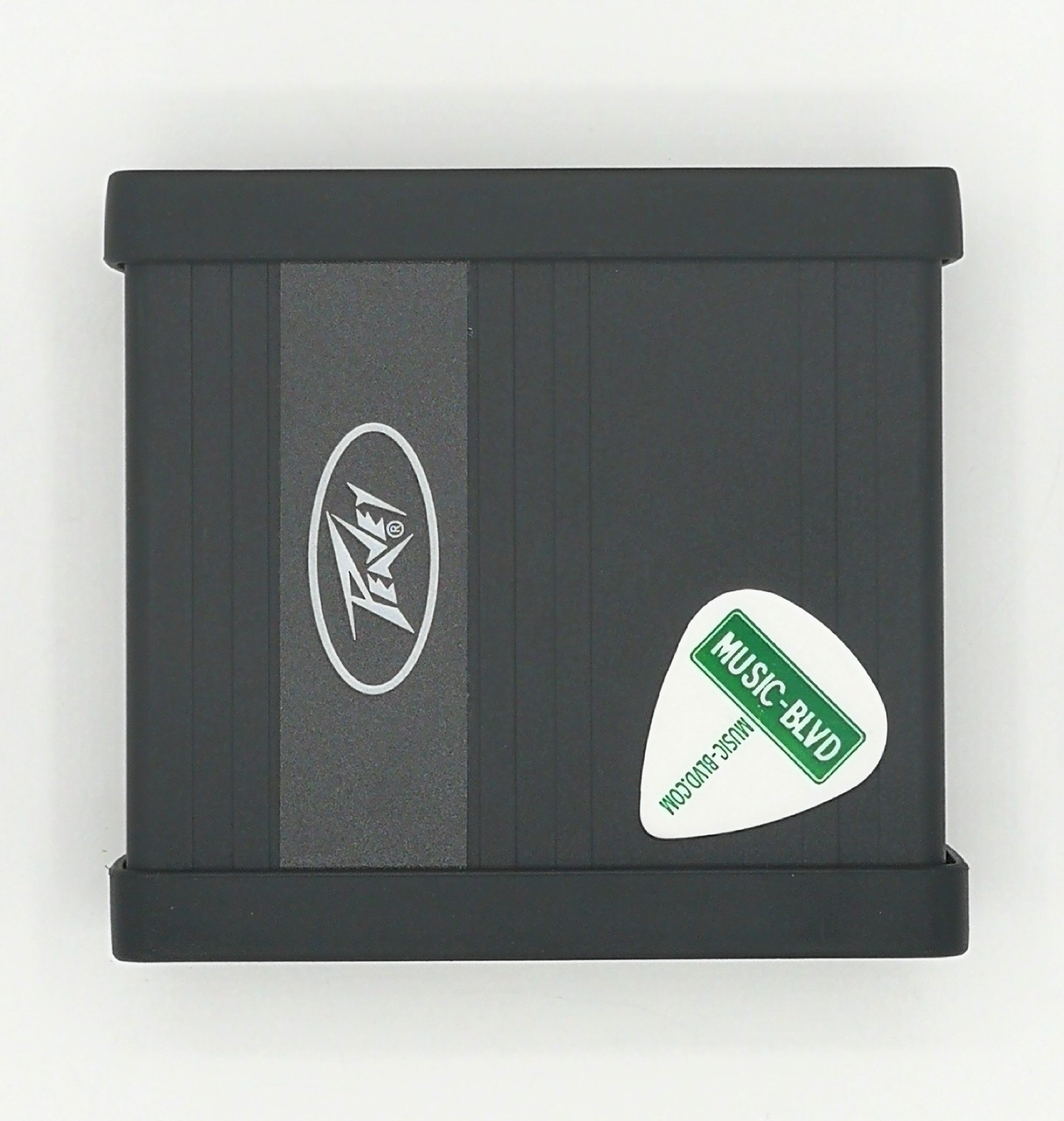

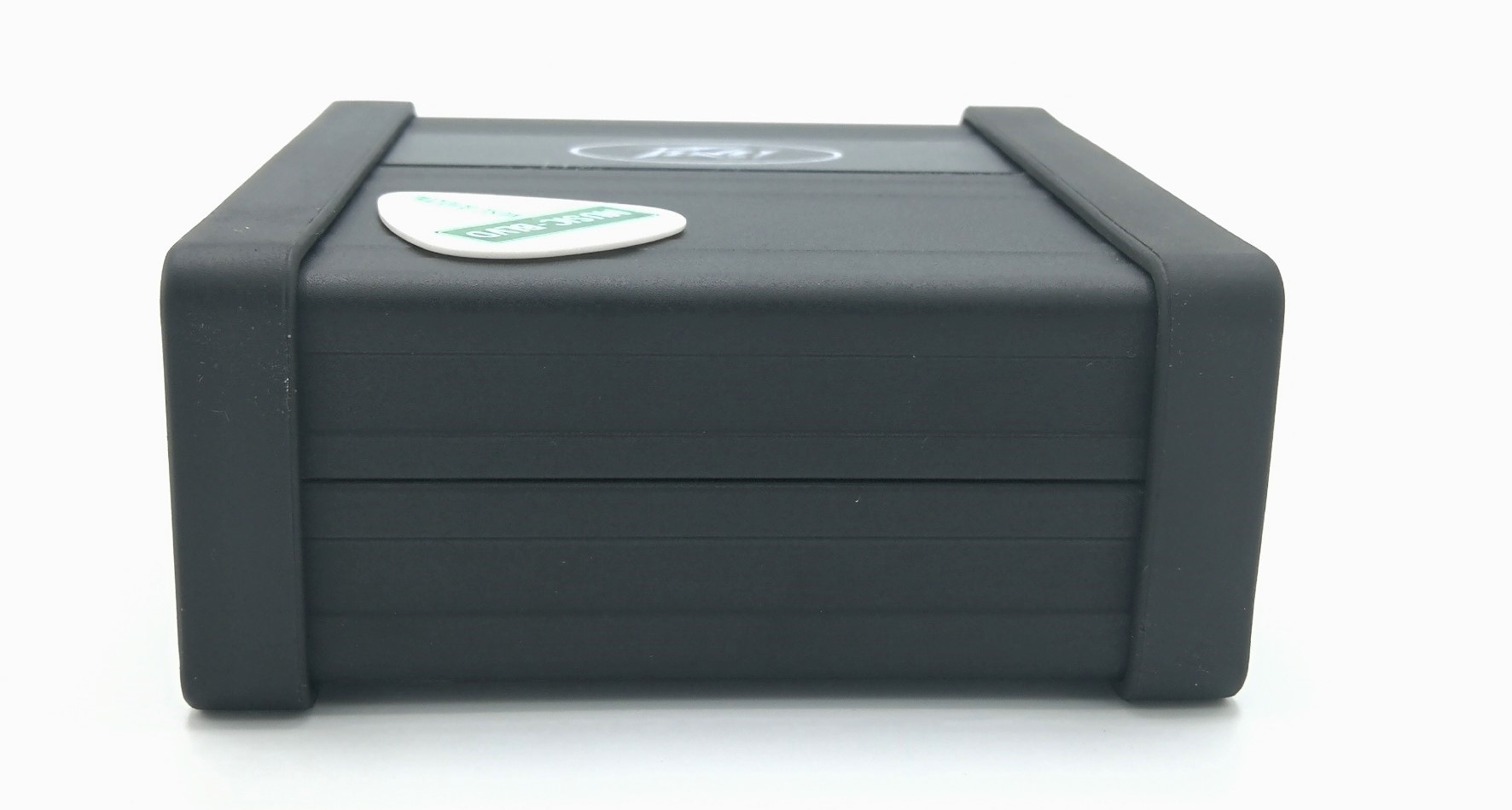

Peavey USB-P USB DI/Format Converter

USB DI box connects a computer to a live sound system.
The Peavey USB-P, a USB DI box / format converter with transformer-isolated balanced stereo outputs enables you to run stereo audio from a computer into a live sound system. Connecting a computer to a sound system is often a challenge. Ground loops are often a problem when connecting computer audio to a sound system. The problem gets worse if there is a projector connected to the computer. The USB-P DI box works well whether the computer is located near the console or on stage. As the name implies, the USB DI box connects to the USB port of the computer and appears as a stereo output device. Depending on your computer operating system, you may need to select the USB audio device for output on the program you are using. The dual transformers in the Peavey USB-P format converter provide the balanced outputs and ground isolation required when interfacing a computer to a sound system.


FEATURES

Standard USB audio Device
Transformer Isolation
Ground Lifted balanced outputs
Playback only
USB powered
Switch for Stereo or Mono output operation
Rugged construction


SPECIFICATIONS


USB B type connector

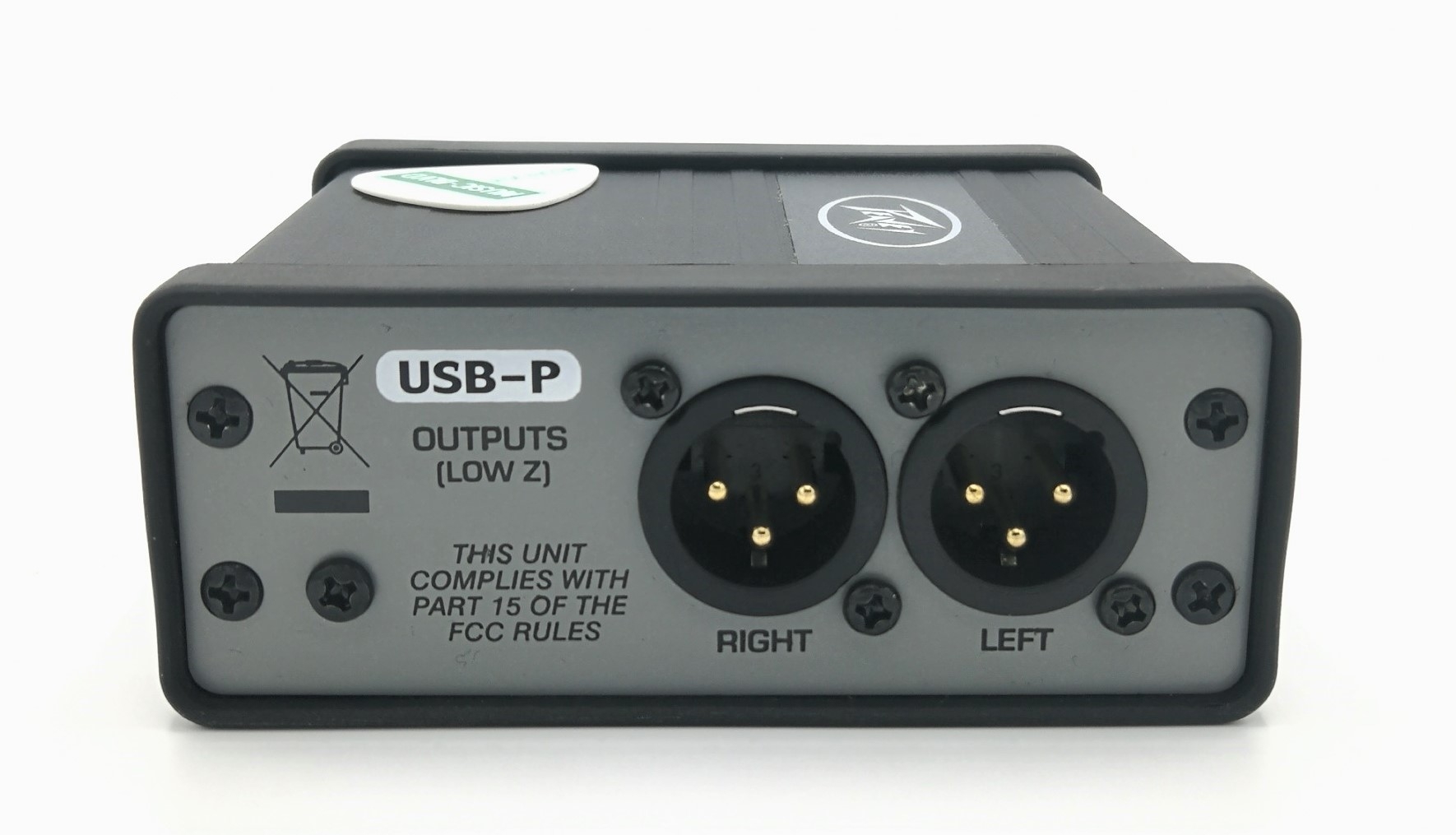

Left and right XLR outputs
Stereo/mono switch
Frequency Response: 20Hz to 20kHz ±1 dB
THD + Noise: < .015% @ 1 kHz, -9 dBu full scale output into 10k ohmHum and noise: < 89dB below full scale outputOutput level: -9dBu Full scale into 10k ohm line input; -13 dBu full scale into 2k ohm mic input
Ground lift: The ground lift is always engaged on the XLR outputs
Power: Power is provided by the USB connection
Dimensions: 1-5/8"H x 4"W x 4"D inches (41 x 104 x 104mm)
Weight: 10 oz. (0.29 kg)


Shipping weight 2 lbs.
