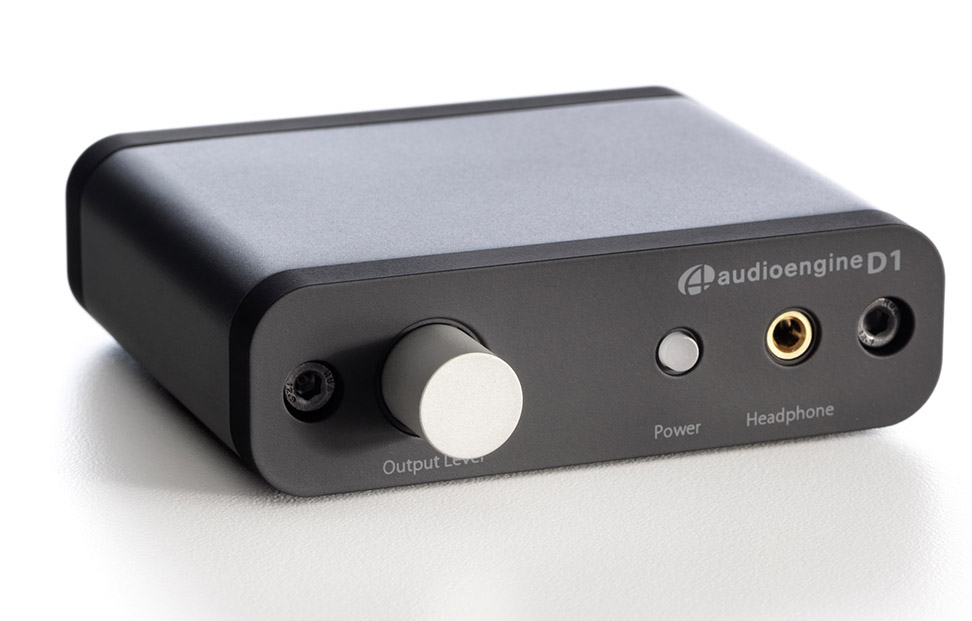

Audioengine D1 Premium 24-bit DAC

Audioengine D1 Premium 24-bit DAC
Audioengine D1 Premium 24-bit DAC (digital-to-analog converter) allows you to bypass your computer's soundcard or headphone output and send audio through USB or optical. D1 is the perfect digital interface between your computer and music system and will improve the sound of ALL your music.
Features


Desktop or portable digital-to-analog convertor
Mac or PC plug-and-play, no drivers to install
High-performance headphone amp included
USB and optical inputs
USB-powered, no separate power supply needed
Stream bit-perfect HD audio with low jitter
Based on high-performance AK4396 DAC


Works With


Any computer (Mac or PC)
Headphones
Apple TV or any product with optical outputs
Powered speakers
Any audio system with mini-jack or RCA inputs


What's in the box


(1) D1 DAC
(1) USB cable, 2ft (0.6m)
(1) Microfiber product bag
(1) Setup guide
(1) Product line brochure


DAC type


Dual Mode USB and Optical (SPDIF)


Inputs


USB/Optical (SPDIF)


Outputs


RCA stereo/3.5mm headphone


D/A converter AKM4396
Optical receiver CS8416
USB controller TI1020B
USB device class Type 1.1 or above
Full-scale output 2.0V RMS
Output impedance 10 ohms
Power source USB 5V
Power requirements5V DC, 200mA
USB power filtering 2-stage redundant regulation
SNR (DC to 20 kHz) >110dB
THD+N (1kHz FS 96kS/s) <0.0025%
Crosstalkb -85db
USB transfer mode Asynchronous (dual clock)
Frequency response 10Hz - 25KHz (+/- 0.5dB)
Input bit depth 16 bit, 24 bit
Input sample rate (USB)


32kHz-96kHz - native playback
188.2kHz, 192kHz - re-sampled to 96kHz for playback


Input sample rate (optical) 32kHz-192kHz - native playback
Product dimensions 3.5x4x1"
Shipping weight 1.0lbs (0.5kg)
Environmental


Operating Temperature: 32 to 95 degrees F
Non-operating Temp: -4 to 113 degrees F
Relative Humidity: 5% to 95% non-condensing


Included accessories


USB cable, 2ft
Setup Guide
Microfiber bag



D1 USB
The D1 utilizes the TI1020B USB controller, widely recognized as a standard for higher-end USB audio products. The D1 is powered directly from the USB bus and USB power is passed through two stages of regulation to ensure high stability and low noise.
D1 DAC
The D1 uses the AK4396 DAC, well regarded for its low noise and high fidelity. Due to the high signal-to-noise specs of the AK4396 and the added benefit of double redundancy power source conversion and filtering, the D1 presents impressive low noise and low distortion characteristics.
D1 Headphone
The D1 includes a headphone amp based on the TI OPA2134 low noise opamp. This headphone amp is able to provide low-impedance, high-fidelity audio to a wide range of headphones and supports headphones with impedance as low as 20 ohms
