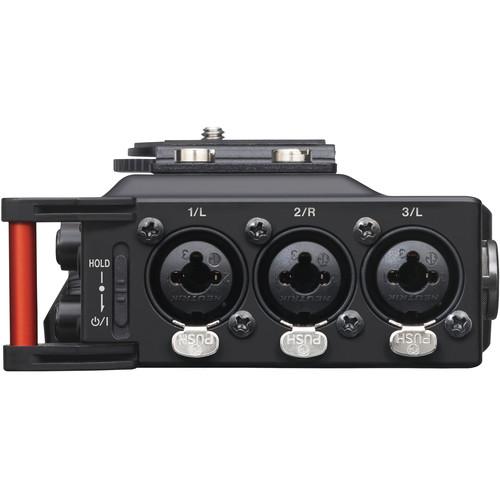

DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras

Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.
Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio.

Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way

Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take

Dual record function captures a safety track to have a backup in case of distortion

Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth

BWAV format capture for NLE compatibility

Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording

Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor

Records to SD/SDHC/SDXC media

Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera

Slate function records a tone for precise synchronization between DR-70D and camera audio in post

4-track recording records from four XLR microphone inputs

Built-in omnidirectional microphones allow you to record without packing mics

Runs on 4 AA batteries

Specification:

Recording Media

Media
SD card (64 MB to 2 GB)SDHC card (4 to 32 GB)SDXC card (48 to 128 GB)

Recording Format

Recording Format
WAV & BWF 44.1 to 96 kHz, 16/24-bit

Channels

Number of Channels
4 channels (2x stereo or 4x mono)

XLR Inputs

Connector
4x Combo XLR/TRS Connectors (1: Ground, 2: Hot, 3: Cold)

Input Impedance
Mic/Mic + Phantom Power: 2 kOhmsLine: 10 kOhms or more

Phantom Power
48 V +/-4 V(10 mA/CH), 24 V +/-4 V(10 mA/CH)

Input Level
Mic/Mic + Phantom Power: 0 dBu standard, -72 dBu maximumLine: +4 dBu standard, +20 dBu maximum

Mic Input
Mic Input Gain: +11 dB (low), +51 dB (High), +64 dB (Hi + Plus)

Stereo Mini Input

Connector
1/8" (3.5 mm) stereo mini jack (this connector can be supplied plug-in power)

Input Impedance
10 kOhms

Input Level
Minimum Input Level: -50 dBVMaximum Input Level: +10 dBV

Input Gain
Mic Input Gain: +3 dB (Low), +26 dB (High), +38 dB (High + Plus)

Camera In

Connector
1/8" (3.5 mm) stereo mini jack

Input Impedance
10 kOhms

Input Level
Standard Input Level: -10 dBVMaximum Input Level: +6 dBV

Audio Output

Line Output
Connector: 1/8" (3.5 mm) stereo mini jack Output Impedance: 200 ohmsStandard Output Level: -10 dBVMaximum Output Level: +6 dBV

Camera Out
Connector: 1/8" (3.5 mm) stereo mini jack Output Impedance: 200 ohmsStandard Output Level: -40 dBVMaximum Output Level: -24 dBV

Headphone Output

Connector
1/8" (3.5 mm) stereo mini jack

Maximum Output Level
20 mW + 20 mW

USB

Connector
Micro-B type

Format
USB 2.0 High Speed mass storage class

Remote

Input
2.5 mm TRS jack (remote sold separately)

Power

Power Source
4x AA batteries (Alkaline or Ni-MH)USB Bus powerOptional AC AdapterOptional Battery pack

Power Consumption
5 W

Audio Performance

Frequency Response
20 Hz to 20 kHz +0.5/-2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA)20 Hz to 40 kHz +0.5/-3 dB(LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA)

Distortion
0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1/48/96 kHz, JEITA)

Signal to Noise Ratio
92 dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1/48/96 kHz, JEITA)

Equivalent Input Noise
-120 dBu or less

Compatibility

Windows
OS: XP, Vista, 7, 8, 8.1CPU: Pentium 300 MHz or betterRAM: 128 MB or moreUSB: 2.0 recommended

Mac
OS: OS X 10.2 to 10.9CPU: Power PC, iMac, G3, G4, 266 MHz or more RAM: 64 MB or moreUSB: 2.0 recommended

General

Operating Temperature
32 to 104°F (0 to 40°C)

Dimensions (W × H × D)
6.65 x 2.2 x 4.2" (169 x 55.2 x 106.5 mm), with top adapter attached

Weight
With Batteries: 1.37 lb (625 g)Without Batteries: 1.16 lb (530 g)

Packaging Info

Package Weight
1.95 lb

Box Dimensions (LxWxH)
10.6 x 8.1 x 4.3"
