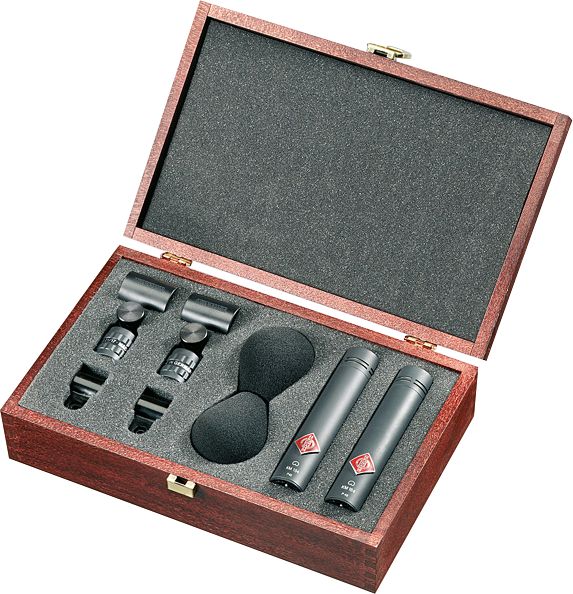

Neumann SKM 184 MT Stereo Set

OVERVIEW
A matched stereo pair of the world-renowned KM 184 miniature cardioid condenser studio mic.

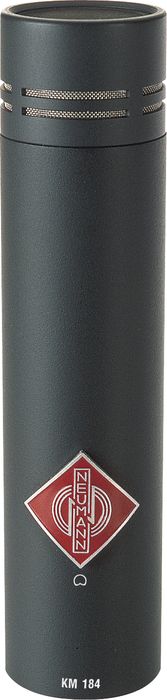

The Neumann SKM 184 MT is a stereo set of miniature condenser mics with a black finish and cardioid polar pattern. A member of Neumann's Series 180 mics, its optimized mechanical construction and conscious omission of modularity make the SKM 184 ideal for for economy-minded production and home recording studios. ApplicationsTheir slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector. Acoustic featuresThe KM 183 and KM 184 microphones are the successors of the well proven KM 83 and KM 84, which have been used since the seventies worldwide with great success. The KM 185 rounds out the series with a hypercardioid microphone. The KM 184 is a pressure transducer that features a very smooth frequency responses not only for the 0° axis, but also for lateral (off-axis) sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle. Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0° frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band. This difference was achieved with just a slight change of the capsule's rear opening, and is not due to resonances. Electrical featuresThe Series 180 microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications: Compared to the KM 84 the dynamic range of the KM 184 increased by 24dB mainly through the reduction of self-noise level to only 22dB (CCIR) and an increased sound pressure handlingcapability of up to 138dB. The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders. The output of the Series 180, as in all Neumann microphones, is balanced and phantom (48V) powered. Economy The "Series 180" is a good choice for all users who look for a high-quality miniature microphone, but do not need the complex, modular KM 100 system, which continues to be part of the Neumann product range. The mechanical construction was simplified, for example, capsule and output stage cannot be separated from each other. For this reason the Series 180 is an economical alternative without giving up the electroacoustic features the users expect from Neumann microphones.



FEATURES

Miniature microphone for all typical studio applications
Successor of the world-renowned KM 83/84



The KM 184 has become the classic, high-quality miniature microphone,. now also available in attractive stereo sets. Order today!



SPECIFICATIONS
SKM 184 MT Stereo Set


Acoustical operating principle: Pressure/Pressure gradient transducer
Directional pattern: cardioid
Frequency range: 20Hz - 20kHz
Sensitivity at 1 kHz into 1k ohm: 15mV/Pa
Rated impedance: 50 ohm
Rated load impedance: 1k ohm
Equivalent noise level, CCIR1): 22dB
Equivalent noise level, A-weighted1): 13dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81dB
Maximum SPL for THD 0.5%2): 138dB
Maximum output voltage: 10dBu
Supply voltage (P48, IEC 61938): 48V ± 4V
Current consumption (P48, IEC 61938): 3.2mA
Matching connectors: XLR 3F
Weight approx.: 2.8 oz. (80g)
Diameter 7/8" (22mm)
Length 4-3/16" (107mm)
