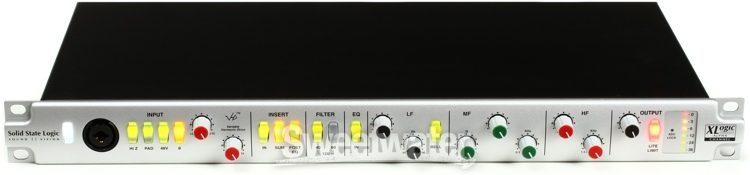

Solid State Logic XLogic Alpha Channel Microphone Preamp & EQ

An Affordable SSL Front End for Your DAW!
Solid State Logic XLogic Alpha Channel - Here's a redundant question: How would you like Solid State Logic as a front end for your DAW? Of course you would, but what about the expense? Another redundant question once you get your hands on the SSL XLogic Alpha Channel! With all the features needed to record great vocal or instrument tracks every time, the Alpha Channel offers a recording solution based on SSL's years of experience in designing the world's leading analog recording consoles. The superior sonic fidelity, quality and attention to detail that have established SSL as the worlds leading audio console manufacturer here in the XLogic Alpha Channel.
Solid State Logic XLogic Alpha Channel at a Glance:

SSL analog channel processing for your audio workstation
Pro mic preamp with line and instrument level switching,
Studio-class EQ, filter and limiter sections
Variable Harmonic Drive circuit

World-class SSL Analog Sound for your DAW
Building upon the exceptional success of the XLogic range of analog rack processors, the XLogic Alpha Channel is poised to bring the elusive SSL 'sound' to a whole new generation of producers and engineers. With all the features needed to record great vocal or instrument tracks, the Alpha Channel offers a studio class mic pre and processing based on SSL's years of experience in designing the world's leading analog recording consoles. A huge proportion of the music you know and love was recorded on SSL, renowned for the superior audio qualities you've heard on countless hit records. That elusive sonic ingredient is in the Alpha Channel.
Pro Mic Preamp
Alpha Channel offers the classic combination of a studio-class mic preamp, highpass filter, parametric EQ, analog to digital conversion as standard and 'Lite Limit' limiting. The preamp is ultra-clean as only SSL can offer, and features line-level and hi-Z instrument input switches, so you can record your guitar, bass, keyboards, and etc direct through your gold SSL channel into your DAW via analog or digital outputs. The Alpha Channel preamp section also offers the features any pro would expect including 48V phantom power, phase invert switches.
Studio-class EQ, Filter and Limiter
The processing section of the XLogic Alpha Channel features a 3-band SSL parametric EQ with mid frequency Q control and dual LF curves, plus a highpass filter with selectable 40Hz, 80Hz or 120Hz cut-off frequency. To keep your input signal from distorting or overloading the built-in limiter features intelligent auto-limiting that maximizes recording headroom and avoids DAC clipping. If SSL processing onboard isn't enough for you, the XLogic Alpha Channel has an insert send/return system with sync for additional processing, insert sum, or multi unit cascade so you can have a stereo gold channel of SSL or more.
Variable Harmonic Drive Circuit
The SSL XLogic Alpha Channel also features the unique SSL 'VHD' (Variable Harmonic Drive) circuit that adds SSL's classic analog sound to DAW recordings by offering controlled 2nd or 3rd harmonic distortion. With its combination of tube-style 2nd harmonic or transistor-style 3rd harmonic degradation, VHD is like a time machine of distortion characteristics.
Solid State Logic XLogic Alpha Channel Features:

Professional ultra-clean mic preamp with line level & hi-Z instrument input switches
48V Phantom Power And Phase Invert Switches
Variable Harmonic Drive circuit; a "Time Machine" of distortion characteristics
highpass filter with selectable 40Hz, 80Hz or 120Hz cut-off frequency
Insert send/return system with sync for additional processing, insert sum or multi unit cascade
Built-in professional quality analog to digital conversion - as standard
Auto sample rate sensing and self-adjustment
Three band SSL parametric EQ with mid frequency Q control and dual LF curves
Intelligent auto limiting that maximizes recording headroom and avoids DAC clipping

All great-sounding recordings have to start somewhere... start yours with world-class analog SSL sound with the XLogic Alpha Channel for your DAW!



Tech Specs

Preamp Type: Solid State
Number of Channels: 1
Phantom Power: Yes
EQ: Yes
Compressor: Yes
Other Processing: Variable Harmonic Drive
Analog Inputs: 1 x Combo (XLR/TRS)
Analog Outputs: 1 x 1/4"
Digital Inputs: 1 x S/PDIF (Coax)
Digital Outputs: 1 x S/PDIF (Coax)
Other I/O: 2 x RCA (Link), 2 x 1/4" (Send, Return)
Frequency Response: 32Hz-108kHz
Rack Spaces: 1U
Height: 1.75"
Depth: 9"
Width: 19"
Weight: 7 lbs.
Manufacturer Part Number: 729999X2
