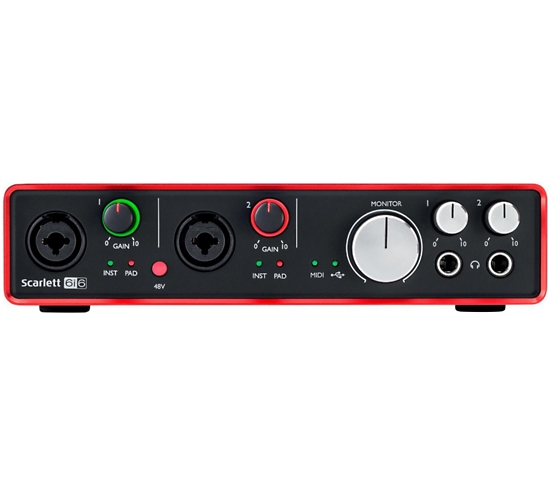

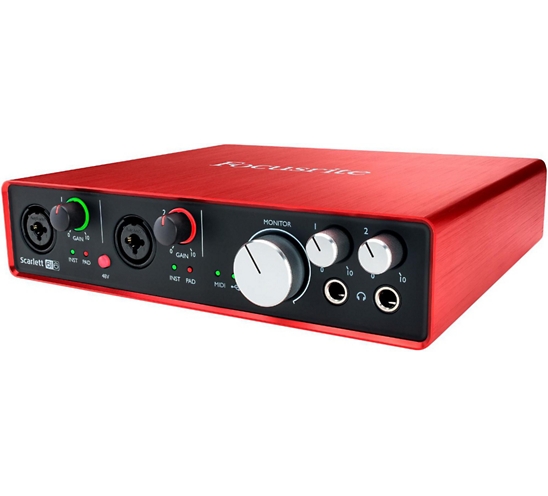

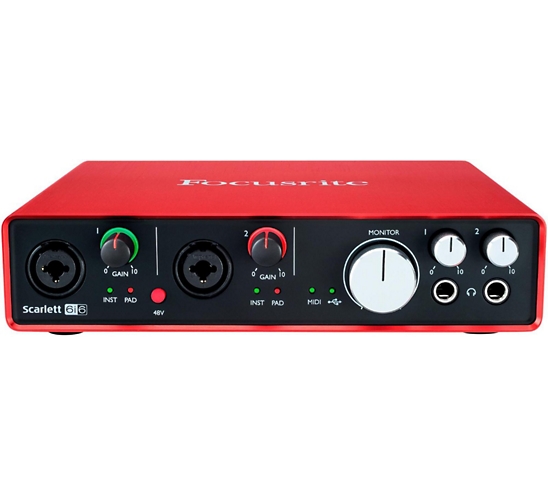

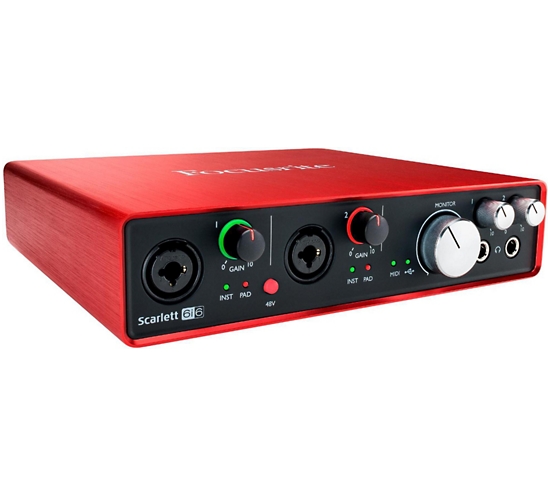

Focusrite Scarlett 6i6 (2nd Gen) USB Audio Interface

OVERVIEW


Second-generation 6-in/6-out USB 2.0 audio interface with 24-bit/192kHz performance.


Videos
Focusrite // The New Second Generation Scarlett Range


Two combination inputs with Scarlett mic preamps, line level inputs and high headroom instrument inputs let you record any combination of instruments or vocals. Connect your synths, keyboards or mixers into two additional line inputs on the rear panel, and connect any equipment with digital I/O to the SPDIF inputs to record six simultaneous channels at once. Two headphone outputs let you send individual headphone mixes to two artists, or an engineer and artist, while four balanced jack outputs let you connect to both studio monitors and outboard gear. With MIDI In and Out, you can also integrate your favorite hardware synths with your DAW.New Generation - Better in Every WayThe second generation Scarlett range is packed full of upgrades. New super-low latency* will bring confidence to your performance, letting you record and monitor with software effects in real time. New metal gain controls and a sleeker red metal chassis reassure you of its improved industrial design, built to go anywhere. The Scarlett range also now operates at sample rates all the way up to 192kHz, and the input channels have evolved too. The latest Scarlett mic preamp features a more even gain structure, so you can accurately set your levels, and the instrument input has also been completely redesigned so it can handle seriously hot guitar pick-ups. Finally, Focusrite have provided analog protection circuitry across both the inputs and the outputs, to guard your interface against unwanted power surges. Intuitive Mix Control and All The Software You NeedScarlett 6i6 is compact and tough enough to take to your live shows for onstage recording or playback. The included 'Focusrite Control' is a brand new software mixer for easy configuration of monitoring and routing setups. Simple and intuitive to use, Focusrite Control offers a traditional mixer workflow and allows immediate access to internal hardware functions. Also included is the software and effects you need; an exclusive version of Pro Tools | First Focusrite Creative Pack (featuring 12 additional plug-ins including the Eleven Lite for real life guitar amp emulations), Ableton Live Lite, the Softube Time and Tone Bundle, Focusrite's Red Plug-In Suite, 2GB of Loopmasters samples and more.* Super-low roundtrip latency was measured at 2.74ms, working at 96kHz with a 32 samples buffer on Logic Pro X, running on a Mac Pro and OS 10.11




FEATURES

Four analog inputs, including two Scarlett mic preamps with plenty of even gain
Two newly designed instrument input, designed for seriously hot pick-ups
Class-leading digital conversion at up to 24-bit / 192kHz
Super-low latency* lets you perform and produce using effects in real time, with no need for DSP
Four balanced analog outputs for connecting studio monitors or outboard gear
Two headphone outputs with dedicated volume controls
Focusrite Control software to easily configure your monitoring and routing setups
Includes Pro Tools | First - Focusrite Creative Pack and Ableton Live Lite
All the additional software and loops you need to record
Use it with all major DAWs on Windows and Mac
MIDI I/O connectivity, ideal for sending/receiving MIDI
Stereo S/PDIF In and Out for connecting other digital devices



Bigger, faster, easier than ever before. Experience the 2nd generation Scarlett series today!



SPECIFICATIONS
Scarlett 6i6 (2nd Gen) USB Audio Interface



A-D Dynamic Range: 109 dB A-weighted (all inputs)
D-A Dynamic Range: 106 dB A-weighted (line outputs 1-2) 108 dB A-weighted (line outputs 3-4)
Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz A 96 kHz
Clock jitter

Microphone Inputs
Frequency Response: 20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain)
THD+N: -96 dB (1 kHz, –1dBFS, 20 kHz BW)
Noise EIN: –122 dBu CCIR-RMS (measured at 60 dB of gain with 150 ohm termination)
Maximum input level: +9 dBu (without pad)

Line Inputs (Front Panel)
Frequency Response:20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain)
THD+N:-80 dB (1 kHz, –1dBFS, 20 kHz BW)
Noise (NiPoS): –105 dBFS CCIR-RMS (measured at min. gain with 50 ohm termination)
Maximum input level: > +28 dBu

Line Inputs (Rear Panel)
Frequency Response: 20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain)
THD+N: –82dB (1 kHz, –1dBFS, 20 kHz BW)
Noise (NiPoS):
107dBFS CCIR-RMS (measured at min. gain with 50 ohm termination)
Maximum input level: +16dBu

Instrument Inputs
Frequency Response: 20 Hz ± 0.3 dB, 20 kHz ± 0.1 dB (min. gain)
Noise EIN: –103 dBFS CCIR-RMS (measured at min. gain)
Maximum input level: +8 dBu (without pad)

Line Outputs 1 & 2
Maximum Output Level (0 dBFS): +11 dBu, balanced
THD+N: -100 dB (1 kHz, –1dBFS, 20 kHz BW)

Weight and Dimensions
Weight: 2.6 lb. (1.18Kg)
Height: 1.97” (50mm)
Width:8.27” (210mm)
Depth: 7.09” (180mm)
