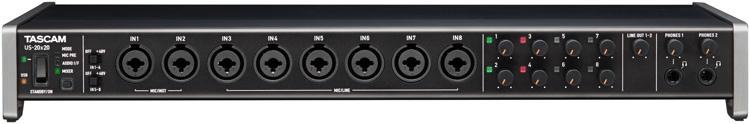

TASCAM Celesonic US-20x20

Big Value in This Interface for Mac, Windows and iOS
The TASCAM Celesonic US-20x20 USB audio interface gives you the connectivity and versatility you need for a wide range of recording applications. It includes eight Ultra-HDDA mic preamps, an additional pair of line inputs, 10 analog outputs, digital expandability, and built-in DSP for EQ, compression, and reverb. Capture great takes with up to 24-bit/192kHz resolution, with ultra-fast performance via USB 3.0 (also supports USB 2.0). Connect directly to your iPad or other iOS device for a studio-like recording experience anywhere. You can even use the TASCAM Celesonic US-20x20 as a standalone mixer, making it one of the more flexible interfaces in its class.

TASCAM Celesonic US-20x20 USB 3.0 Audio Interface at a Glance:

Built-in DSP for EQ, compression, and reverb
Digital patch bay makes I/O management easier
Save mixer Scenes for instant recall

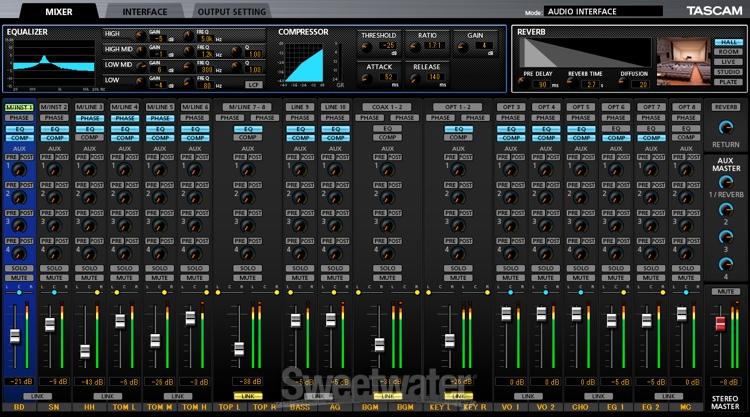

Built-in DSP for EQ, compression, and reverb
Make mixing easier on yourself by using the Celesonic US-20x20's built-in DSP to add EQ and compression to inputs when tracking. Cut out excessive low end, add some air to dull sources, and prevent clipping from signal spikes, all without adding any latency. Use the built-in reverb send to give musicians a better headphone mix. Many recording engineers at Sweetwater believe in finalizing your sounds as much as possible when tracking, and the built-in DSP in the TASCAM Celesonic US-20x20 makes that easier to achieve.

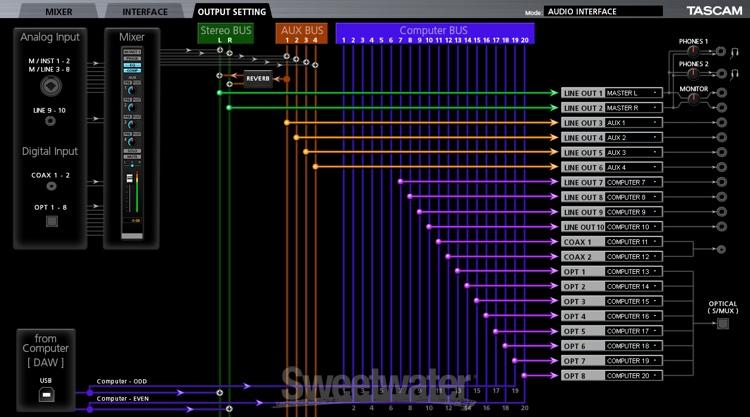

Digital patch bay makes I/O management easier
The TASCAM Celesonic US-20x20 allows you to route any input to any output, analog or digital. You can also select which outputs the headphone outs are monitoring. Leave all your gear connected, and simply re-route your signal flow from within the mixer software.
Save mixer Scenes for instant recall
Once you have your signals routed the way you want and have added EQ, compression, and reverb to taste, you can save your setup as a Scene for instant recall. You can save up to 10 Scenes, allowing you to recall your workflow for tracking, editing, mixing, and any other applications you need.
TASCAM Celesonic US-20x20 USB 3.0 Audio Interface Features:

Audio interface for Mac, Windows and iOS, with up to 24-bit/192kHz resolution
Can be used as an audio interface, 8-channel mic preamp, or as a standalone mixer
Fast USB 3.0 connectivity (Windows 10 required on PC), also supports USB 2.0
Dual headphone outputs can independently monitor any outputs
Expandable via S/PDIF and optical I/O
8 Ultra-HDDA mic preamps, plus hi-Z inputs on the first 2 channels for guitar or bass
Built-in DSP for adding EQ and compression to any input or output, plus a reverb send
Digital patch bay allows you to route any input to any output
Comes with 2 sets of ears: angled for desktop use, straight for rackmount use
USB 3.0 and USB 2.0 cables included

For small- to mid-format recording sessions, the TASCAM Celesonic US-20x20 offers a lot of bang for your buck!


Tech Specs



Computer Connectivity
USB 3.0


Form Factor
Rackmount


Simultaneous I/O
20 x 20


A/D Resolution
24-bit/192kHz


Built In DSP/FX
Yes, EQ and Compression


Analog Inputs
8 x XLR/TRS Combo (2 Mic/Instrument, 6 Mic/Line), 2 x 1/4" TRS


Analog Outputs
10 x 1/4" TRS, 2 x 1/4" headphone


Digital Inputs
1 x S/PDIF, 1 x Optical S/MUX


Digital Outputs
1 x S/PDIF, 1 x Optical S/MUX


Number of Preamps
8


Phantom Power
Yes


MIDI I/O
In/Out


Clock I/O
2 x Word Clock (In, Thru/Out)


Rack Spaces
1U


Manufacturer Part Number
US-20X20
