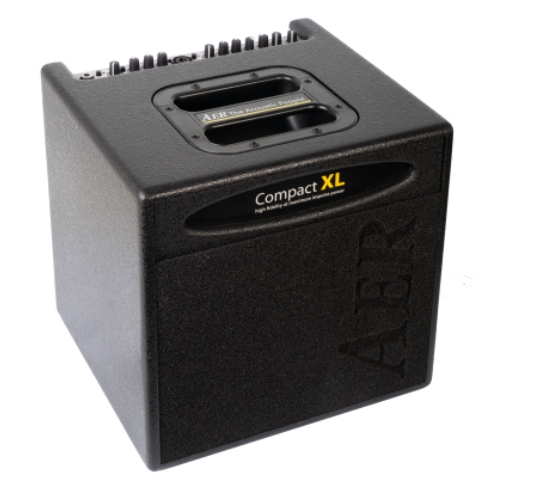

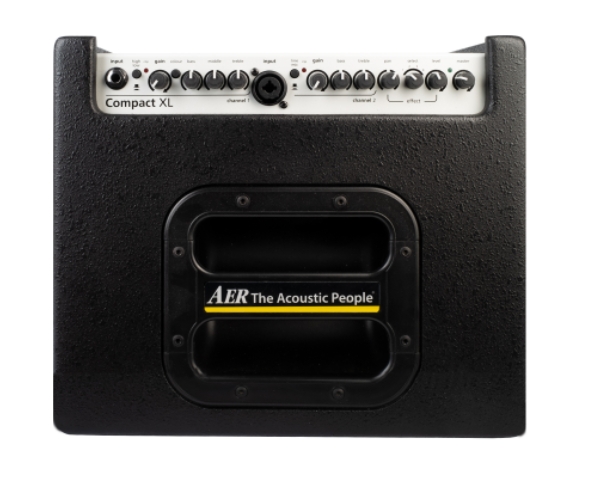

AER COMPACT XL

Channel 16.3 mm (1/4”) input jack socket as high impedanceline input stage with pad (high/low attenuation)and switchable 9 V phantom power, gain control
Channel 2combined XLR/6.3 mm (1/4”) input jack socket ashigh-quality line or balanced microphone input stage48 V phantom power, gain control
Equalizerthree band tone controls for channel 1and two band tone controls for channel 2
Colour‘mid-cut-treble-boost’-filter
Effectsdigital effect processor with4 presets: 2 x reverb, delay, chorus
Power amp200 W / 8 ohms, dynamic control
Analog signal processingsubsonic filter, low distortionRMS limiter
Speaker2-way speaker system, 8” (200 mm)polypropylen low-midrange + 1” dome tweeter,light-weight neodymium alloy magnets

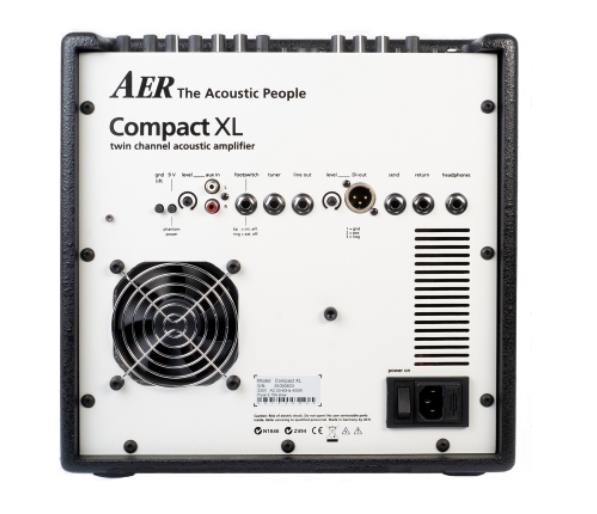

Featuresground lift, switchable 9 V phantom power, adjustable aux in, footswitch (effects on/off ), tuner, line out,adjustable DI-out, external effect loop via send/return, headphones
Dimensions 320 mm x 326 mm x 282 mm(12.60“ x 12.90“ x 11.10“), HxWxD
Weight10 kg (22.10 lbs)
