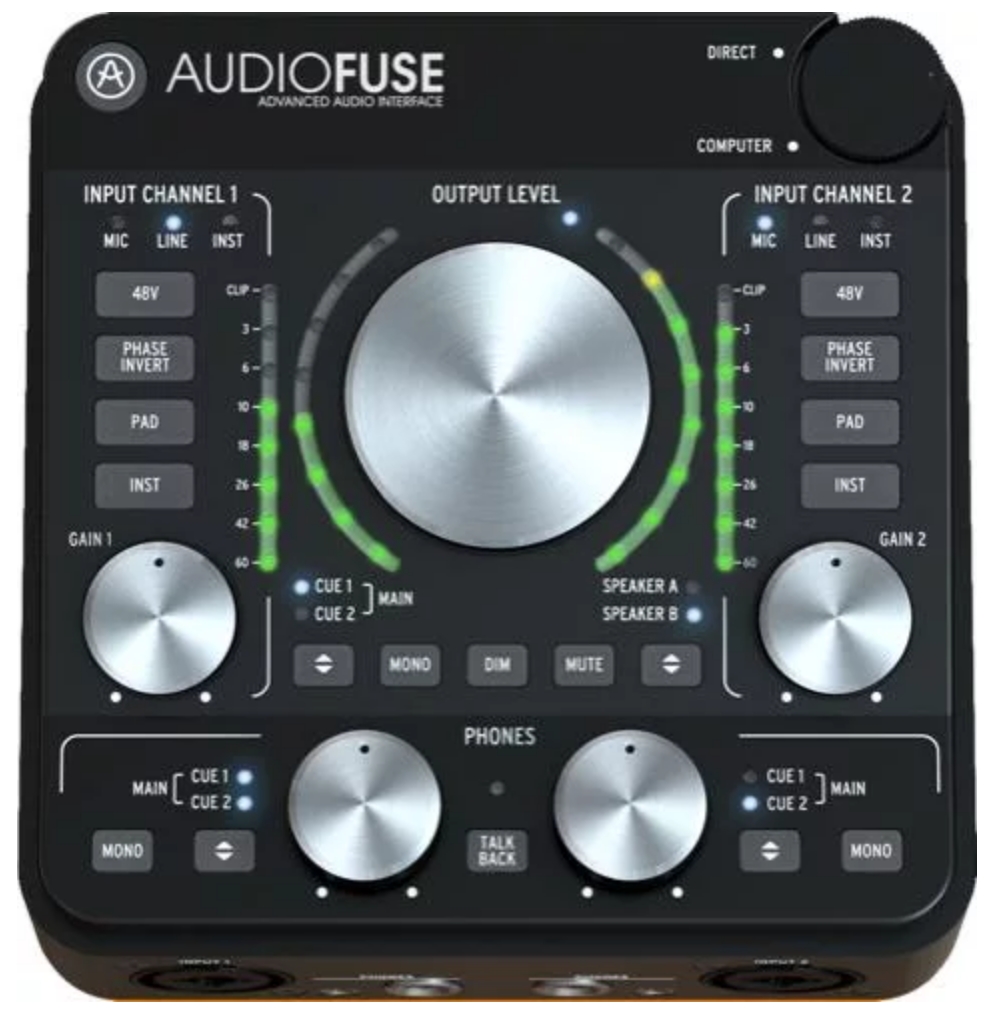

Arturia AudioFuse Rev2 USB Audio Interface

Arturia’s Next-gen Interface Just Got Better
The Arturia AudioFuse Rev2 is an exciting update of Arturia’s next-gen audio interface. Designed to optimize your workflow, the Arturia AudioFuse Rev2 is built on a meticulously designed, symmetrical audio chain. The 14 x 14 interface is stocked with two DiscretePRO mic preamps, which add a touch of analog character to liven up your digital audio environment. High-quality conversion and advanced clocking deliver low-latency performance and pristine audio quality. The AudioFuse Rev2’s control surface is packed with functionality but streamlined for intuitive use, and it's ample I/O offers a level of connectivity uncommon for a unit of its price and size. And, to get you started creating right away, the AudioFuse Rev2 ships with the AudioFuse Creative Suite, which features a host of premium software effects and instruments. Ready for a next-gen interface? Check out the Arturia AudioFuse Rev2 — available from Sweetwater.




Wide-ranging connectivity
Unique among interfaces its size, the Arturia AudioFuse Rev2 offers a stunning array of connectivity options. On top of its dual preamps, it includes two line inputs, two sets of stereo monitor outputs, two headphone outputs, and two RIAA phono preamps. Additionally, it has two inserts for integrating hardware effects and processors into a hybrid digital/analog setup, ADAT I/O to expand the unit's inputs and outputs, Word Clock I/O, and MIDI IO, so you can externally control your favorite Arturia virtual instruments or internally control your outboard MIDI gear. Finally, it has a three-port USB hub for data connection and bus power.






AudioFuse Creative Suite included
When people think of Arturia, they think of the company's 20 years of experience offering of world-class virtual instruments and effects. The AudioFuse Rev2 ships with the AudioFuse Creative Suite, a curated selection of some of Arturia's most popular software that includes three channel strips modeled after legendary analog equipment, a hardware-emulated FET compressor, an iconic ladder filter, and Analog Lab Lite. It's everything you need to dive in and start creating!




Arturia AudioFuse Rev2 Features:

14 input, 14 output channels
4 analog inputs: 2 mic/instrument/line, 2 phono/line
4 analog outputs; 2 analog inserts
ADAT I/O, SPDIF I/O; Word Clock I/O
MIDI I/O; 3-port USB hub
2 microphone preamps with DiscretePRO technology
2 RIAA phono preamps
Latest generation 24-bit AD/DA converters at up to 192kHz sampling rate
Option for analog soft-clipping
Talkback feature with a dedicated built-in microphone
A/B speaker switching direct monitoring
Separate master and monitor mix channels
USB interface with PC, Mac, iOS, Android, and Linux compatibility
Includes built-in reverb
Stylish, aluminum chassis


Tech Specs

Type: USB Interface
Computer Connectivity: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 14 x 14
Number of Preamps: 2
Phantom Power: Yes
A/D Resolution: Up to 24-bit/192kHz
Effects: AudioFuse Creative Suite Effects

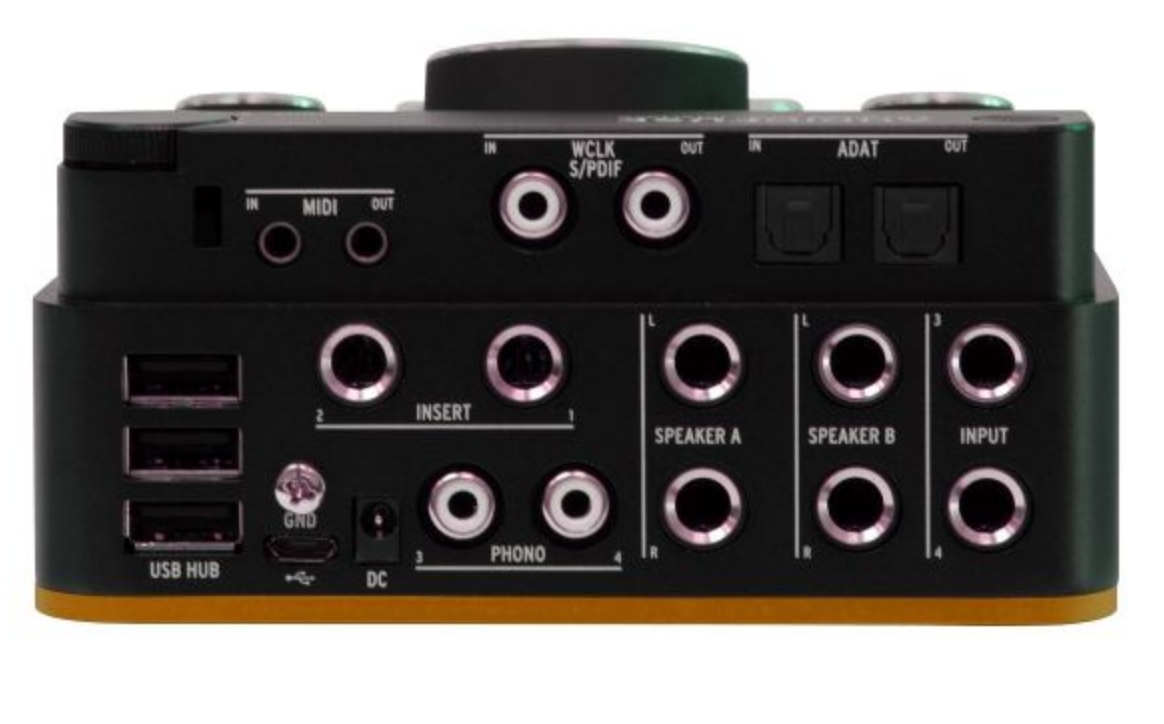

Analog Inputs: 2 x XLR-1/4" combo (mic/line/Hi-Z), 2 x 1/4" TRS (line), 1 x Dual RCA Stereo
Analog Outputs: 2 x 1/4" TRS (speaker A), 2 x 1/4" TRS (speaker B)
Digital Inputs: 1 x Optical Toslink (ADAT), 1 x Coax (S/PDIF,Wordclock)
Digital Outputs: 1 x Optical Toslink (ADAT), 1 x Coax (S/PDIF,Wordclock)
Inserts: 2 x 1/4" TRS
Headphones: 2 x 1/4", 2 x 1/8" (DC coupled)
MIDI I/O: 1 x 1/8" (in), 1 x 1/8" (out)
USB: 3 x Type A, 1 x Micro-B
Clock I/O: In/Out (shared with S/PDIF)
Other I/O: Built-in Talkback Mic
Software: AudioFuse Control Center, AudioFuse Creative Suite
Compatibility: iOS, Android, Mac, PC, Linux
OS Requirements - Mac: OS X 10.8.5 or later
OS Requirements - PC: Windows 7 SP1 or later
Bus Powered: Yes
Power Supply: AC Adapter / USB bus powered
Height: 2.6"
Width: 5"
Depth: 5"
Weight: 1.8 lbs
Manufacturer Part Number: 811001
