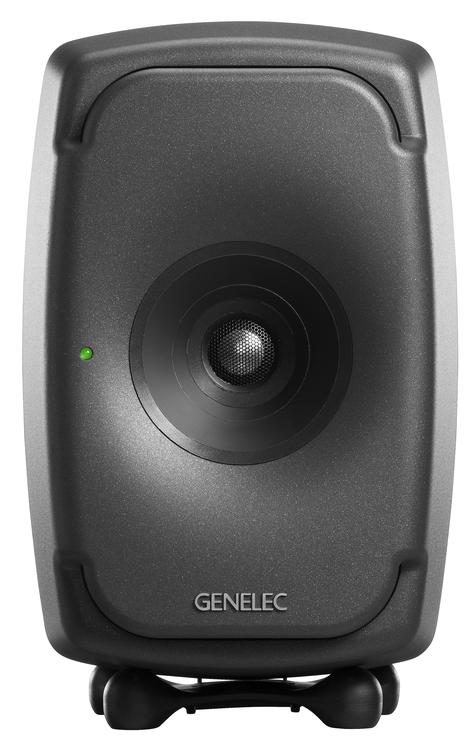

Genelec 8331 SAM - Powered Studio Monitor (each)

Point-source Monitoring for Smaller Control Rooms
For extraordinary imaging, extended frequency response, and fatigue-free listening at near- to midfield distances, you can't beat point-source monitoring. Genelec has point source nailed with their 8331 SAM. Part of Genelec's "The Ones" series, this revolutionary 3-way studio monitor combines Genelec's Acoustically Concealed Woofer (ACW) technology with other innovative technologies to deliver an impressively linear payload over a remarkably wide bandwidth, resulting in phenomenal imaging and clarity. At Sweetwater, we're impressed by Genelec's Smart Active Monitor (SAM) technology, which optimizes level, timing, and equalization of room response anomalies. The result is an amazingly tight, accurate sound with enormous dynamic range and unprecedented frequency response, regardless of where you choose to work. On top of that, these monitors perform optimally in both horizontal and vertical positions.














Now Playing: Overview at Sweetwater GearFest 2017







Genelec "The Ones" Line Launch and Interviews







Genelec: The Ones - Behind-the-scenes Featurette






Acoustically Concealed Woofer (ACW) technology delivers superior imaging
The 8331's dual woofers employ Genelec's innovative Acoustically Concealed Woofers (ACW) to extend their coaxial acoustical radiation concept to bass frequencies. Hidden inside the monitor's cabinet, these woofers use the entire front baffle as a giant Directivity Control Waveguide (DCW) to control directivity over a very wide bandwidth, creating a massive "sweet spot." It also provides effective separation from the 8331's Minimum Diffraction Coaxial (MDC) driver, which reproduces midrange and high frequencies. The result is incredibly accurate monitoring with unparalleled frequency separation, a wide dispersion pattern, and unbelievable imaging.

"X-ray" view of Acoustically Concealed Woofers




Smart Active Monitor (SAM) technology provides remarkably accurate monitoring
These days, it's not unusual for an engineer to work in a small, less-than-perfect acoustical environment. Genelec's Smart Active Monitor (SAM) technology takes this into account by allowing the 8331 SAM to automatically calibrate its level, timing, and equalization to your room, ensuring that you hear the original nuances of your source accurately, without color or distortion. By using the highly-intuitive Genelec Loudspeaker Manager (GLM) software, you can control an entire network of SAM speakers, giving you a highly-flexible computer-controlled system of monitors and subwoofers.




Minimum Diffraction Enclosure (MDE) delivers focused nearfield sound
The 8331 SAM features Genelec's Minimum Diffraction Enclosure (MDE) with rounded edges and a gently curved front and sides. This allows the 8331 SAM to achieve a very smooth frequency response and superb imaging qualities with minimized cabinet edge diffraction.





Genelec 8331 Active Studio Monitor Features:

Smart Active Monitor (SAM) provides remarkably accurate monitoring
Minimum Diffraction Enclosure (MDE) delivers focused near- and midfield sound
Minimum Diffraction Coaxial (MDC) driver provides superior imaging
Directivity Control Waveguide (DCW) for linear on- and off-axis response
Dual Acoustically Concealed Woofers (ACW) extend directivity control to bass frequencies
Optimum performance in both horizontal and vertical position






Tech Specs



Powered
Yes


Power Configuration
Tri-amped


LF Driver Size
2 x (5.12" x 3.62") concealed woofers


MF Driver Size
1 x 3.5"


MF Driver Type
Diffraction Coaxial Driver


HF Driver Size
1 x 0.75" Coaxial tweeter


HF Driver Type
Diffraction Coaxial Driver


LF Driver Power Amp
72W


MF Driver Power Amp
36W


HF Driver Power Amp
36W


Total Power
144W


Frequency Response
58Hz-20kHz (±1.5 dB)


Maximum Peak SPL
104 dB SPL @ 1m


Features
DIP switches (standalone EQ set up)


Input Types
1 x XLR (analog, AES/EBU)


Output Types
1 x XLR (AES/EBU)


Other I/O
2 x RJ45 (GLM network)


Enclosure Type
Ported


Height
11.25", 12" (with stand)


Width
7.5"


Depth
8.37"


Weight
15 lbs.


Manufacturer Part Number
8331
