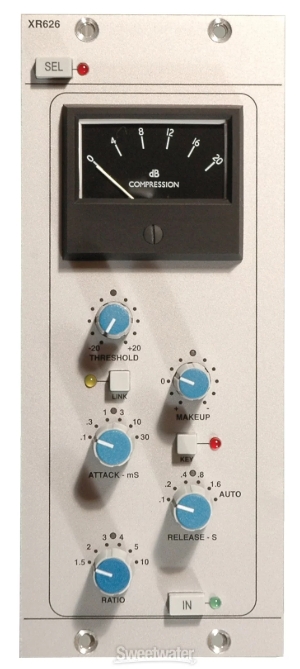

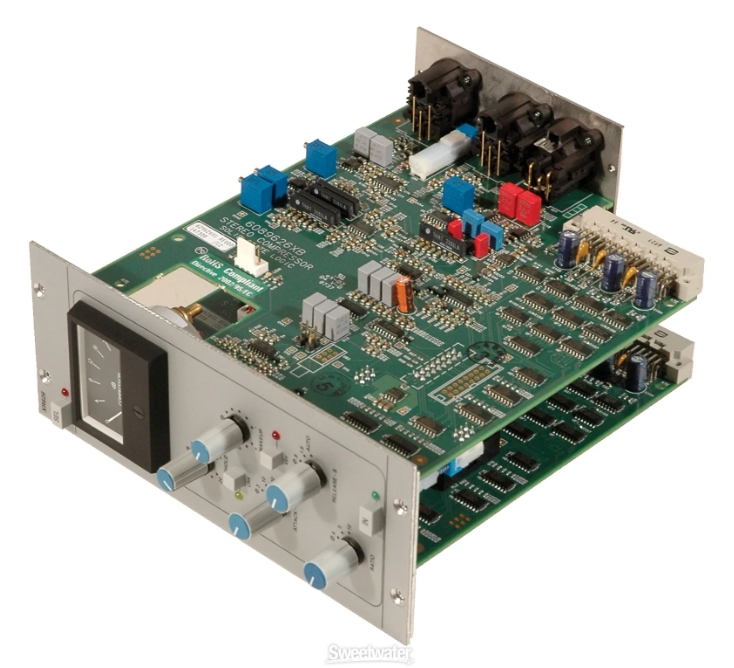

Solid State Logic X-Rack Stereo Bus Compressor Module

The Unmistakeable Sound of SSL's G-Series!
Note: Must be installed in an XRack or Mynx to function.


The SSL Stereo Bus Compressor Module answers the clamor from customers for the audio legend that is the center section compressor from SSL G-Series Consoles to be made available for the X-Rack system. The module, which is the first double-width module occupying two X-Rack slots, is a simple unit with a simple purpose: it makes complete mixes sound bigger, with more power, punch and drive. It brings cohesion and strength to the mix without compromising clarity. The Stereo Bus Compressor Module delivers the classic tonal characteristic of the G-Series Compressor but with the added benefit of the ultra high bandwidth, ultra-low-noise SuperAnalogue circuit design. The classic Threshold, Attack, Ratio, Release, and Make Up controls make the module extremely simple to operate. True Stereo Side Chain Input is accompanied by a "link" feature that enables multiple Stereo Bus Compressor Modules to be combined for surround processing.
Solid State Logic X-Rack Stereo Bus Compressor Module Features:

Classic sonic character and mix finalizing capabilities of SSL Stereo Bus compression
True Stereo side-chain Input for external signal keying.
Link control enables several modules to be combined for surround compression
Gain reduction meter as fitted to the classic SSL console range
Electronically balanced XLR connections





What Does "Special Order" Mean?
A special-order product is one that we don't normally keep in stock. We order it from the manufacturer as soon as you order from us. We have great relationships with all the manufacturers we carry, so we can get your special order to you as fast as or faster than anyone else. Remember that special orders are non-returnable and non-cancelable, so make sure the item is right for you. A Sweetwater Sales Engineer can help you decide — call (800) 222-4700 for assistance!



Additional Media
Signal Processing Buying Guide


Tech Specs

Number of Channels:2 (Stereo)
Controls:Threshold, Makeup, Attack, Release, Ratio
Threshold:-20dB to 20dB
Ratio:1.5:1 to 10:1
Frequency Response:20Hz-20kHz
Inputs:2 x XLR
Outputs:2 x XLR
Sidechain I/O:2 x XLR (IN, L/R)
Height:6.75"
Depth:7.9"
Width:2.8"
Weight:1.2 lbs.
Manufacturer Part Number:729626X1
