FOCAL Sub 6

Extend the Low End of Your Focals!

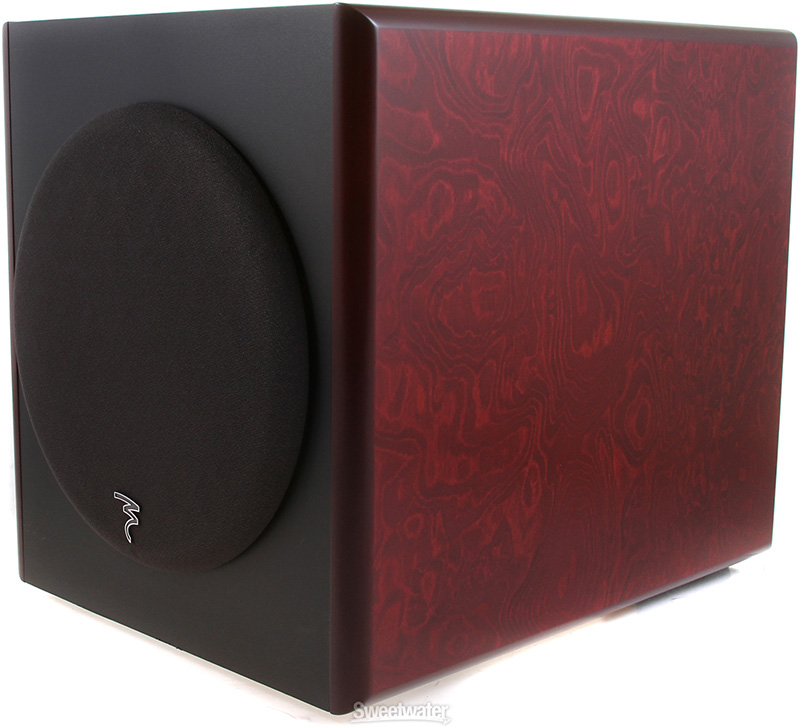

The Focal Sub6 subwoofer sports a large-volume cabinet design, an 11" woofer, and a rear laminar port, all for excellent low-end response. More than that, though, Focal designed the configuration to guarantee linearity, whatever your intended SPL. Flexible connectivity on the rear of the Sub6 allow you to set up multichannel systems, and you can take charge of monitor settings via adjustable phase and level control plus a highpass crossover. Finally, a handy footswitch input lets you quickly deactivate the Focal Sub6 and its crossovers, to evaluate your tracks.
Focal Sub6 Subwoofer Features

11" Subwoofer with rear laminar port delivers a 30Hz-250kHz frequency response
Right, Left, and LFE inputs for setting up a 2.1 or 2.2 system
Highpass crossover and adjustable phase/level control for optimizing with your monitors
Onboard footswitch input, for quickly deactivating the Sub6 and the highpass crossovers

Focal Sub6 Subwoofer Specifications

Frequency response: 30Hz - 250kHz
Maximum SPL: 116dB SPL (peak @ 1m)
Input: Right, left, LFE, Electronically balanced (10 kOhms), XLR 3 points socket
Bass/mid-range: 350W rms, BASH technology
Signal internal treatment:
Mono right/left summation
LFE + mono lowpass
24dB/octave
Phase adjustment
Polarity selection switch
Switch highpass filter, cut-off frequency selection
Electric supply: Local supply wire: 230V (1.6A fuse), 115V (3.5A fuse), removable IEC supply wire
Adjustable subwoofer level
Lowpass cut-off frequency setting
Phase adjustment
Polarity adjustment
Subwoofer switch (mute)
2.1 "Bypass" (external remote contol)
Highpass frequency selection
Releasable highpass
Warning lights: Power on LED, Subwoofer switch (mute), Released highpass
Woofer: 11W7670, 10-5/8" (27cm) Focal "W" composite sandwich cone driver
Box: 7-1/2" (19mm) MDF panels
Finish: Dark red natural veneering side panels, black body
Dimensions (HxWxD): 14-15/16 x 13-9/16 x 17-5/16" (380 x 344 x 440mm)
Weight: 50.7 lbs. (23kg)

Pair the Sub6 subwoofer with your Focal monitoring setup, for excellent low-end reproduction!


Tech Specs



Manufacturer Part Number
#FOPRO-SUB6
