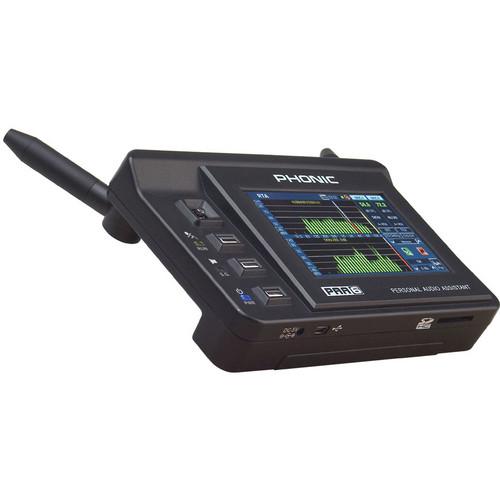

Phonic PAA6 - Digital 2-Channel Audio Analyzer with Color Touch LCD

Overview

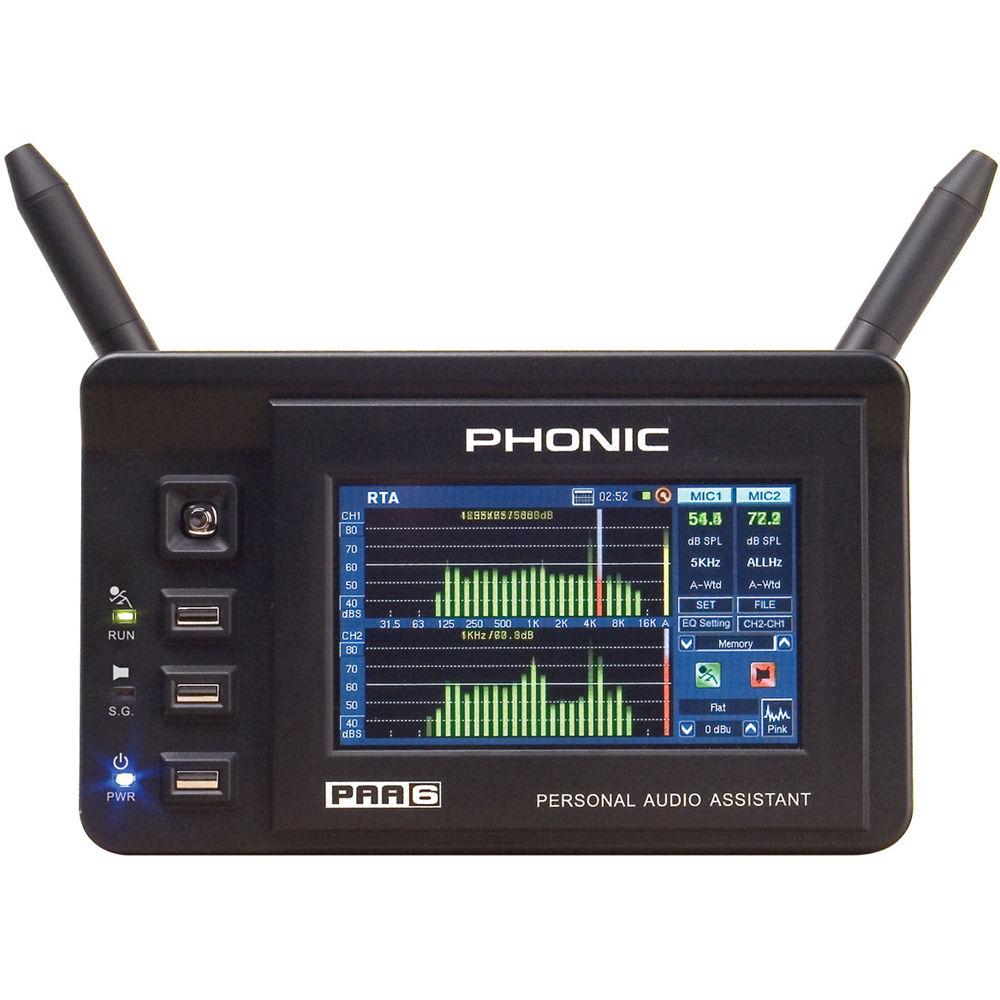

The PAA6 from Phonic is a 2-channel digital handheld audio analyzer that features a 480 x 272 color touch-screen display. The elegant graphical user interface allows all functions and menus to be easily accessed.
Functions include a real time spectrum analyzer, RT60 measurement, tone generator, LEQ, EQ setting and phase checking. Also available are SLM, FFT, THD+N measurement, and scope functions. The 2 built-in condenser microphones take highly accurate measurements in any given situation.
A USB connector and SD card slot have been included to assist in transferring information to and from a computer. This feature-rich, portable audio tester will satisfy the needs of professional audio engineers, regulatory enforcement agencies, and product development teams.



Powerful dual-channel, palm-size audio analyzer


480 x 272 color LCD touch screen


2 built-in highly accurate, omni directional condenser microphones


Functions include RTA, LEQ, RT-60, FFT, THD+N, Polarity, Phase, Scope and Meter (dB SPL, dBu, dBV and Volt)


Tone generator includes pink noise, white noise, sine wave, sweep, polarity, triangle and square


Elegant graphical user interface


Long-lasting rechargeable lithium-ion battery system (up to 3 hours usage from full charge)


USB port and SD card slot included for storing and retrieving data


30 to 130dB SPL meter






In the Box


Phonic PAA6 - Digital 2-Channel Audio Analyzer with Color Touch LCD


External Power Supply
Power Adapter/Charger
USB Cable
Leather Case
3/8" and 5/8" Microphone Stand Adaptors
One (1) Year Warranty











Specifications





Line In
2 x XLR


Line Output
1 x XLR Signal Generator


Storage
1 x SD Card SlotUSB 2.0 Port (for connecting to a computer)


Input Impedance
100kΩ balanced, 50kΩ unbalanced


THD + N
Less than 0.05%, 20Hz to 20kHz (+4dBu)


Display
480 x 272, 16-bit full color touch screen


Power Requirements
5VDC via external power supply, center post positiveInternal rechargeable battery (3 hour charging time)


Dimensions (WxDxH)
7 x 4.2 x 1.6" (175 x 106 x 40mm)


Weight
1 lb (0.5kg)






Packaging Info


Package Weight
3.1 lb


Box Dimensions (LxWxH)
10.0 x 10.0 x 3.5"
