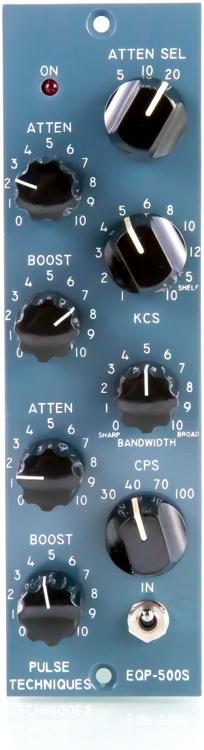

Pultec EQP-500S

A Coveted Pultec, Now in a 500 Series Version
If we're talking about elusive vintage Pultecs, the EQP-1S3 takes the cake. After reissuing a 2U version, the company has shrunk their classic equalizer further with the 500 Series EQP-500S. Spec'd just like the classic, the EQP-500S delivers the signature Pultec punch and warmth that made the original a coveted piece of outboard in the 1970s, along with the modified high band that includes shelving at 5kHz and 10kHz, plus alternate low-frequency selections. Based on the esteemed API 2520 op-amp, the EQP-500S serves up that inimitable Pultec sound, with the control you need to EQ your tracks to perfection.
Pultec EQP-500S Features at a Glance:

Boost, cut, or both - it all sounds great
Vintage solid-state classics
Nourish your tracks with the stuff of legend

Boost, cut, or both - it all sounds great
Take a look at the Pultec EQP-500S and you'll see it's not designed like your typical equalizer. The 2-band design basically gives you flexible low shelving, along with broad-bandwidth midrange peak control. Because the boost and attenuate controls work independently, you can use an old trick to add weight to the bass region while also notching a bit above the cutoff point, by boosting and attenuating at the same time (try it on your kick drum and you'll never look back). On the high-frequency side, you can set separate ranges for the boost and attenuation. Said another way, you can boost at 12kHz and cut at 5kHz, adding air to a track without increasing presence.
Vintage solid-state classics
There were solid-state Pultecs? There were, indeed. Introduced in the 1970s, these equalizers sported tighter bass than their tube counterparts and surprisingly sweet-sounding highs. Today's solid-state Pultecs, like their ancestors, employ API 2520 op-amps (rather than vacuum tubes) to drive their make-up gain stages. Otherwise, they're functionally identical to their tubular brethren. If you love the Pultec sound, but the characteristic low-end bloom of the tube units is a bit much, the solid-state models - including Pultec's 500 Series modules - will serve you well.
Nourish your tracks with the stuff of legend
At Sweetwater, the name Pultec commands reverence. Magical tools revered for their ability to improve the sound of audio simply by passing signal through them, Pultec equalizers are the stuff of legend. They're all over many of your favorite records. Rare vintage units cost a pretty penny - if you can find one in good working order. So naturally, there have been many hardware and software re-creations over the years. Well, now you can grace your recordings with the sweet sound of a genuine Pultec EQ - conveniently located in your 500 Series rack!
Pultec EQP-500S Features:

Single-channel, 2-band equalizer built to 500 Series specifications
The vintage character of original Pultecs, the reliability of modern design
Incredibly low noise floor for a pure sound
Bandwidth control lets you decide how wide a range you're sculpting
Separate boost and cut controls provide additional creative potential
30, 40, 70, 100Hz shelf boost, 0-13.5dB
30, 40, 70, 100Hz shelf attenuate, 0-17.5dB
1, 2, 3, 4, 5, 6, 8, 10, 12kHz peak boost, 0-18dB
5, 10kHz shelf boost, 0-14dB
5, 10, 20kHz shelf attenuate, 0-16dB
Amplifier: 20Hz-20kHz; +0, -1dB (ref: 1kHz, including input/output transformers)
Input transformer: 600 ohms; output transformer: 600 ohms
Noise: below -80dBm; output level: +21dBm maximum
Distortion: 0.15% at 10dBm into 600 ohms

Fortify your 500 Series rack with the Pultec EQP-500S!


Tech Specs



Manufacturer Part Number
EQP-500S
