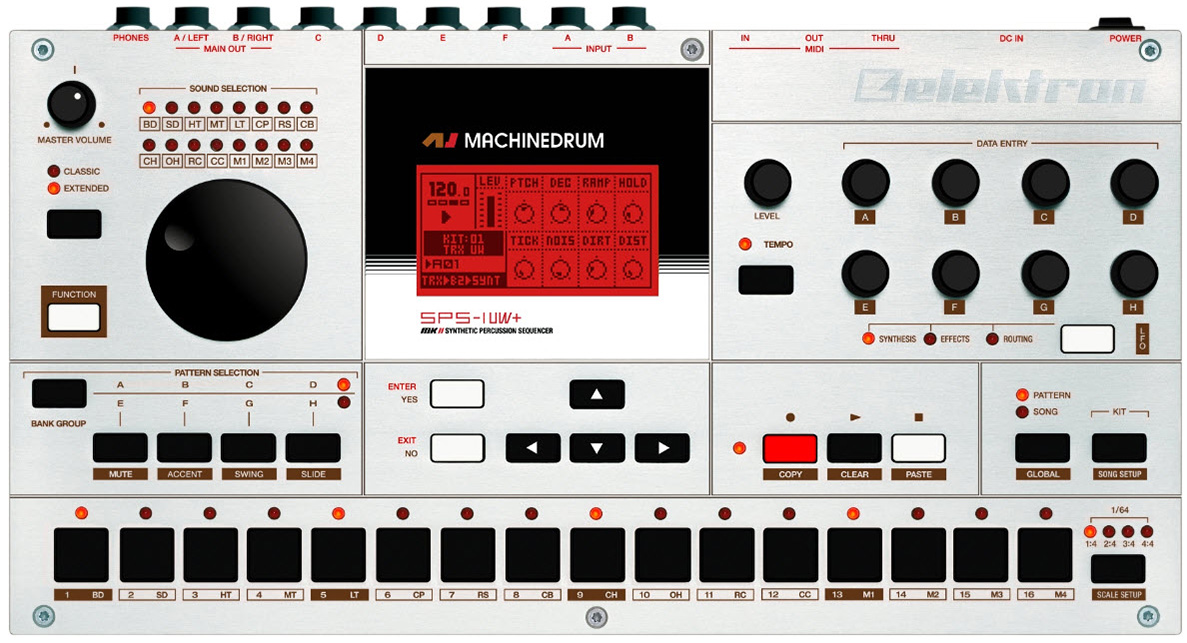

Elektron Machinedrum SPS-1UW+ MKII Drum Machine

OVERVIEW
Intuitive rhythm production tool with flexible drum synthesis.


The Machinedrum SPS-1UW+ MKII, where UW is short for User Wave, is a drum machine equipped with numerous drum synthesis methods as well as a sampling engine. But this is not your ordinary beat box; it's something far better. Both synthetic and sample based sounds can be manipulated to great extents. In a matter of seconds a vocal sample can be transformed in to a kick drum. Change a few parameters and a handclap is suddenly a hi-hat. Your imagination is the only limit. Live performers have a trusty companion in the SPS-1UW+ MKII. Capture loops from a turntable, slice and rearrange the recorded material while adding effects and filtering. The ultra-flexible sequencer allows for total control of all your sounds and samples. All in real time. The +Drive of the Machinedrum SPS-1UW+ MKII dramatically increases the storage capability compared to previous Machinedrum models. It allows over 16,000 patterns, 8,000 kits and 6,000 samples to be internally saved. To give a taste of the benefits of the +Drive, every SPS-1UW+ MKII comes with seven pre-installed Sound Packs. They consist of patterns and kits combined with studio recorded, 100% royalty free, samples found nowhere else. The collection of Sound Packs is an invaluable sonic extension for producers of all kinds and covers a wide range of genres and styles. Also bundled with the Machinedrum SPS-1UW+ MKII is the TM-1 USB MIDI interface. This device, which comes at no extra cost, features the clever Turbo Mode. Activate it by pressing the Turbo button and suddenly MIDI and sample transfer rates for connected and compatible gear will be ten times as high.



FEATURES

16-Track Sequencer
16384 Patterns
64 Step patterns
4096 Songs
8192 Kits
6144 Samples
16 LFOs
Five individual track effects



Music is more fun once you get your hands on it. Order Elektron hardware instruments today.



SPECIFICATIONS
Machinedrum SPS-1UW+ MKII Drum Machine


The Sequencer
16 tracks
128 x 64 step patterns
4096 songs
Supports swing, slide and accent
64 possible parameter locks on each pattern step Full realtime control
Full MIDI support
384 MIDI controllable parameters
Track Effects
16 x Amplitude Modulation
16 x 1-band EQ
16 x Resonant 24 dB LP/BP/HP filter
16 x Sample Rate Reduction
16 x Distortion
Master Effects
Rhythm Echo delay
Gatebox reverb
Hi/Lo-shelf + parametric EQ
Dynamix processor
Sound Generation
5 MD Synths
46 individual audio generating machines
5 effects on each track
4 stereo master effects
16 part synthesis
64 kits
8192 kits
6144 ROM slots
4 RAM Machines for real time sampling
Hardware
128x64 pixel backlit LCD
MIDI In/Out/Thru
6 x 1/4" impedance balanced audio out jacks
2 x 1/4" audio in jacks
1 x 1/4" stereo headphone jack
Advanced dual DSP system
44.1kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
2,5 Mb sample memory
+Drive
Balanced Audio Outputs
Main out level: +15dBu
Assignable outs level: +10dBu
Output impedance: 100 Ω unbalanced
S/N ratio: 100dBFS (20-20.000Hz)
Unbalanced Audio Inputs
Input level: +7dBu maximum
Audio input impedance: 9 k Ω
SNR inputs: 98dBFS (20-20.000Hz)
Electrical Specifications
Unit power consumption: 8W typical, 18W max.
Recommended power supply: 6V DC, 3A
Physical Specifications
Steel casing with brushed aluminium panel
Dimensions: W340×D181×H63mm (13.4×7×2.4") (including, audio outputs, knobs and rubber feet)
Weight: approximately 2.8 kg
Miscellaneous
TM-1 USB Midi Interface
USB cable
Printed User's Manual
