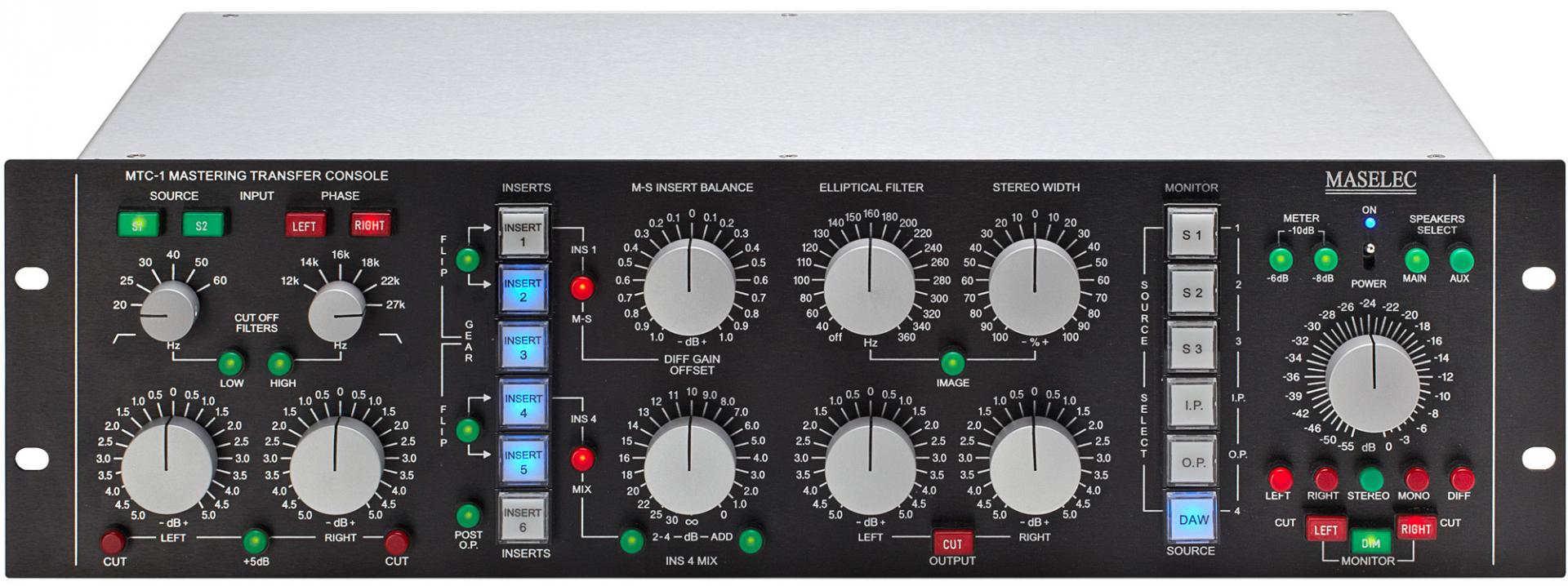

Maselec MTC-1X Stereo mastering transfer console

The Maselec MTC-1X is the perfect tool for mastering studios as well as for high quality home recordings. With exceptional sonic properties, new functionalities and usual rock solid Maselec quality, the MTC-1 is an ideal alternative to the MTC-2 mastering console. The MTC-1 measures 3 U height with a depth ‘behind panel’ of 260mm and 8kg weight. The front control surface has 42 push-button controls with LED lights and 12 high quality rotary switches. Gold XLRs are used for all audio connections, assisting the use of highest quality cables. Connecting and rearranging external equipment is very easy. The Input section:

Input source selection
Phase invert for left and right
Separate Left and Right gain controls
5dB additional gain selectable for low level sources
Low-cut and High-cut filters
Independent Cut controls for left and right

The Output section:

Separate Left and Right gain controls
Elliptical filter with 20 frequencies
Stereo Width control
Output Cut control
The stereo image circuits are identical to the famous controls of the MTC-2

The Insert section has six insert points and offers additional powerful functions:

M-S with gain control for the ‘difference’ signal
Inserts 1 & 2 equipment swap (FLIP)
Insert 4 or Inserts 2-4 cross-fade or additive mix with
the use of a rotary switch. This function could be
used for ‘parallel’ compression or adding reverb
Inserts 4 & 5 equipment swap (FLIP)
Insert 6 can be moved to Post Output. This is the preferred position for a brick-wall limiter.

The Monitor section:

Four external Monitor Sources
Monitor of the Input and Output sections
Two speaker feeds
0 to +10dB offset trim for inputs S1 and S2
Monitor of the Stereo-, Left-, Right-, Mono- or Difference- signal
Individual Cut controls for Left and Right speakers
Progressive Dim function
Meter output, which follows the monitor source
–6dB, -8dB and –10dB Meter Offsets







www.music-blvd.com $9950
