Henretta Engineering Golden Years Phaser

Henretta Engineering Golden Years Phaser
The GOLDEN YEARS phaser is a modern take on our favorite classic phaser, the MXR Phase45. This circuit provides a subtle and very musical phase shifting effect reminiscent of rotating speaker sounds from the golden years of rock recording. Place it before distortion pedals for throbby modulated sounds, or place it after distortion pedals for a more modern dance-like comb filtering effect (particularly cool with slow speed settings)






Henretta Engineering Golden Years Phaser Features:

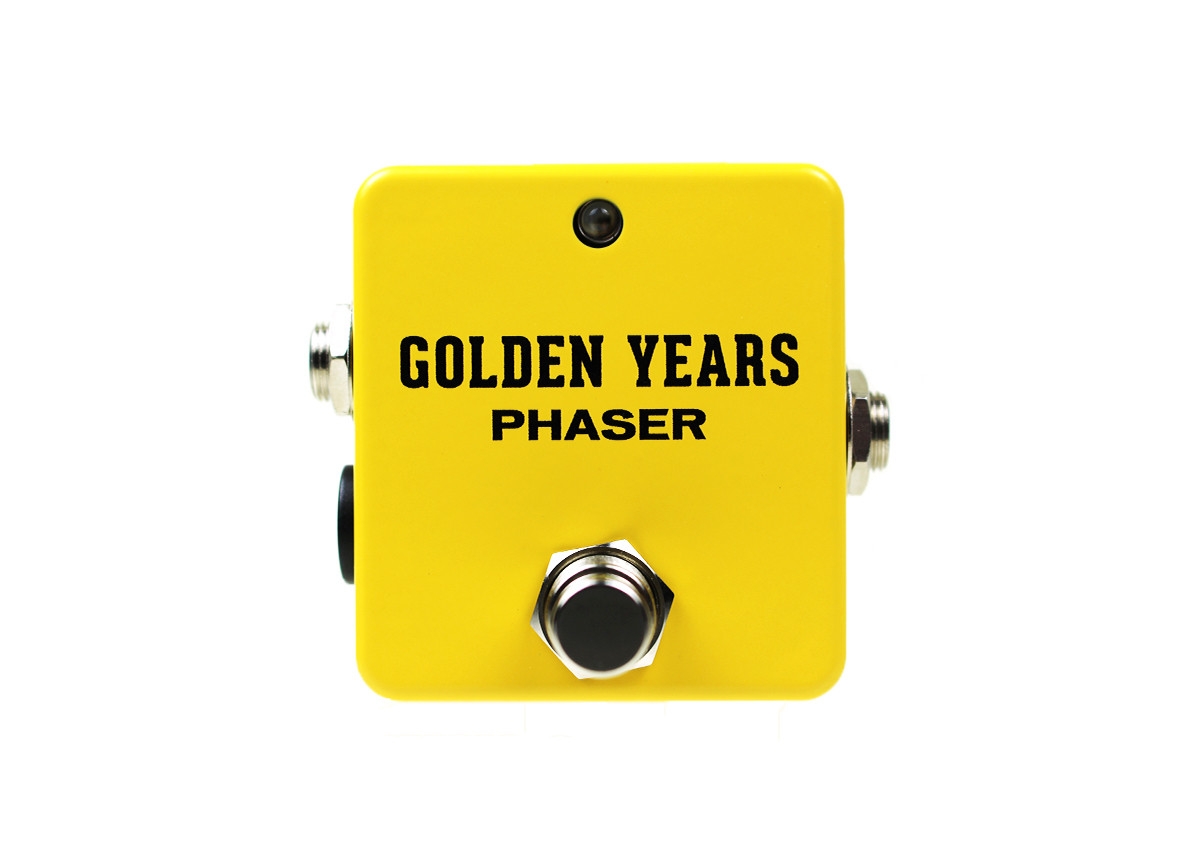

The Golden Years is housed in a tiny 2-1/8” x 2-5/16” enclosure that’s sure to squeeze onto any pedal board
Step on the footswitch to turn the pedal on and off
The LED lights up to indicate that the circuit is active
The powered circuit is completely removed (true bypass) from you signal chain when the pedal is off
SPEED – trimpot near the top right of the circuit board when foot switch is down and LED is up. This controls the speed of the phase shifting cycle and goes from very slow and subtle to fast and warbly
BIAS – trimpot near top left of circuit board when foot switch is down and LED is up. This control is factory set and should not be adjusted. If it gets moved by mistake, set the speed to fully clockwise, and sweep slowly through the bias trimmer’s travel until the effect is prominent. There is only a very small window where the effect is active
Power: You can only power Golden Years with an external power supply (9 VDC) with the commonly used center-negative barrel connector. The maximum current draw is 15mA.
