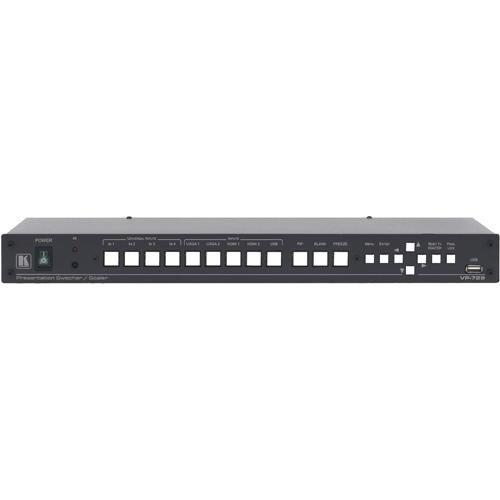

Kramer VP-729 9-Input ProScale Presentation Scaler/Switcher with Ethernet

The VP-729 9-Input ProScale Presentation Scaler/Switcher with Ethernet from Kramer can switch and scale analog & digital video, unbalanced stereo audio, and S/PDIF audio signals. More specifically, it will scale any composite, S-video (Y/C), component video (YUV), HDMI, computer graphics video, and JPEG files up or down to selectable HDTV output resolution.



This unit can switch or scale any composite, S-video (Y/C), component video (YUV), HDMI, computer graphics video.


It supports unbalanced stereo and S/PDIF audio


It can scale signals up or down


Output resolution is user-selectable


HQV (Hollywood Quality Video) processing offers de-interlacing, noise reduction, and scaling performance for bothstandard-definition and high-definition signals


Fade-Thru-Black (FTB) switching technology offers constant sync and fades to and from black for smooth, glitch-free switching


K-IIT XL technology offers picture-in-picture, picture-and-picture, and split-screen functionality


Projector Anywhere technology features horizontal & vertical geometry controls to compensate for off-axis projector placement


This unit is HDTV-compatible


Its HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output


It supports multiple standards: auto, NTSC (3.58/4.43), PAL (M/N/60) & SECAM.


HDTV output resolutions include 720p, 1080i, and 1080p


Aspect ratio is selectable: 4x3, 16x9, anamorphic, letter box, and user-definable settings


Companion AFV (Audio-Follow-Video) is available for every analog video input and embedded audio is supported on HDMI channels


A built-in, time-base corrector is designed to correct unstable video sources


ProcAmp controls for each input include: color, hue, sharpness, contrast, and brightness


Text overlay is a standard feature


This device includes a front-panel lockout feature


It offers front-panel freeze frame


Video blanking offers a blue or black selectable screen


Zoom is controllable from 100 to 400%


Control options include: front panel, IR remote control, Ethernet, and RS-232


A worldwide power supply of 100 to 240VAC ensures compatibility wherever it is used


This unit can be mounted in a standard equipment rack using the included rack ears




Inputs
(4) universal Y/CV, Pb/C, Pr (composite, S-video and component) 1 Vpp/75 Ohms on RCA connectors (2) UXGA on a 15-pin HD (female) connector (VGA through UXGA) (2) HDMI connectors (1) USB connector

* For each universal input there is a corresponding (unbalanced) audio stereo input and digital S/PDIF input on RCA connectors
* For each UXGA input there is a corresponding (unbalanced) audio stereo input on a 3.5mm mini jack connector



Outputs
(1) HDMI connector (1) UXGA on 15-pin HD connector (1) unbalanced audio stereo output on RCA connectors (1) digital S/PDIF output on an RCA connector


Standards
HDMI v1.3 HDCP


Output Resolution
Native HDMI 640 x 480 (60/75Hz) 800 x 600 (50/60/75Hz) 1024 x 768 (50/60/75Hz) 1280 x 768 (50/60Hz) 1280 x 800 (60Hz) 1280 x 1024 (50/60/75Hz) 1366 x 768 (50/60Hz) 1400 x 1050 (50/60Hz) 1600 x 1200 (50/60Hz) 1680 x 1050 (60Hz) 1920 x 1080 (60Hz) 1920 x 1200 (60Hz) 480p (60Hz) 576p (60Hz) 720p (50/60Hz) 1080i (50/60Hz) 1080p (50/60Hz) Custom


Control
Front panel buttons / OSD IR remote control Ethernet RS-232 on 9-pin D-sub connector Picture-In-Picture: video in graphics (or vice versa) in any size and at any location, or split-screen (2 images side-by-side)


Power
100 to 240VAC, 50/60Hz, 30VA


Dimensions (HxWxD)
1.75 x 19 x 7"


Weight
6.6 lbs (3kg)






Packaging Info


Package Weight
7.35 lb


Box Dimensions (LxWxH)
21.6 x 13.2 x 4.3"
