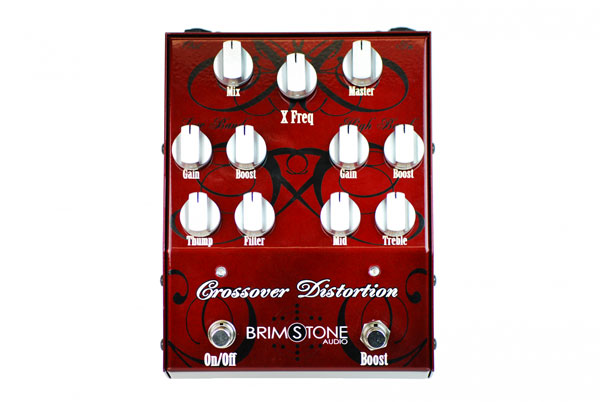

Brimstone Audio XD-1 Crossover Distortion

This 100% analog pedal is proudly made in California, U.S.A. Here’s what’s inside: two independent gain circuits, a continuously variable crossover, and a discreet mixer. The input signal is divided at the specified crossover frequency, sending the high frequencies to one gain circuit, and the low frequencies to the other. The highs and lows can then be treated (or mistreated) separately, with their own gain and uniquely designed EQ controls. The mixer section then recombines the signals prior to output, with ‘Mix’ and ‘Master’ controls to set the volume levels. This combination of circuits allows you to do the following:


create a tone with any amount of gain while eliminating intermodulation distortion
create a tone with cleaner hi’s and dirtier low’s, and vise-versa
simulate a multi-amplifier live setup
simulate a multi-track, layered studio sound
use as a high pass or low-pass filter
create virtually any distortion tone you can imagine


Brimstone Audio XD-1 Crossover Distortion Features:

sweepable steep slope active crossover
dual cascaded mosfet overdrive circuitry
metalized film capacitors throughout the audio path
neutrik input & output jacks
internal 18v power supply from 9v source
standard DC adapter or 9v battery
18g steel chassis (made in U.S.A.)
100% analog
made in California, U.S.A.
