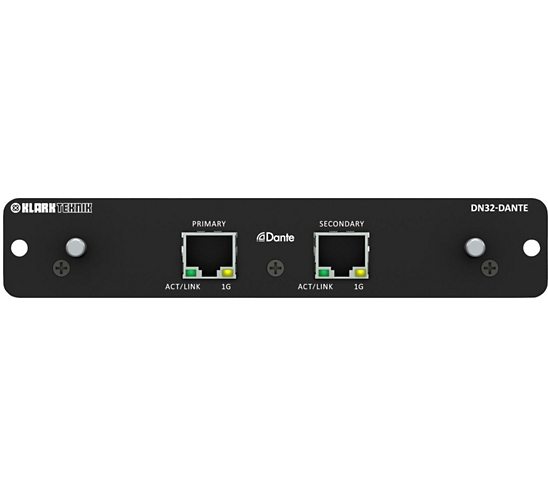

Klark Teknik DN32-DANTE 32-Channel Dante Expansion Card for M32 Console

OVERVIEW


Essential hub for X32 or M32.
The DN32-DANTE expansion card provides up to 32 channels of bidirectional, networked audio to your MIDAS M32 or BEHRINGER X32 mixing console for seamless integration with Dante enabled IP networks. Based on information technology standards, Dante provides uncompressed, multichannel digital media networking, with low latency and synchronization. By focusing on flexible interoperability on an existing IP network infrastructure, Dante has been widely accepted and adopted by many pro audio manufacturers.Connectivity and RedundancyDN32-DANTE features two Gigabit Ethernet ports connected through an internal switch. This allows the simultaneous merging of Ethernet remote control data for your console with bidirectional multichannel audio streams on the same cable. When both the primary and secondary interfaces are connected, the secondary serves as a redundant connection and is automatically activated should the primary connection become unavailable. Please note that Dante runs Gigabit or 100 MBit/s network infrastructure and requires QoS capable switches. Clock Synchronization and RoutingThe DN32-DANTE card features a high-precision word clock that can serve as the clock master for the Dante network and your console. Alternately, the console can provide the master word clock that is distributed to the Dante network. Dante supports Unicast and Multicast flows and allows for signal routings on a per-channel basis. Windows WDM and ASIO, and Mac OS X Core Audio are supported to ensure low-latency signal handling by your PC.




FEATURES

Audinate Dante* expansion module for MIDAS and BEHRINGER digital consoles
Up to 32 bidirectional channels @ 48 kHz
Enables multichannel recording and playback via Dante Virtual Soundcard* (PC or Mac* computer)
Primary and secondary Ethernet interfaces for dual-redundant Dante networking
Operates from internal Dante network Precision Time Protocol (PTP) clock
Optional Dante Controller software for remote configuration (PC or Mac* computer)
LED indicators monitor network activity and speed
