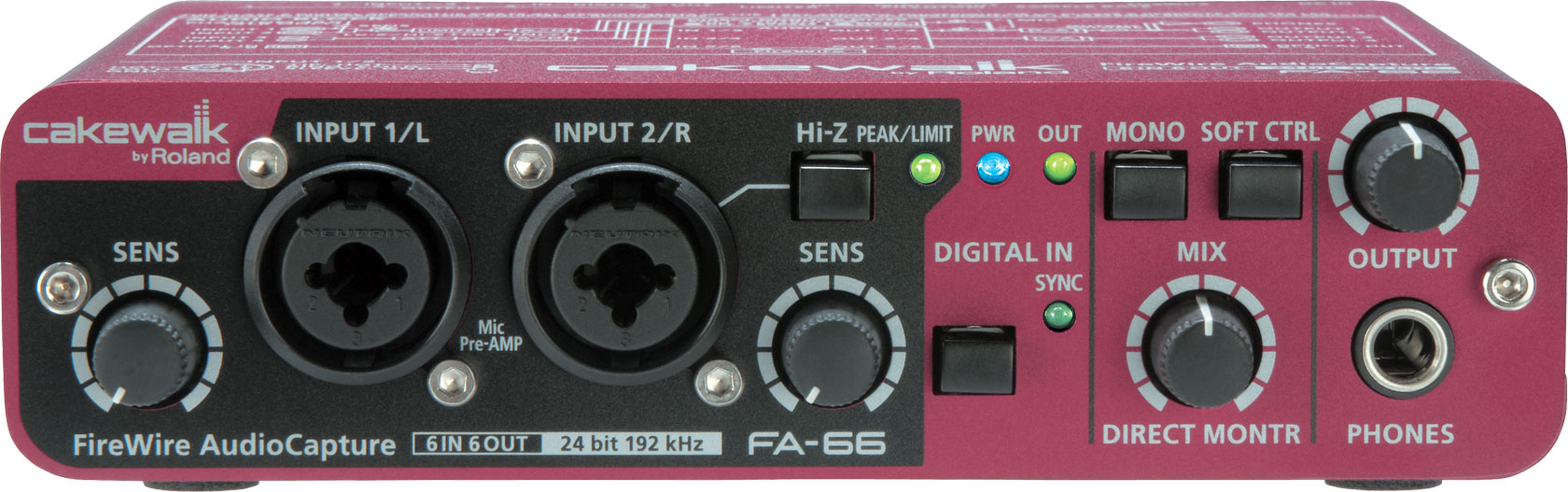

Edirol FA-66 6 x 6 FireWire Audio Interface

FA-66: FireWire Audio Interface
The FA-66 is a 6-channel portable FireWire audio interface designed with the mobile recording and performance professional in mind. The FA-66 offers incredible audio fidelity, stability, and a practical set of input and output options. It also offers two XLR/TRS combo inputs with phantom power, plus two RCA inputs, four balanced +4dBu outputs, optical S/PDIF I/O, a built-in analog limiter, zero-latency direct monitoring, solid metal construction, and FireWire bus power, all in a durable compact case.


6-in/6-out 24-bit/96kHz simultaneous performance
4-in/4-out 24-bit/192kHz simultaneous performance
2 XLR/TRS combo jacks w/premium phantom-powered mic preamps
+4 dB balanced input and output
S/PDIF optical input & output ports with Sync LED indicator
MIDI in/out ports
Built-in analog limiter and indicator
FireWire bus powered
AC adaptor included
Mac OS X CoreAudio and Windows XP WDM and ASIO 2.0 support
Zero-latency Direct Monitoring
6-pin and 4-pin IEEE1394 ports
Compact, solid-metal construction

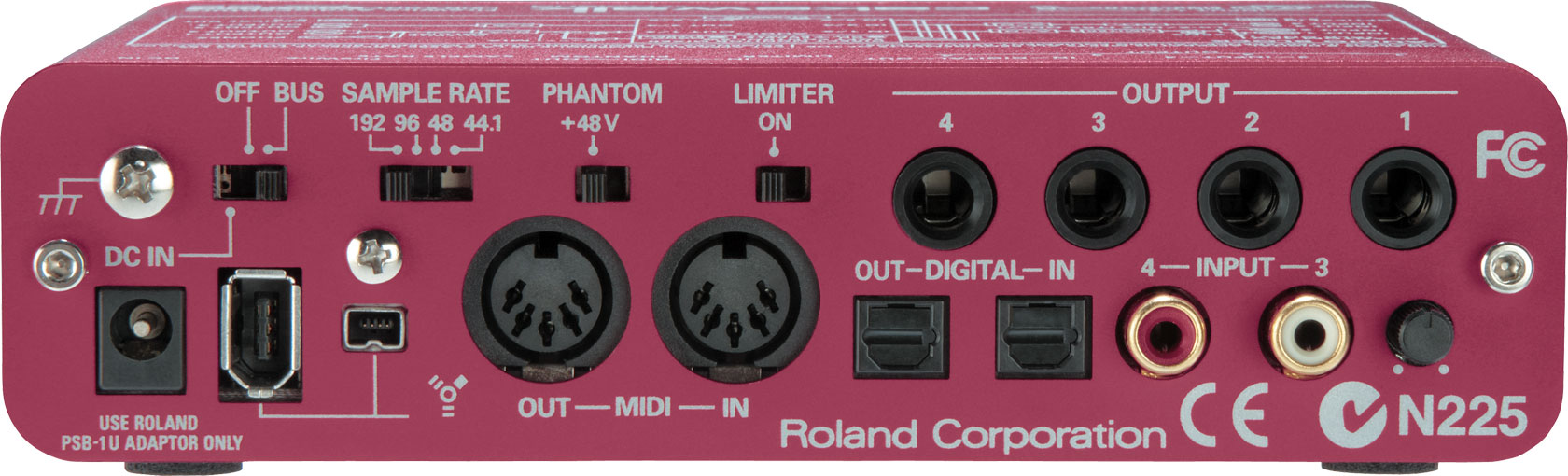

6-In/6-Out 24-bit/96kHz Simultaneous Performance Record and play back up to six channels at 24-bit/96kHz, or record and play back up to four channels at 24-bit/192kHz. Variety of I/O Options Record from a variety of sources through the plethora of input and output connectors on the FA-66: 2 XLR/TRS combo inputs with phantom power, Hi-Z (Guitar) switch on input 2, stereo RCA inputs, S/PDIF optical I/O, four individual analog outputs, 1/4" stereo headphone out, and MIDI I/O. 2 XLR/TRS Combo Jacks w/Premium Phantom-Powered Mic Preamps The FA-66 is a completely portable recording solution with ultra-clean, high-gain microphone preamps and premium analog components. It's perfect for home-studio and field-recording applications. Built-in Analog Limiter Prevent clipping in your recordings. Get high-quality live recordings with a wide dynamic range. FireWire Bus Powered for Mobile Use No AC adaptor required! Just connect one FireWire (6-pin to 6-pin) cable to your laptop to create a high-quality field recorder. For your desktop use, the FA-66 package comes with an AC adaptor. Mac OS X Core Audio, WDM, & ASIO 2.0 Support Compatible with Mac OS X standard CoreAudio. In addition, the FA-66 comes with WindowsXP WDM and ASIO 2.0 drivers for ultra-low latency with most audio applications. Zero-Latency Direct Monitoring Listen to audio being recording directly without routing through software. The FA-66's Direct Monitoring function allows the input to go straight to the output for zero-latency monitoring. The FA-66 also offers ultra low latency when monitoring through software or performing with software synths through the Apple CoreAudio driver as well as the WDM/ASIO 2.0 drivers for Windows XP. Compact, Solid Metal Construction The FA-66 packs Cakewalk’s latest audio technology in a small, durable case for the ultimate in reliable, portable FireWire audio recording.
SPECNUMBER OF AUDIO RECORD/PLAYBACK CHANNELS44.1/48/96 kHzRecord: 6 channels Playback: 6 channels Full duplex192 kHzRecord:4 channels Playback: 4 channels Full duplexSIGNAL PROCESSINGPC interface24 bitsAD/DA Conversion24 bits (linear)SAMPLING FREQUENCYDigital output44.1/48/96 kHzDigital input44.1/48/96 kHzAD/DA Conversion44.1/48/96/192 kHzFREQUENCY RESPONSE96.0 kHz20 Hz to 40 kHz (+0/-2 dB)48.0 kHz20 Hz to 22 kHz (+0/-2 dB)44.1 kHz20 Hz to 20 kHz (+0/-2 dB)NOMINAL INPUT LEVELInput Jack 1--2 (XLR type)-50 to -10 dBuInput Jack 1-2 (1/4 inch TRS phone type)-35 to +4 dBuInput Jack 3-4-10 dBu to ∞(balanced)NOMINAL OUTPUT LEVELOutput Jack 1-4+4 dBu (balanced)RESIDUAL NOISE LEVELOutput Jack 1-2-95 dBu (input terminated with 1 k ohms, MAIN VOLUME: 0 dB, INPUT SENS: +4 dBu, DIRECT MONITOR VOLUME: OUT1/2 position, IHF-A typ., Balanced)S/N RATIO (TYPICAL)OUTPUT105 dBINPUT102 dBINTERFACEFirewire (IEEE1394) Digital input/output (Optical type, conforms to IEC60958) MIDI IN/OUTCONNECTORSFront PanelInput Jack 1-2 (XLR type / 1/4 inch TRS phone type) XLR type (balanced / phantom power +48 V) 1/4 inch TRS phone type (balanced) Digital In Connector (Optical type) Digital Out Connector (Optical type) Headphones Jack (Stereo 1/4 inch phone type)Rear PanelInput Jack 3-4 (RCA pin type) Output Jack 1-4 (1/4 inch TRS phone type (balanced)) MIDI Connectors (In, Out) FireWire Connectors (6 pins type, 4 pins type)OTHERSPower SupplyDC 9 V (AC adaptor) / FireWire Bus PowerCurrent Draw650 mAAccessoriesOwner's Manual Driver CD-ROM AC Adaptor FireWire cable (6 pins to 6 pins) FireWire cable (6 pins to 4 pins)SIZE AND WEIGHTWidth164 mm6-1/2 inchesDepth148 mm5-7/8 inchesHeight44 mm1-3/4 inchesWeight0.7 kg1 lbs. 7 oz. THTH : www.music-blvd.com
