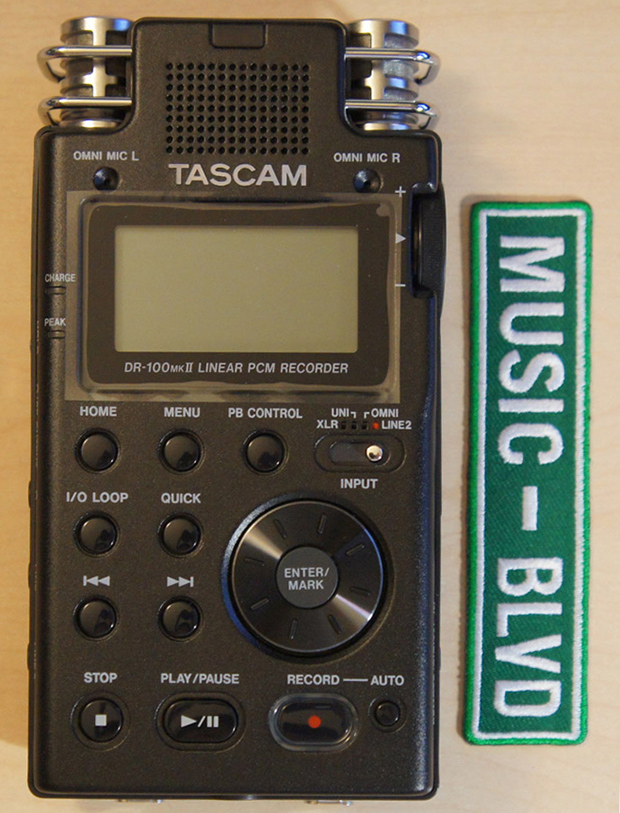

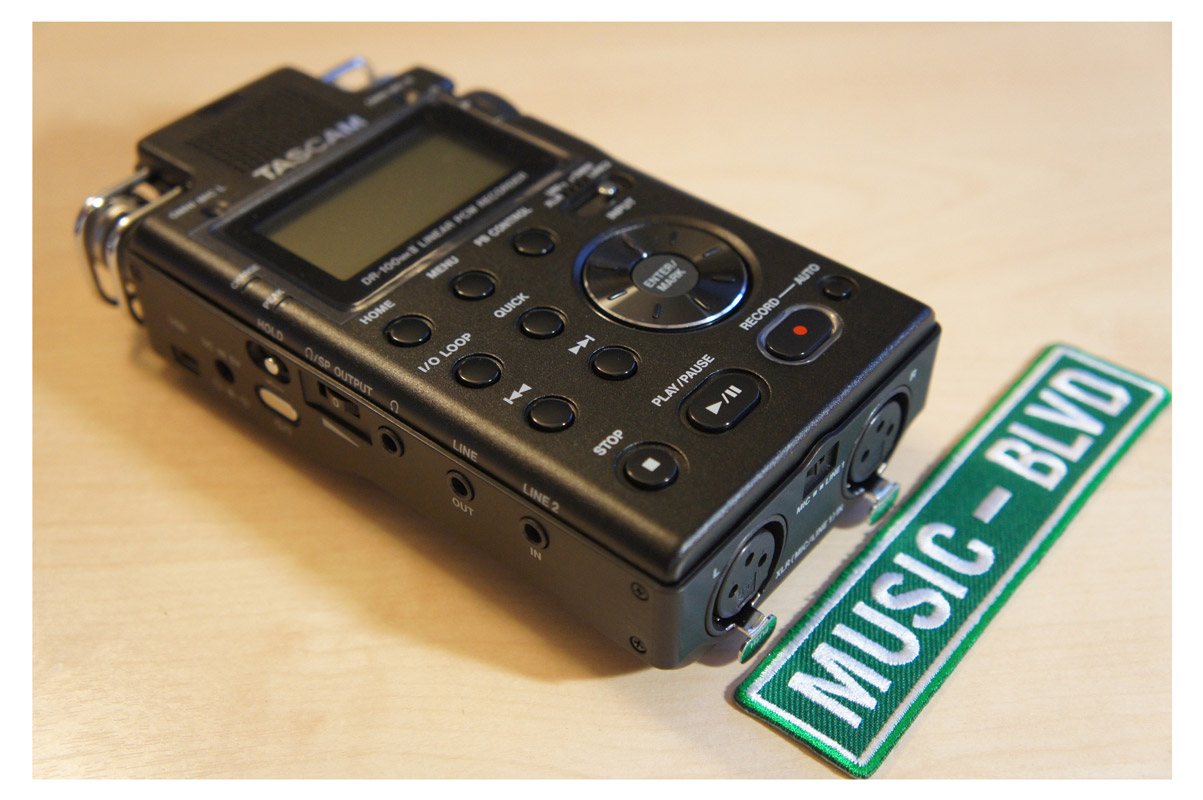

TASCAM DR-100 MKII Portable Digital Recorder

Extremely handy, high-end digital recorder that will always be within reach in the field.

The rugged TASCAM DR-100 offers high-end recording features to musicians and engineers who demand more from their portable recorder. It features four built-in microphones, two cardioid and two omnidirectional, with analog limiting and filtering that will have you producing great-sounding recordings no matter where you are. A pair of XLR microphone inputs with phantom power welcomes pro-grade condenser microphones, and line in and out connectors are also provided. The DR-100 includes a rechargeable Lithium-ion battery, but can also be powered by AA batteries or an optional AC adapter. A built-in speaker allows for instant playback, and the metal enclosure includes a tripod-mounting hole for recording flexibility. A wireless remote control is also included for remotely starting the recording, as well as a windscreen and carrying case.


Features

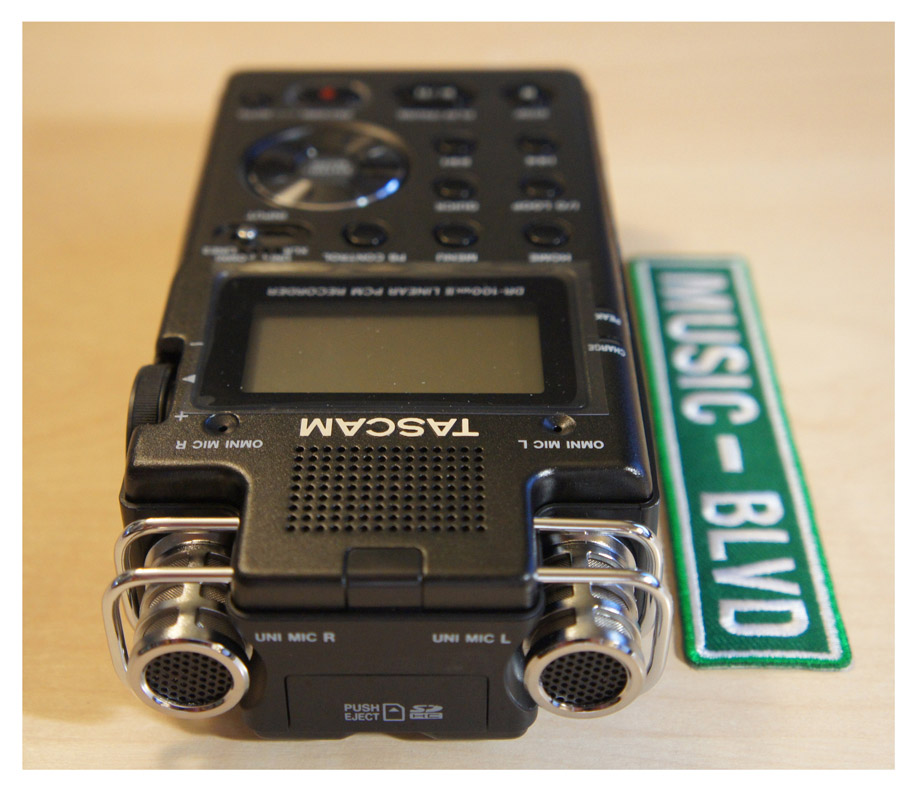

Four built-in microphones – 2 stereo cardioid and 2 omni condenser Mics
44.1k to 96k sampling rates for WAV file recording
XLR Mic Inputs with phantom power and high-performance microphone preamp with 60dB of gain, so you can add your own mic for recording
Premium AKM Audio4Pro A/D converters with over 100dB signal to noise ratio
3.5mm Line Inputs and Outputs
Low Cut Filter, Analog Limiter and Auto Gain Control
Built-in Speaker to monitor recordings in the field
Integrated microphone stand mount that allows you to operate the unit hands free
Runs on Rechargeable Li-Ion Battery or AA Batteries




You can have precision digital recording in the palm of your hand, with the DR-100 MKII from Tascam.
DR-100 MKII Portable Digital Recorder Specifications:


XLR MIC IN (L, R) inputs
Connectors: XLR-3-32equivalent (balanced)
Input impedance: 1.2k-ohms
GAIN HIGH setting
Standard input level: -58 dBu
Maximum input level: -42 dBu
GAIN MID setting
Standard input level: -36 dBu
Maximum input level: -20 dBu
GAIN LOW setting
Standard input level: -14 dBu
Maximum input level: +2 dBu

LINE IN input

Connector: 3.5 mm stereo minijack
Input impedance: 23k-ohms
Standard input level: -10dBV
Maximum input level: +6dBV

LINE OUT output

Connector: 3.5 mm stereo minijack
Standard output level: -10dBV
Maximum output level: +6dBV

Output

Connector: 3.5 mm stereo minijack
Maximum output: 25mW + 25mW (with 32 Ω headphone connection)
Built-in speaker output: 0.4 W

AUDIO PERFORMANCE

Frequency response (LINE IN > LINE OUT): 20Hz–20kHz, +1/-3dB (44.1kHz) 20Hz–22kHz, +1/-3dB (48kHz)
Distortion (LINE IN > LINE OUT): Less than 0.01%
S/N ratio (LINE IN > LINE OUT): 90dB or more

Compatible audio files:

MP3 files: 32–320 kbps, sampling frequency 44.1/48kHz, VBR playback, ID3 tag support up to Ver 2.4
WAV files: sampling frequency 44.1/48kHz, bit length: 16/24-bit
Recording media: SD cards (64 MB–2 GB) and SDHC cards (4 GB–32 GB)
File system: FAT partition: FAT16/32

Battery life (continuous operation):


Lithium ion battery (BP-L2): About 5 hours (recording time) / About 5 hours (playback time)


Ni-MH batteries (HR15/51): About 4 hours (recording time) / About 4 hours (playback time)


Alkaline batteries (LR6): About 2 hours (recording time) / About 2 hours (playback time)


(Backlight off, set to 128-kbps mp3. Varies according to use conditions.)


Operation temperature range: 0–40 deg. C


Power consumption:


1.7W (MP3 playback)


5.5W (maximum)


External dimensions (WxHxD): 3-1/8” x 6” x 1-3/8”

Weight: 290 g (not including batteries)

COMPUTER REQUIREMENTS
Windows:


Pentium 300 MHz or better
128 MB or more memory
USB port (USB 2.0 recommended)

Macintosh:

266 MHz Power PC, iMac, G3, G4 or better
64MB or more memory USB port (USB 2.0 recommended)
Recommended USB host controller: Intel chipset

Supported OS:

Windows: Windows 2000 Professional SP4 or newer, Windows XP, Windows Vista
Macintosh: Mac OS X 10.2 or newer
