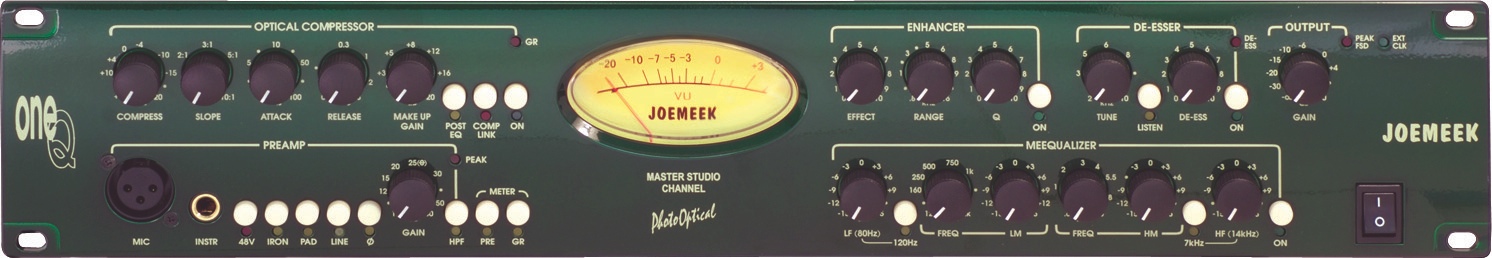

Joemeek oneQ

Classic Optical Compression!
Perfect for project and professional studio owners alike, Joemeek's oneQ gives you everything you'd expect from a premium channel strip — and a whole lot more! Everything starts with a clean mic pre that is switchable to a more vintage-styled "Iron" setting with special transformer coupling. Next up, you've got a highly musical 4-band EQ to start shaping the sound. Dial out the sibilance with the onboard de-esser. But here's the real show stopper: the legendary Joemeek optical compressor! That's right; the same sound that made Joemeek gear famous is right here inside the oneQ. Joemeek pushed it one step further by including a wide variety of digital I/O on the back. Both the analog purist looking for a new variety of color and a digital enthusiast chasing vintage vibe will find the Joemeek oneQ a welcome addition to their racks! Joemeek oneQ Channel Strip Features at a Glance:

Ultra-clean microphone preamplifier with "Iron" (switches to transformer coupling)
Highly musical 4-band EQ with Sweep LM and HM, selectable LF and HF
Full-featured optical compressor with compressor link for stereo applications
De-esser with listen function for quick, precise elimination of sibilance
Large, accurate VU metering for quick monitoring of level and gain reduction
Harmonic Enhancer adds definition without gain increase
Front and rear XLR inputs
Front-panel instrument input to use as a DI during sessions
24-bit/96kHz A/D converters with AES/EBU, S/PDIF, optical, and word clock
Comp Link feature: Link two oneQs for stereo compression
Mic impedance: 1.2 Kohm
Line impedance: 20 Kohm
Instrument impedance: 2 Mohm
Preamp overall gain: 10dB to 60dB (variable)
Common mode rejection: 70dB
Equivalent input noise: -128.5dBu (unweighted)
Distortion: 0.001% (below compressor threshold)
Frequency response: 15Hz-70kHz (-3dB)
Maximum input before clipping: Mic: +21dBu; Line: +45dBu; Instrument: +21dBu
Headroom before clipping: +21dBu
Highpass filter: 12dB per octave cut below 80Hz
Compressor threshold: +∞dBu to -20dBu (variable)
Compressor ratio: 1:1 to 10:1 (variable)
Compressor attack time: 1 ms to 100 ms (adaptive)
Compressor release time: 0.1 sec to 3 sec (adaptive)
Compressor make-up gain: 0dB to 20dB (variable)
EQ boost & cut: +/-15dB (zero phase-shift bell response)
LF frequency: 80Hz/120Hz (selectable)
LMF frequency: 120Hz to 2kHz (variable)
HMF frequency: 600Hz to 10kHz (variable)
HF frequency: 7kHz/14kHz (selectable)
EQ "Q": 0.9 (1.6 octaves)
Output gain: -∞dBu to +10dBu (variable)
Nominal output levels: +4dBu/-10dBv (selectable)
Output impedance: 100 ohm
Output level switch: 12dB attenuation
Noise floor: -85dBu (typical, with ~40dB mic gain)
VU meter: Analog movement
Power supply: 115V/230V AC mains, 50/60Hz
Power consumption: 30 watts

The world-famous Joemeek optical compressor and a whole lot more: the oneQ!

*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
