Hear Technologies Hear Back Four Pack

Monitor Mix for Everyone in the Band
The Hear Back system changes the way monitor mixing is accomplished on stage or auditorium - as well as, in the studio! Imagine getting your mix exactly the way you want it. With the Hear Back, you save time and get the sound just right, the first time. This affordable system is perfect for headphones, wired and wireless in-ear monitors, and/or conventional floor monitors!
Hear Back Four Pack at a Glance

Hear Back Hub with multiple inputs

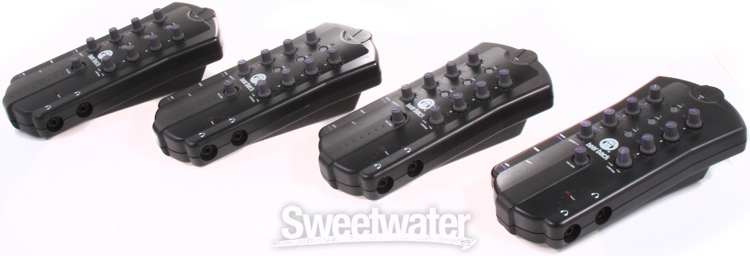

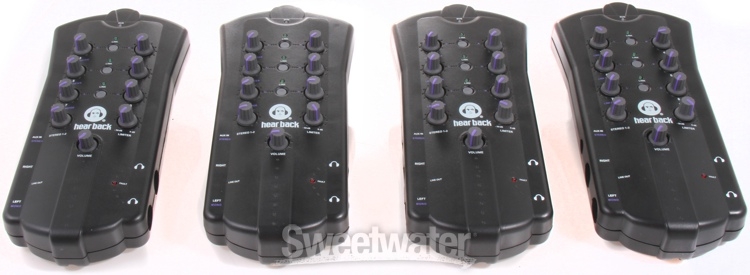

Four Hear Back Mixers for personal mixing on stage or in the studio
Incredible value with an "all-in-one" attitude

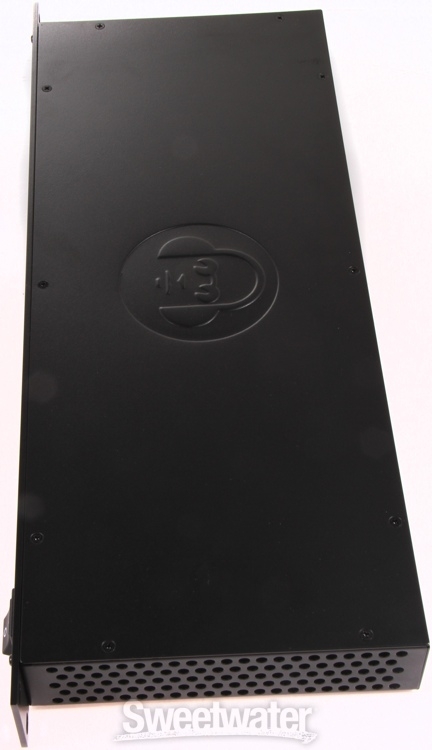

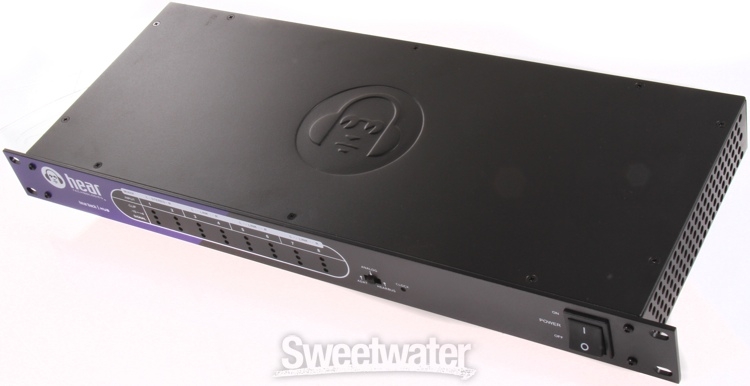

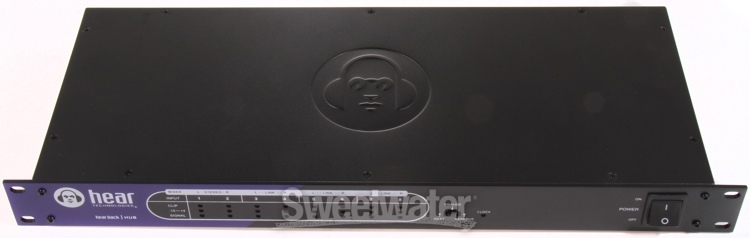

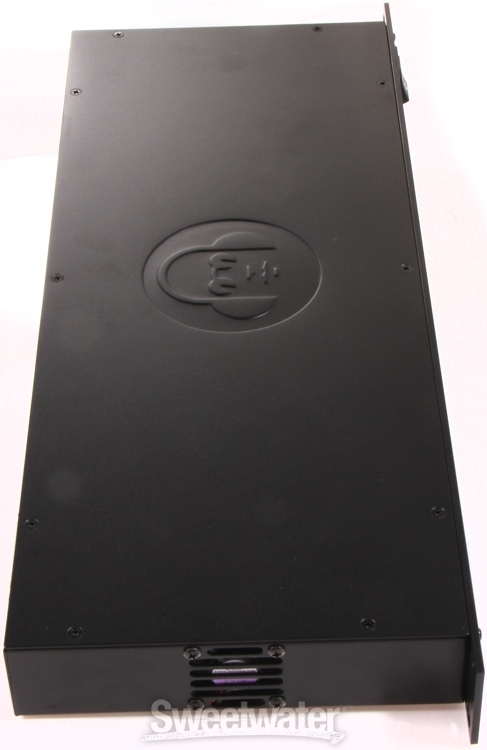

Hear Back Hub

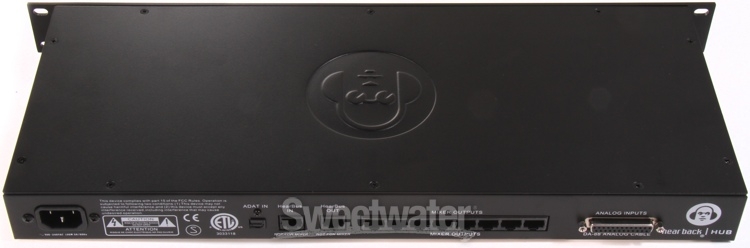

A single Hub supplies signal and power to a maximum of eight (8) Mixers - this bundle includes four (4) Mixers. That's one for you and three more for other members in the band! You can always purchase more Mixers (again, up to eight) if the need arises. If that's not enough, the Hubs can be daisy-chained using the HearBus In and Out for virtually unlimited system size. The Hub supports 8-channels of ADAT lightpipe or analog via DB-25 input. It couldn't be any easier!
Hear Back Hub Features:

Three switch selectable 8-channel input sources:- ADAT Optical- Analog- HearBus
24-bit A/D converters
Digital inputs: 44.1KHz and 48kHz sample rates
Less than 1.5 milliseconds system delay
3-LED four-level metering
Standard CAT5E - delivers power and signals to mixers
Daisy-chain for very large systems
Internal universal input power supply
1 RU chassis

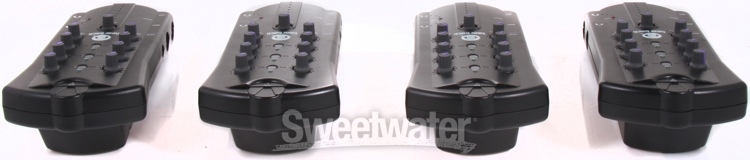

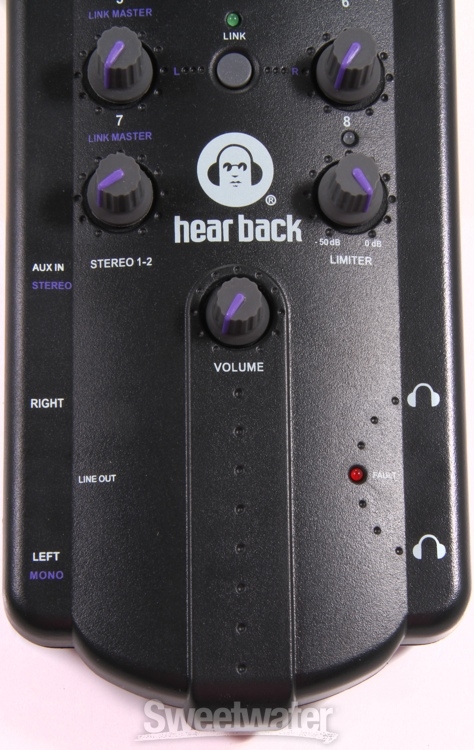

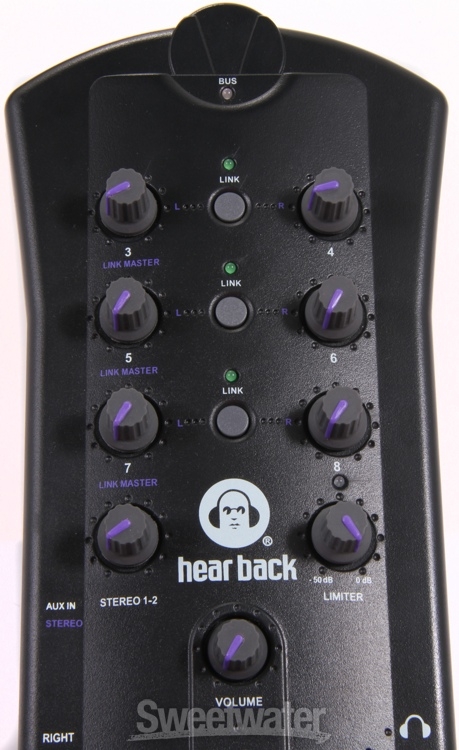

Hear Back Mixer

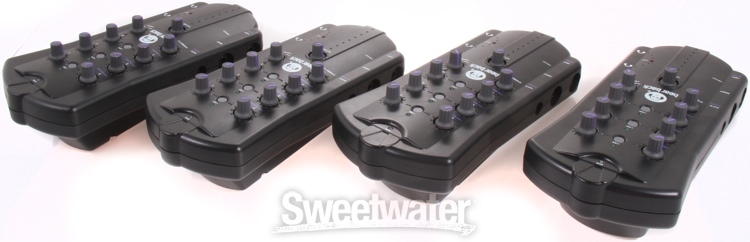

The Hear Back Mixer is your personal control surface that allows you to create YOUR OWN monitor mix - live! The Mixer features 10-channel control, 8 incoming signals and your own monitor volume. You also have control over the built-in DSP Limiter (designed as a "brick wall" limiter for hearing protection and to protect monitor wedges from overload). Also, for convenient on-stage or in the studio use, the Mixer offers a built-in standard threaded mic stand mount! Each Mixer is connected to the Hub via affordable and easily available Cat 5ee cables. Total control of your own mix - that's the Hear Back system.
Hear Back Mixer Features:

Local control up to ten channels of audio
Master volume
Built-in DSP limiter
24-bit D/A converters
Less than 1.5 millisecond
total system delay
Bus status indicator
Headphone amplifier fault indicator
Link indicators
Standard Cat 5ee power and
signal connection
Balanced line outs, mono/stereo
Stereo AUX in: Expand numbers of mixers or drum module/metronome input

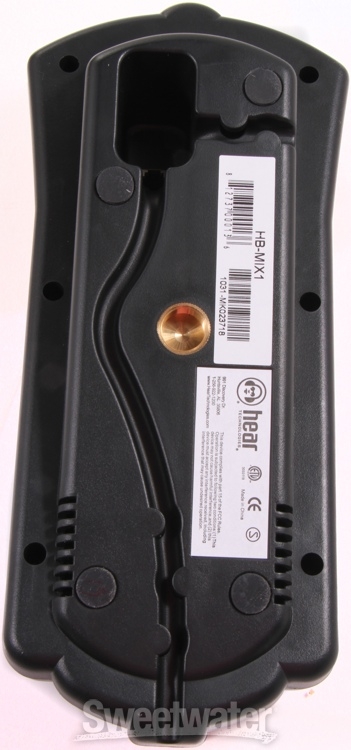

Built-in standard threaded mic stand mount

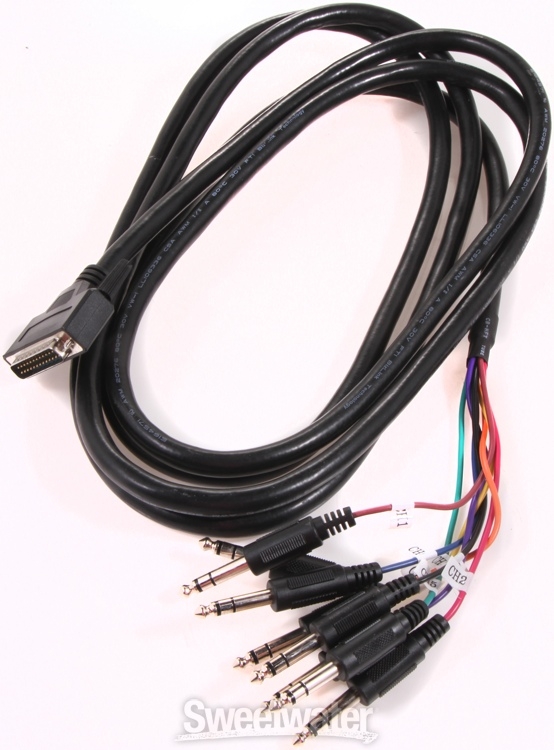

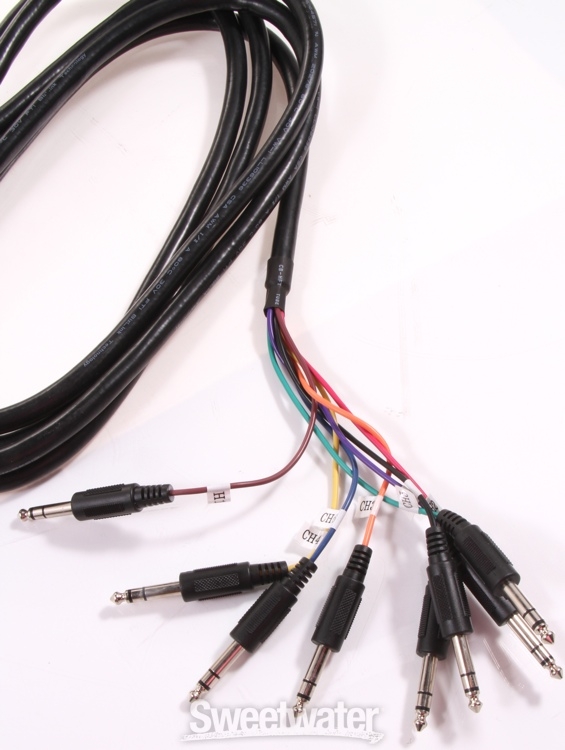

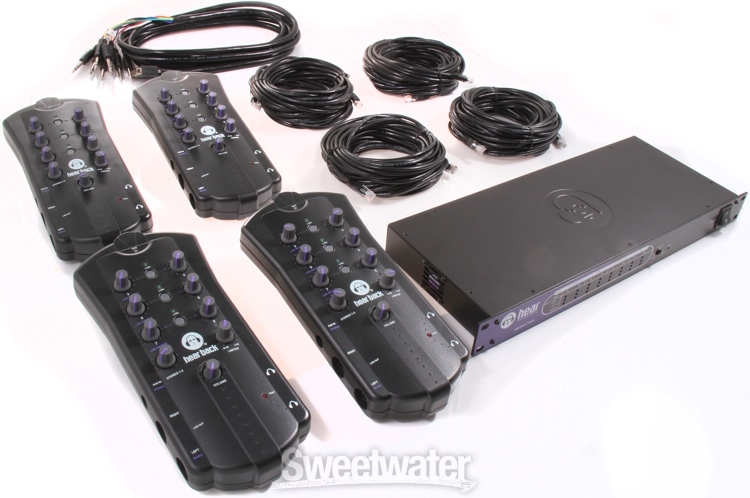

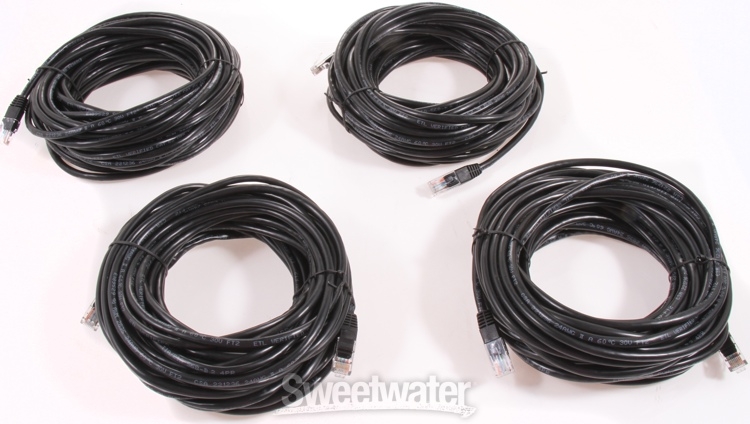

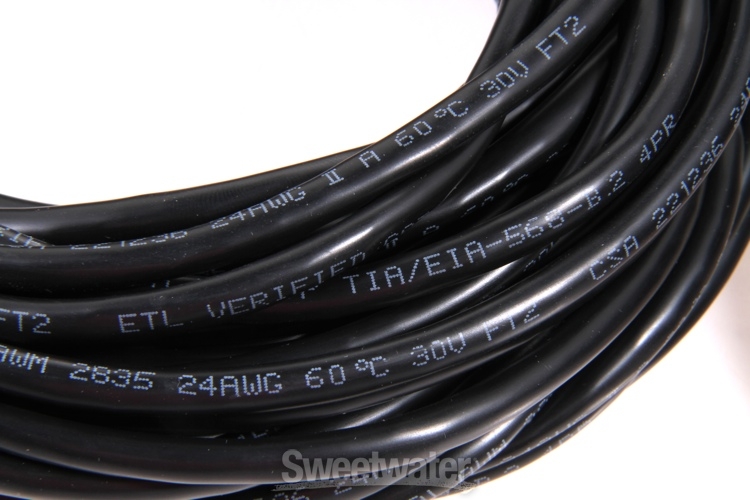

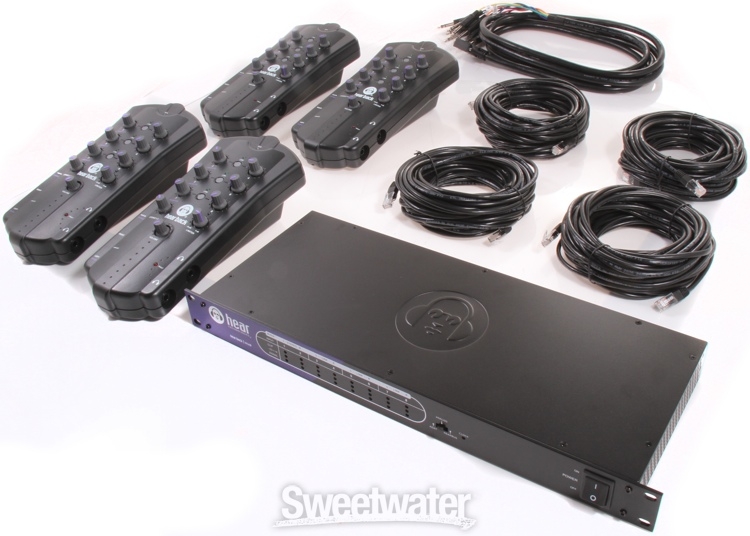

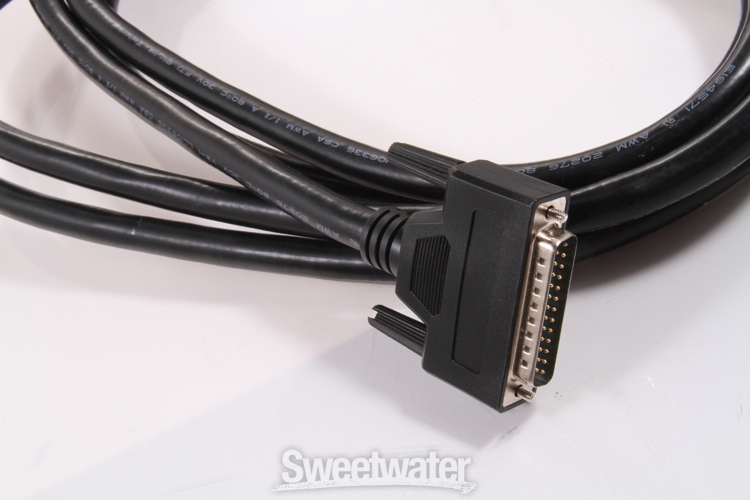

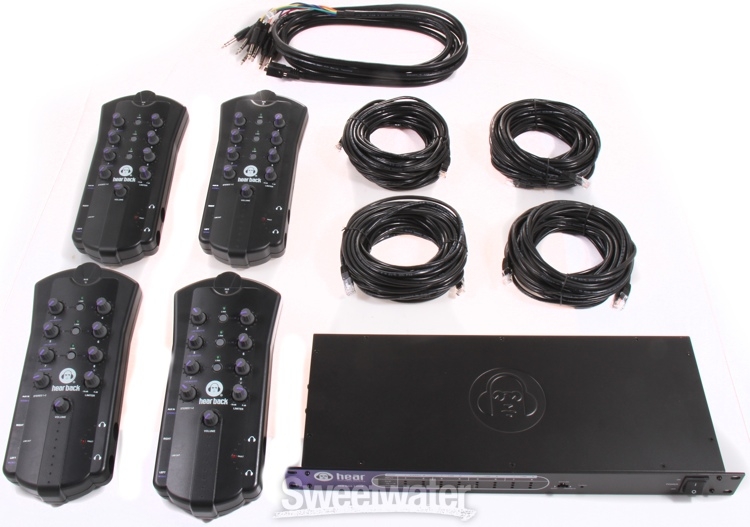

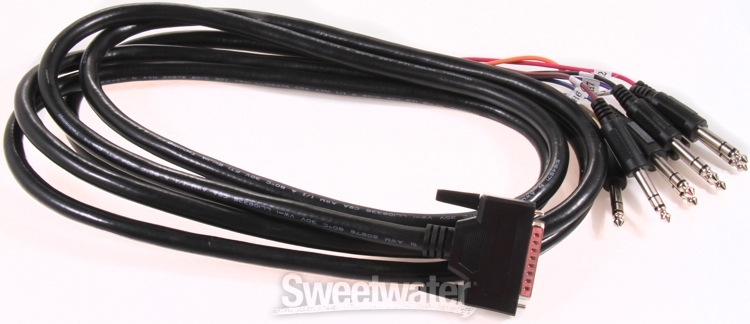

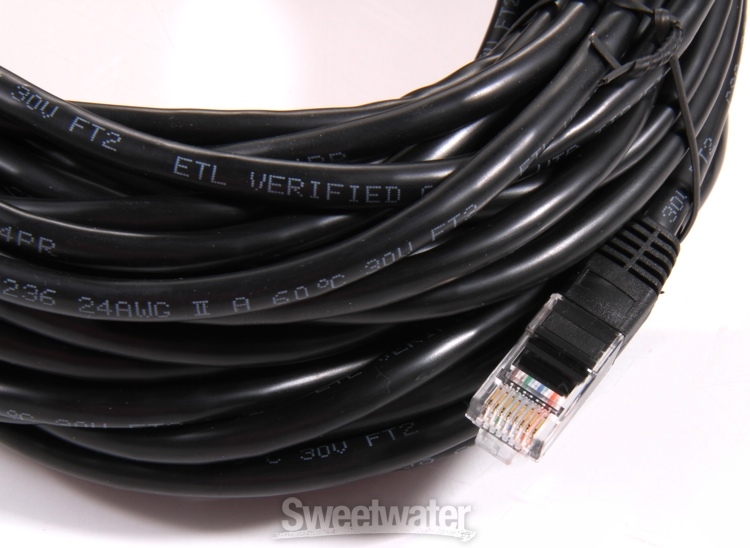

The Hear Back Four Pack includes four (4) Mixers, one (1) Hub, four (4) FREE 50 foot Cat 5ee cables, and one (1) FREE Hear Back analog DA-88 style cable saving you a total of $130.00!
Hear Back Four Pack Features:

Virtually unlimited system size
Very attractive pricing
Excellent audio fidelity
Built-in DSP Limiter
Very long digital lines possible without loss of audio quality
Audio inputs ADAT, analog, and the HearBus are switch selectable from the front panel.
Local control of up to ten channels of audio (8 inputs plus a stereo Aux input) Master Volume (controls the level to the headphones, line outs and the Aux input to the line outputs)
Built-in DSP Limiter (designed as a "brick wall" limiter for hearing protection and to protect monitor wedges from overload)
Headphone amplifier fault indicator in case of over temperature, or a short, the red LED comes on to alert the user something is a problem.
A second visual trouble shooting aid for the user is the Bus status indicator
Link Indicators - Whenever two pairs of mono inputs are linked for stereo operation the link LED is illuminated
Standard Cat 5ee power and signal Connection, cost effective, simple, non-obtrusive way to connect eight channels of audio. The Cable is held in place with a "built-in cable strain relief"
Balanced Line-Outs, Mono/Stereo
Stereo AUX In
Built-in Mic Stand Mount may be mounted to a standard mic stand or clipped onto a stand extension bar or clip
High Power - Low Distortion Headphone Amplifiers

Hear Back4 pack - One of the industry's most powerful headphone amplifiers!


Tech Specs



Form Factor
Desktop


Manufacturer Part Number
HB4
