Ocean HR4 Reference Monitor

OVERVIEW

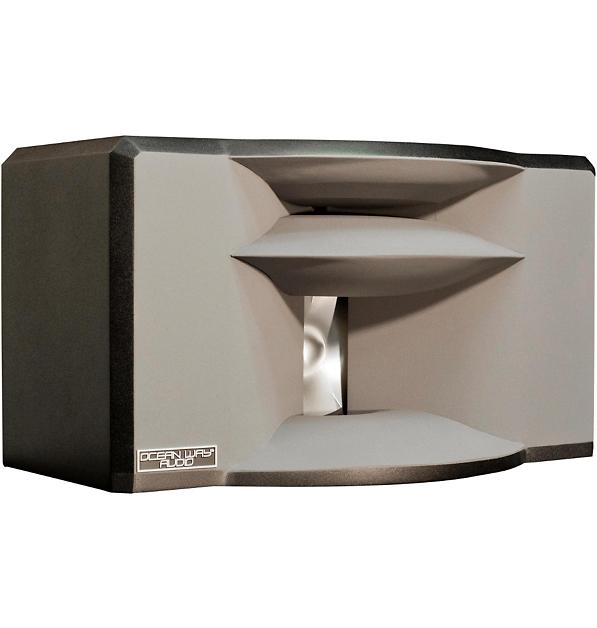

Ocean Way Audio has released an accurate, wide dynamic range reference monitor for the recording studio environment. The HR4 Reference Monitor is a 24”, integrated 2-way dual-horn system that can be placed in any environment to provide an exceptionally accurate monitoring experience.
At the heart of the acoustic design is HR4’s dual/hybrid waveguide system delivering a 100×40 degree window. Its unique design is realized with the aid of high-grade, 3D solid modeling. This accurate process allows for creating geometrically-complex surfaces that create accurately-matched and detailed imaging within the system. As a result, the HR4 delivers a stunning 100-degree dispersion pattern over a very wide audio range. An unusually-wide horizontal sweet-spot is revealed with rich detail across a broad area of the listening environment. The consistency of its stereo image, even at the far corners of the room, is delivered due to the highly consistent directivity response of the speaker system.
The HF driver is a high-definition design with excellent mechanical linearity. The LF driver is geometrically reinforced aluminum cone with a vented cast aluminum chassis yielding optimum strength and low compression. Combined with the sealed cabinet, the system is tuned to perfection with a seamless transition between the drivers. Ocean Way's 2-way, self-powered design delivers an unprecedented level of performance allowing for flexibility of placement in the room with a matched uniform frequency response of 35Hz to 25kHz, and an extraordinary 116 dB maximum SPL between channels. In spite of the HR4’s minimal footprint, its exceptional low frequency response eliminates the need for a subwoofer.

Proprietary 2-way compression-driven hybrid horn/waveguide system.



FEATURES General

Size: Mid-field
System type: Active
Configuration: 2-way
Drivers
Low-frequency driver: 8"
Mid-frequency driver: Not applicable
High-frequency driver: 1"
Full-range driver: Not applicable
Driver type: Aluminum cone
Sound
Frequency response: 35Hz – 25kHz
Max peak SPL: 116 dB
Amplifier class: Info not available
Output power: 125W
Onboard Features
Input connectors: Digital
Standby mode: No
Acoustic space control: No
Power indicator: No
Other
Width: 24"
Height: 14"
Depth: 14"
Weight: 45 lb.



Incredibly accurate, with an ultra-wide sweet spot. Order the HR4 today!
