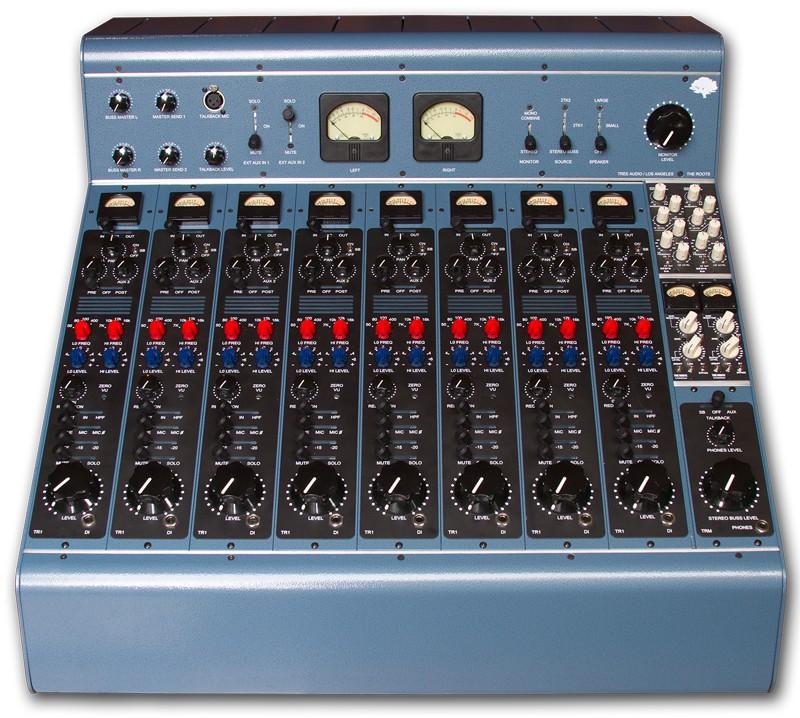

Tree Audio Roots Console - 8 Channel

Tree Audio The Roots Console Features:

All tube EQ and limiter on each channel
4 slots for 500 Series modules
Vacuum tube regulated supply for all tube input modules


Input Module Features:

Meter
Meter select (input, gain reduction, output)
Pan
Stereo buss switch (removes signal from stereo buss for direct out)
Aux send 1
Aux send 2
Pre, off, post switch
Lo Freq EQ - 50 Hz, 80 Hz, 100 Hz ,400 Hz
Hi Freq EQ - 7K, 10K, 12K, 16K
Gain reduction pot (limiter)
Limiter switch (out, in , HPF) 250 HZ 12DB per octave
Line, mic, mic reverse phase
Pad switch (off, -10, -20)
Mute, on , solo
Big knob level pot


Meter Bridge


Buss Master 1 & 2
Aux master 1 & 2
Talkback mic XLR
Talkback level
External Aux in 1 (mute, on, solo)
External Aux in 2 (mute, on, solo)
Monitor
Source Select
Speaker Select
Big knob monitor level


Rear Panel

Mic in, line in, direct out
Phantom power switch (all modules and talkback mic)
Master section ins and outs
Control room monitor outputs
If used as a direct out with no bussing, all pure transformers and tubes
When use thru the bussing, Inward Connections SP690 all discrete blocks







Additional Information







Condition
New


Channels
8-Channel


Analog or Digital
Analog


Number of Buses
2


Number of Aux Sends
2


Direct Outputs
Yes


DAW Control
No


Automation Included
No


Patch Bay Included
No
