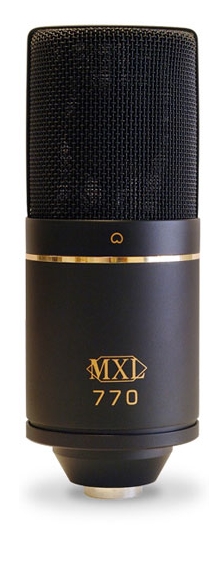

MXL 770 Condenser Microphone

Specs




Type:

Pressure gradient condenser microphone



Diaphragm:

6 micron gold-sputtered



Capsule Size:

22mm/.87 in.



Frequency Response:

30Hz – 20kHz



Polar pattern:

Cardioid



Sensitivity:

15mV/Pa



Output Impedance:

150 ohms



Pre-Attenuation Switch:

0 dB, -10 dB



High Pass Filter:

6 dB/octave @ 150Hz



Equivalent noise:

20 dB (A-weighted IEC 268-4)



S/N Ratio:

74 dB (Ref. 1 Pa A-weighted)



Max SPL for .5% THD:

137 dB



Power Requirements:

48V phantom power (+/- 4V)



Size:

59mm x 158mm/2.32 in. x 6.22 in.



Weight:

1 lb/453.59g



Metal Finish:

Black with black grill
