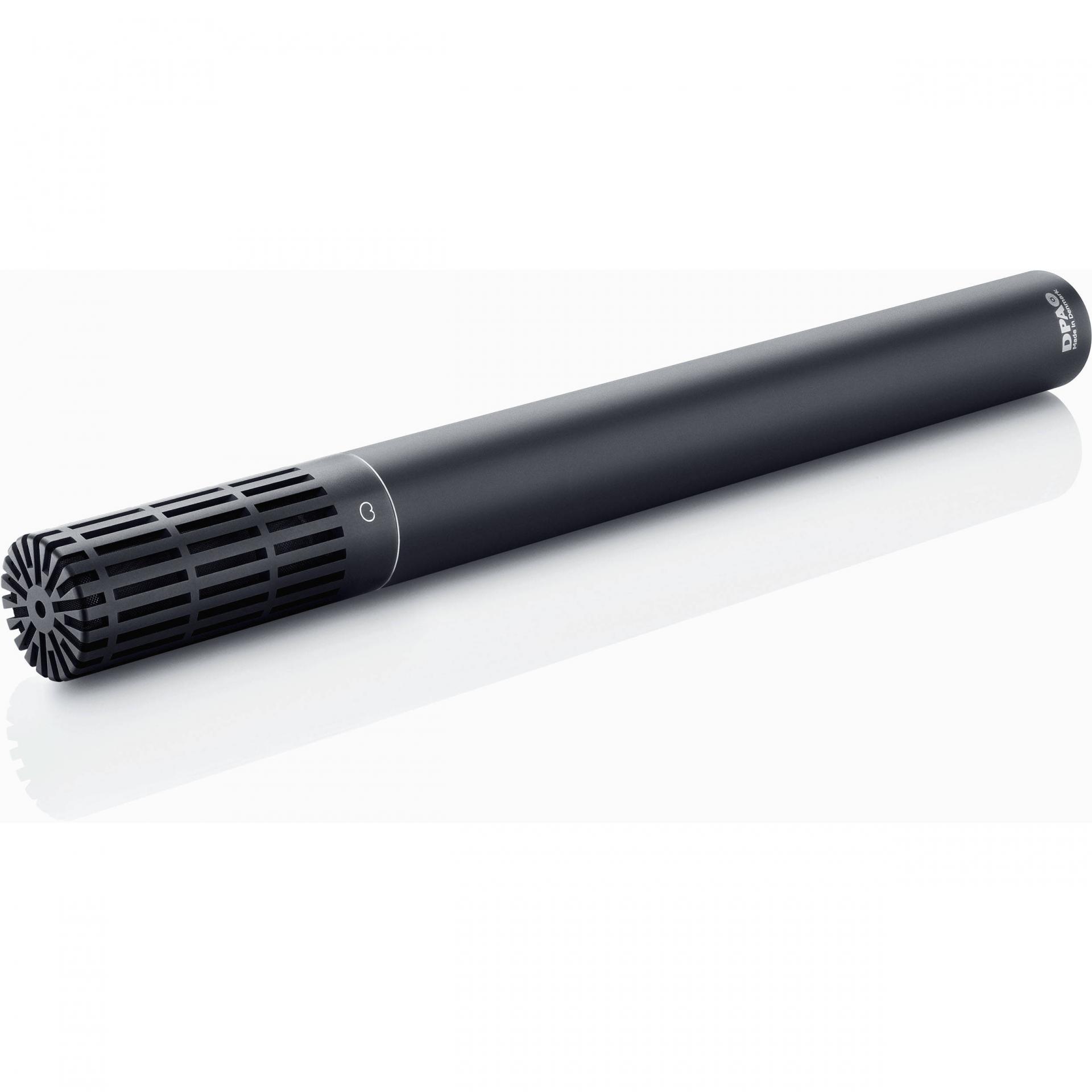

DPA Microphones 2011A Twin Diaphragm Cardioid Microphone

The 2011A Twin Diaphragm Cardioid Microphone from DPA features a modular capsule design and sonic character. It contains a cardioid condenser capsule suitable for capturing instruments in sound reinforcement applications. The capsule's twin diaphragm is designed to provide a fast impulse response and large frequency bandwidth, resulting in lower inherent noise. Additionally, the microphone allows you to maintain a linear tonal response when closely positioning it near speaker cabinets, percussion, and other instruments. The microphone's modular design allows users to manually switch optional capsules, providing enhanced versatility and performance. There is an output stage that offers an MMP-A preamp for faithful recreations of the original source material and an included microphone clip and windscreen.


Blends clarity, richness, and dynamics


Twin-Diaphragm-Capsule and interference tube technologies


Maximum stage separation and level control


Modular flexibility

Spec:



Operating Principle
Pressure Gradient


Transducer
Condenser


Polar Pattern
Cardioid


Frequency Range
20 Hz to 20 kHz


Signal to Noise Ratio
74 dB A-Weighted


Equivalent Noise Level
20 dB A-Weighted33 dB ITU-R 468


Maximum SPL
153 dB SPL


Impedance
200


Load Impedance
2 kOhms


Sensitivity
-40 dB @ 1 kHz, re: 1 V/Pa


Power Requirements
48 V


Pad
Yes, 20 dB


Output Connectors
3-Pin XLR


CMMR
60 dB


Operating Relative Humidity
90%


Operating Temperature
-40 to 113°F (-40.00 to 45.00°C)


Operating Current Consumption
2.8mA


Dynamic Range
117 dB


THD
< 1.0% up to 137 dB SPL Peak






General


Length
7.80" (198 mm)


Diameter
0.75" (19 mm)


Weight
5.78 oz (164 g)






Packaging Info


Package Weight
0.85 lb


Box Dimensions (LxWxH)
10.7 x 6.2 x 2.8"
