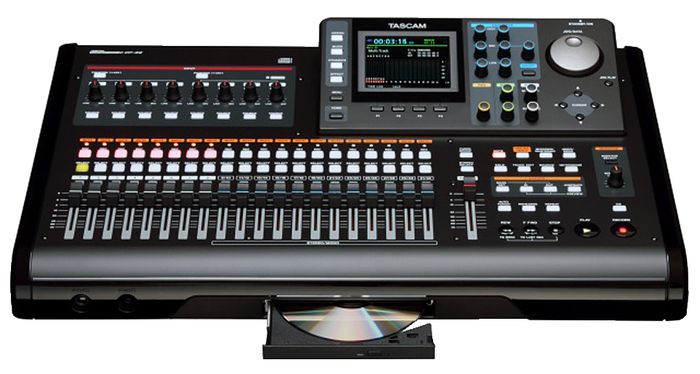

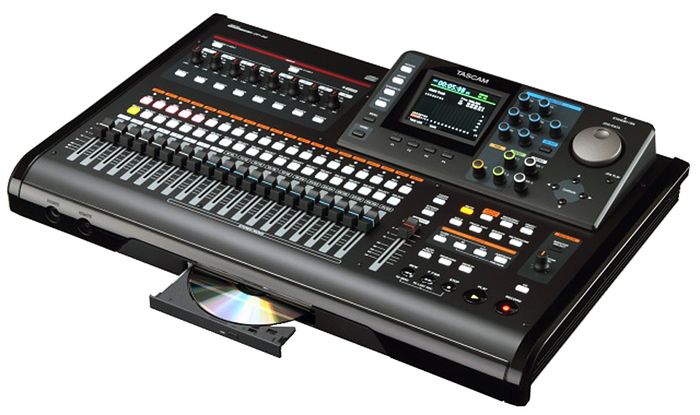

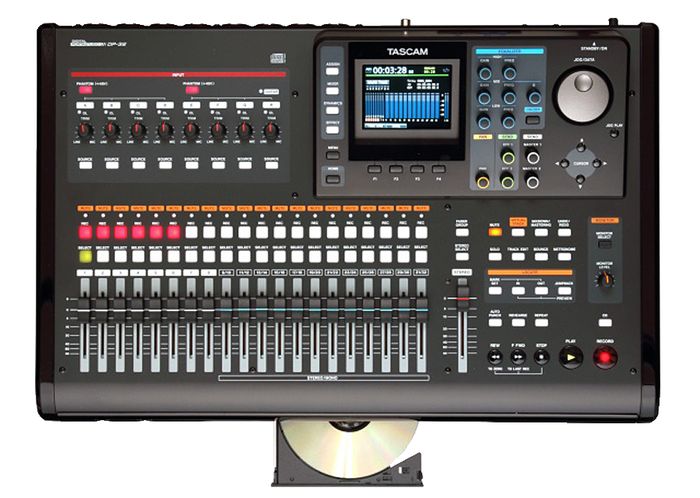

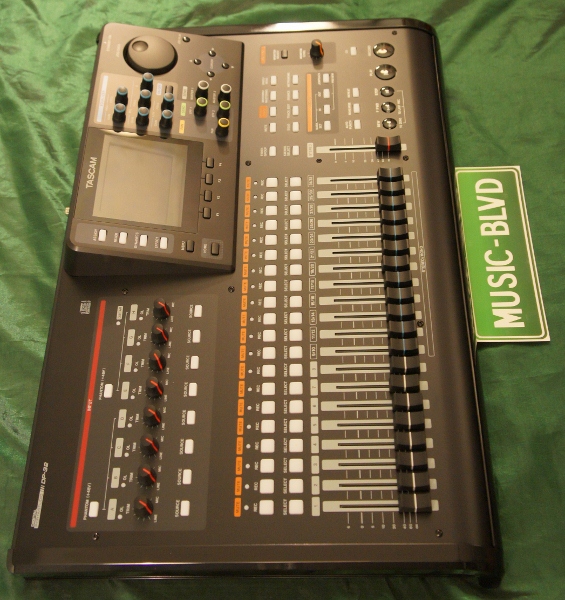

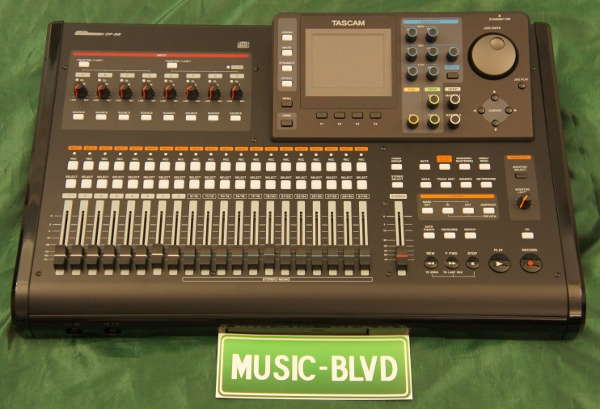

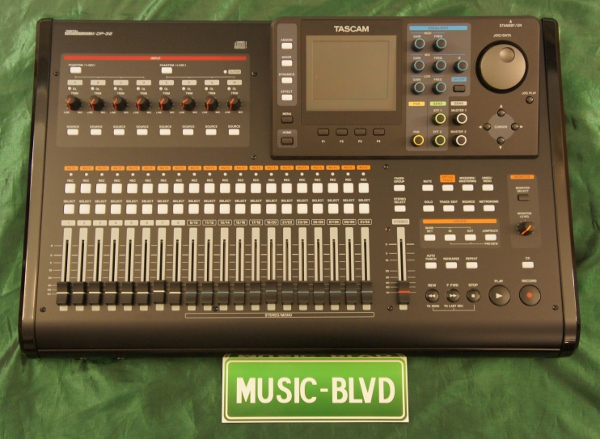

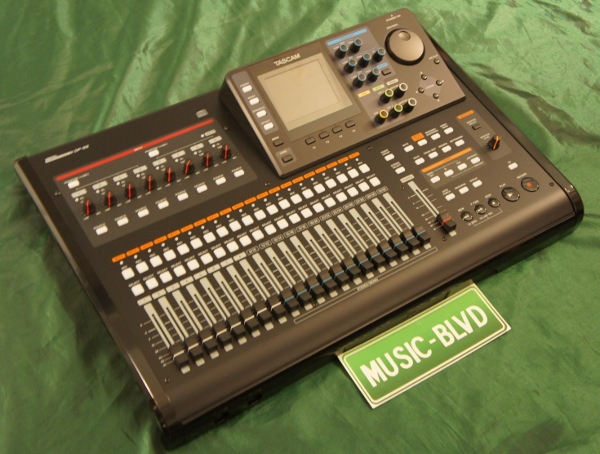

TASCAM DP-32 Digital 32-Track Portastudio

32-Track digital PORTASTUDIO with full-color LCD.

The TASCAM DIGITAL PORTASTUDIO DP-32 is one of the best and most affordable ways to remove the mind-numbing glow of the computer screen from personal recording. It's safe to say, that after decades of manufacturing and transforming Portastudios, TASCAM has revolutionized the series once again. Employing 8 combo 1/4" - XLR inputs with +48V Phantom Power, 32 tracks (8 mono, 12 stereo) the ability to select between stereo and mono and an affluence of other key features, TASCAM DIGITAL PORTASTUDIO DP-32 is an obvious choice for multi-channel home recording. The last 12 faders are selectable between MONO and STEREO The DP-32 has 12 selectable tracks between MONO or STEREO. These tracks provide more flexibility. For example, set to STEREO for recording synthesizer, or set to MONO when recording guitar or vocal. Not only that, you can create ideal settings for each track. (set #9 to #12 STEREO, then set #13 to #22 MONO) If all tracks are set to MONO the DP-32 becomes a 20-track multi track recorder. 21 faders eliminates layer structuring The DP-32, even with the high number of tracks and features is one of the easiest multi-track recorders in the market to use. The DP-32 has 20 track-faders and one master fader. You can control any track with ease. The 3.5" full-color LCD and the self-illuminated buttons increase visibility The DP-32 has a 3.5" LCD screen and select self-illuminated buttons, making it easy to view your entire creative process. Some of the illuminated buttons include (SOURCE, SELECT, REC, MUTE). 12 rotary knobs linked to the LCD to help increase easy operation The DP-32 has employed rotary knobs to control qualities such as EQ, Effect Send and other related features. Utilizing SD/SDHC media ensures confident recording, free from shock due to loud sounds The DP-32 adopted use of SD/SDHC media. SD/SDHC cards provide secure shock resistance due to the absence of any rotary mechanism. File format of the DP-32 is FAT 16 or 32. You can find the recorded files on your computer when connected via USB.


Features

Simultaneous 32 track playback
8 mono tracks + 12 mono/stereo selectable tracks
21 faders (19 track-faders and one master fader)
Mounted TMSS (TASCAM Multi Stage Sampling rate converter) provides high-quality sampling rate conversion
Integrated 40-input mixer to mixdown the 32 playback tracks with the 8 inputs and for bouncing
Simultaneous 8 track recording
16 or 24 bit, 44.1 or 48 kHz recording
8 XLR/TRS combo connectors
Phantom power supply for all inputs
High-impedance input available (INPUT-H)
Stereo RCA pin-jack output
2 effect send outputs (1/4" TS jack)
70mW/ch headphone amplifier
Peak-hold function at a level meter of the LCD
Sub-frame editing
MIDI IN/OUT for sending MTC/MMC signal
Remote connector for optional RC-3F footswitch
CD-R/RW drive to burn stereo master file or recorded tracks and also to import CD-DA
INPUT A-H and each track are equipped with 3-band EQ
Automatic punch in/out
various edit functions(COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
Undo and Redo function with Undo history
8 dynamics effects
Guitar effects
Mix-down effects
Mastering Effects
Track bounce function
Virtual track (8 virtual track per one track)
Locate mark up to 99 at one song
File transferring via USB2.0
Chromatic tuner
Metronome



32 Tracks of portable recording power at your fingertips. Order the DP-32 today!


DP-32 Digital 32-Track Portastudio Specifications:

Recording Media
SD (512MB – 2GB) / SDHC card (4GB – 32GB)
File System
SD card:FAT16 / SDHC card:FAT32

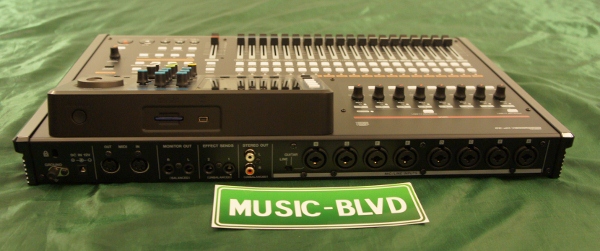

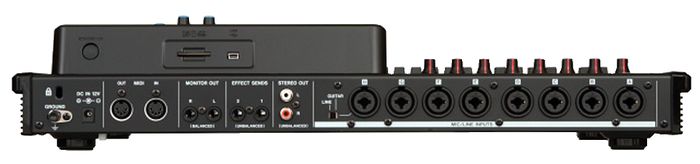

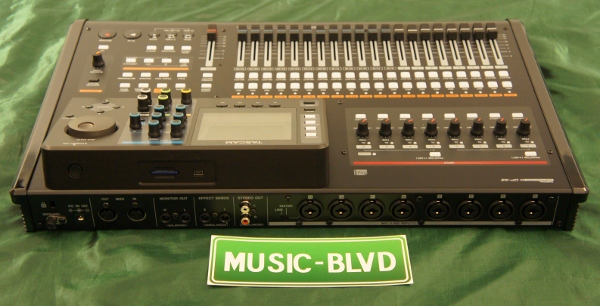

INPUT A-H
XLR
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced
Input impedance 2.4k ohms
Nominal input level -14dBu
Maximum input level +2dBu
TRS
Connector 6.3mm(1/4")TRS phone-jack, Balanced
Input impedance 22k ohms or more
/ 1M ohms(when INPUT H, GUITAR selected)
Nominal input level +4dBu
Maximum input level +20dBu
STEREO OUT
Connector RCA pin-jack, Unbalanced
Output impedance 200 ohms
Nominal output level -10dBV
Maximum output level +6dBV
EFFECT SENDS
Connector 6.3mm(1/4")TS phone-jack, Unbalanced
Output impedance 200 ohms
Nominal output level -10dBV
Maximum output level +6dBV
MONITOR OUT
Connector 6.3mm(1/4")TRS phone-jack, Balanced
Output impedance 200 ohms
Nominal output level -2dBu
Maximum output level +14dBu
PHONES
Connector 6.3mm(1/4")TRS phone-jack
Maximum output level 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)
MIDI IN / OUT
Connector
DIN 5 pin
Format Standard MIDI format
USB
Connector
USB Mini-B type 4-pin
Format USB2.0 High-Speed mass-storage class
REMOTE
Connector
2.5mm TRS jack
Power Dedicated AC adapter (TASCAM PS-1225L, included)
Power consumption 12W (when phantom power supplying)
Dimensions 514(W)×104(H)×340(D)mm / 20.2"(W)×4.1"(H)×13.4"(D)
Weight 6.2kg / 13.67 lb
Operating temperature 5 to 35C / 41 to 95F
Accessories
AC adapter, 2GB SD card, USB cable, warranty card, owner's manual
Operating system requirements
Windows
OS Windows XP, Windows Vista, Windows 7, Windows 8
CPU Pentium 300MHz or more
Memory 128MB or more
USB USB2.0
Macintosh
OS Mac OS X Jaguar (V10.2),Mac OS X Panther (V10.3),Mac OS X Tiger (V10.4),Mac OS X Leopard (V10.5),Mac OS X Snow Leopard(V10.6.8),OS X Lion(V10.7),OS X Mountain Lion(V10.8)
CPU Power PC, iMAC, G3, G4 266MHz or more
Memory 64MB or more
USB USB2.0
Audio performance
Frequency response 20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
S/N Ratio 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
THD 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
