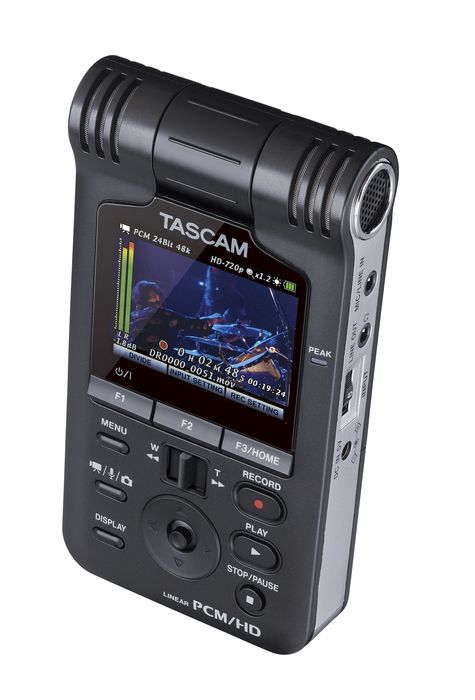

TASCAM DR-V1HD Handheld Video / Linear PCM Recorder

Combination handheld HD video recorder and linear PCM audio recorder.

The DR-V1HD is a combined HD Video Recorder and Linear PCM High-Quality Audio Recorder. TASCAM has long been among the top leaders in home and field recording for decades and has always been focused on creating easy-to-use, versatile products. TASCAM introduces yet another addition to this long-trusted tradition, providing a 180-degree rotating camera and microphone set at the top of the DR-V1HD along with specific feature sets and menu operations ("White Balance" features and still photography mode). The DR-V1HD is encased in a sturdy and solid structure with an ergo dynamic design. TASCAM has continued their same sleek look as previously released handheld recorders and made sure to utilize rotary volume control for fine-tuned and quiet input level adjustments. The layout and controls were designed to decrease any unnecessary handling noise and produce stable filming operation. Every detail was considered when TASCAM constructed the DR-V1HD. The mic placement structure was designed to rid any possible electrical noise and it records up to 24-bit/96k audio. TASCAM included their iconic "Variable-Speed-Audition," and offered the ability to link any audio file on the device to still photographs. The DR-V1HD supplies HDMI out and a standard 1/4-20" mount for use with a tripod. TASCAM has added a distinct and important new addition to their increasingly popular family of handheld/field recorders with the DR-V1HD.



Features

Both camera and microphones rotate at 180 degrees
Same high-quality audio standards as the rest of the TASCAM DR Series recorders
Same condenser microphones as the popular DR-2d
Rotary volume for fine-tuned adjustments
VAS (Variable Speed Audition) function controls clip speed without changing audio pitch
Built-in photographic function, allows audio to be linked to snapshots
Five hours of operation on three AAA batteries
Desinged with easy-to-use feature sets



Get video and audio all-in-one handheld device. Order today.


DR-V1HD Handheld Video / Linear PCM Recorder Specifications:

General
Recording Media: microSD/microSDHC-card
File System: FAT32,FAT16
Video Format: MOV
Video
Video Compression Method MPEG-4 SP
Resolution SD:640 x 480 / 30fps
HD:1280 x 720 / 30fps
Audio
Recording Format WAV
Sampling Frequency 44.1kHz / 48kHz
Bit Rate 16bit,24bit
Audio Format WAV
Sampling Frequency 44.1kHz / 48kHz / 96kHz
Bit Rate 16-bit/24-bit
Still Picture Format JPEG
Size .3M:640 x 480, .9M:1280 x 720
Number of Channels
Video/Photo 1
Audio 2 (Stereo)
Built-In Camera
Image Sensor 1/4" CMOS
Focal Length 39cm - ∞
Digital Zoom 1.0x - 4.0x
F Value F2.8
White Balance AUTO, BULB LIGHT, FL LIGHT, STAGE LIGHT, SUN LIGHT, CLOUDY
Built-In Microphone
Electret condenser microphone x 2 (Stereo)
Polar Pattern Cardioid
Maximum SPL 120dB SPL
Open circuit Voltage -37dB at 1kHz (0dB=1V/Pa) RL=2kΩVcc=3V
Impedance 1.4kΩ+/-30% at 1kHz (RL=2kΩ)
S/N Ratio 74dB Typ. at 1kHz (A-Weight)
Analog Audio Input/Output
MIC IN / LINE IN Plug-in power
Connector 3.5mm (1/8") Stereo mini jack
MIC IN IINPUT SELECT set to MIC
Impedance 25kΩ
Input Level
GAIN LOW -32dBV
GAIN MID -48dBV
GAIN HI -64dBV
Maximum Input Level
GAIN LOW -16dBV
GAIN MID -32dBV
GAIN HI -48dBV
LINE IN INPUT SELECT set to LINE
Impedance 22Ω
Input level -10dBV (0.32V)
Minimum Input Level -22dBV (0.08V)
Maximum Input Level +6dBV (2.0V)
Phones / LINE OUT
Connector 3.5mm (1/8") Stereo mini jack
Impedance 12Ω
Output Level 14dBV (10kΩ)
Maximum Output Level +2dBV (10kΩ)
Maximum Output 15mW + 15mW (32Ω)
LCD Monitor
Size 2.4" Color TFT LCD
Resolution 240 x 320
Backlight HIGH / LOW / ALL OFF
Built-in Speaker
0.6W,Monaural
USB
Connector Mini-B
Format USB2.0 HIGH SPEED Mass Storage Class
HDMI
Connector miniHDMI (Type C)
Tripod Mounting Thread 1/4"
Power Supply
Three AA batteries (Alkaline or Ni-MH)
TASCAM PS-P520 AC adaptor (sold separately)
Power Consumption: 0.9W (Maximum)
Dimensions (WxHxD): 70mm × 131mm ×28mm
Weight: 157g (Batteries not included)
Operating temperature range 0 - 35
Accessories:
2GB microSDHC card
Mini USB Cable
3 "AA" Batteries
Audio performance
Frequency response 20Hz - 20kHz +1/-3dB (44.1kHz\LINE IN→LINE OUT\JEITA)
20Hz - 22kHz +1/-3dB (48kHz\LINE IN→LINE OUT\JEITA)
20Hz - 42kHz +1/-3dB (96kHz\LINE IN→LINE OUT\JEITA)
THD 0.02% or less (44.1k/48k/96kHz\LINE IN→LINE OUT\JEITA)
S/N 90dB or more (44.1k/48k/96kHz\LINE IN→LINE OUT\JEITA)
Conditions of the PC to connect
Windows
OS Windows XP,Windows Vista,Windows 7,Windows 8
CPU Pentium 300MHz or more
Memory 128MB or more
USB USB2.0 recommended
Macintosh
OS: Mac OS X Jaguar (V10.2),Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard (V10.6.8), OS X Lion (V10.7), OS X Mountain Lion (V10.8)
CPU Power PC\iMac\G3\G4\G5 266MHz or more
Memory 64MB or more
USB USB2.0 recommended
