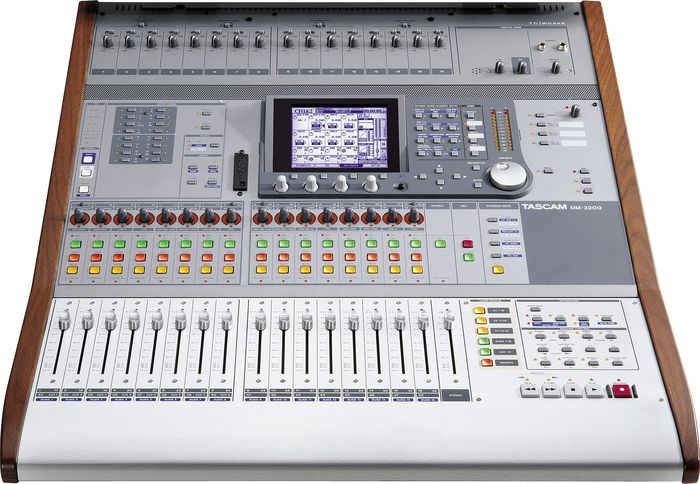

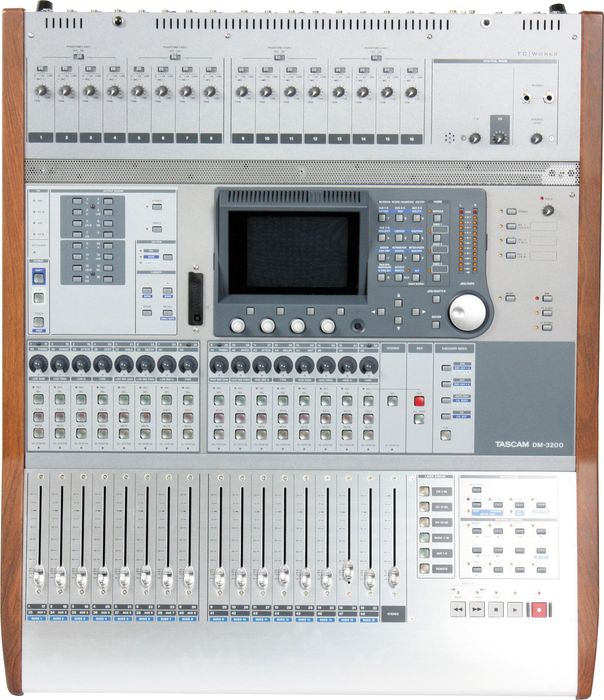

TASCAM DM-3200 Digital Mixer

The ultimate 32-channel mixing console.

More channels. More inputs. The new TASCAM DM-3200 digital mixer has more of everything that made the DM-24 a pedigreed studio workhorse. Plus an improved physical interface with per-channel multi-function LED ring encoders, more comprehensive DAW control, vastly improved routing flexibility, easier and robust data backup/ restore, greatly expanded mix storage using compact flash media and much more. The DM-3200 features 32 full-featured channels and 16 returns for a total of 48 channels at mixdown — even at its full 96kHz / 24-bit audio resolution. It has 4-band fully-parametric EQ and dynamics on every channel and two effects processors, each capable of running the built-in TC Works reverb processor. Surround mixing is available with up to 6.1-channel panning, and the optional IF-SM/DM expansion card adds surround monitoring and downmixing to the DM-3200. The DM-3200 provides a new way to record with DAW recording software. With the addition of an optional expansion card, the IF-FW/DM FireWire interface, the DM-3200 becomes a 24-channel computer audio interface, making it a complete studio solution for professional DAW recording. Built-in HUI and Mackie Control emulation allows the console to function as a flexible control surface for workstation software. This gives you the best of both worlds — total control over your recording software transport and mixing capabilities with the cue mixing, talkback, microphone preamps and world-class automation provided by the DM-3200.


Features

32 channels and 16 auxiliary returns for 48 total inputs
16 buses — configurable as two 6.1 surround sends
8 Aux Sends
16 analog mic/line inputs with phantom power for condenser mics, analog inserts and -20dB pad switch
24 channels of TDIF and 8 channels of ADAT built in
2 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards
Dedicated cascade port supports cascade of two DM-3200s
Per channel LED ring encoders for pan, aux sends and EQ
Built-in DAW control
All inputs, effects and processing are available at 96k -- no features are sacrificed at full sampling rate
Transport controls control DAW, HDR or tape playback
Dedicated DAW control surface layer for Digidesign Pro Tools®, Cakewalk SONAR®, MOTU DP™, Apple Logic, Steinberg Cubase® and Nuendo®
Powerful automation with touch-sensitive motorized faders
4-band parametric EQ and dynamics on each channel
32-bit internal resolution with 64-bit EQ resolution
Two built-in effects processors include TC Works reverb processing
Flexible routing — route from virtually any input to any output
Back up mix data to convenient Compact Flash media slot or to USB

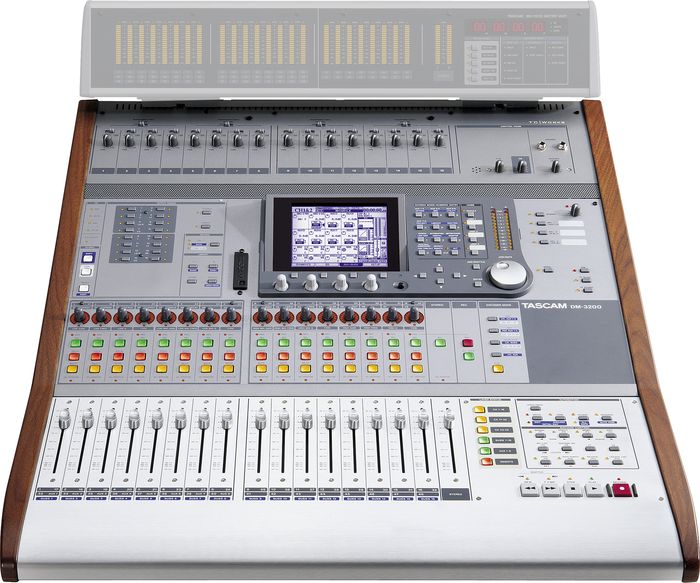

Optional MU-1000 meter bridge

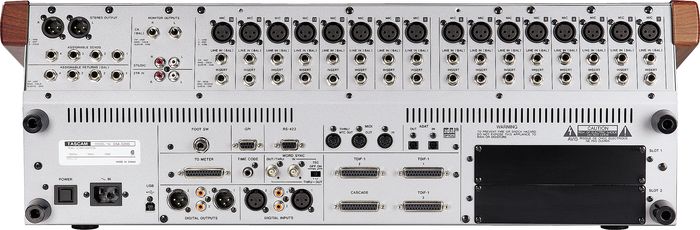

Stylish, professional design with rear panel I/O connections
TASCAM Mixer Companion software (Win XP/OSX) with:
Driverless USB connection to computer
Backup/restore data via USB
On screen timecode, transport and meter displays
Maximum overall dimensions (w x d x h): 27.6" x 32.9" x 9.1"_(700mm x 836mm x 230mm)
Weight 52.8lbs (24kg
