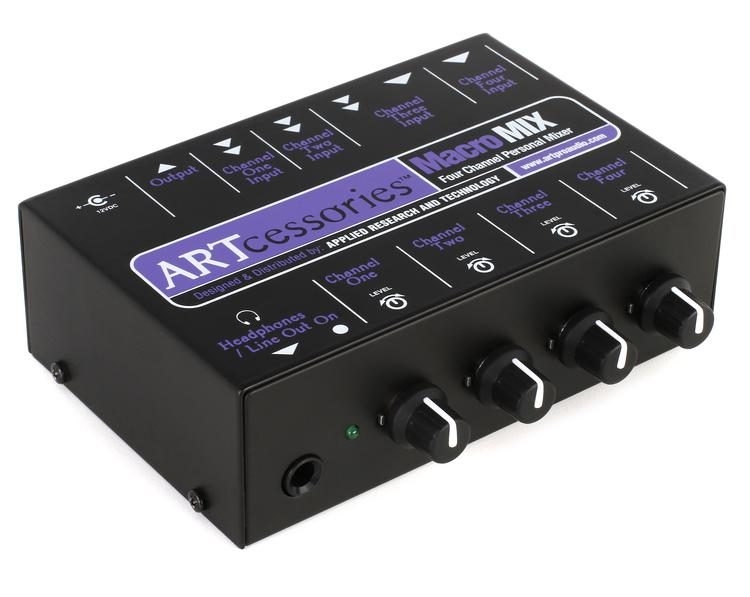

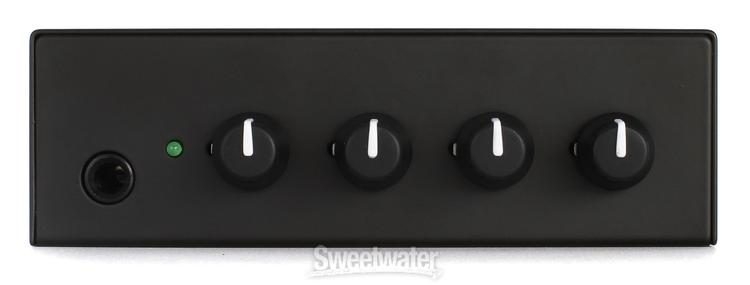

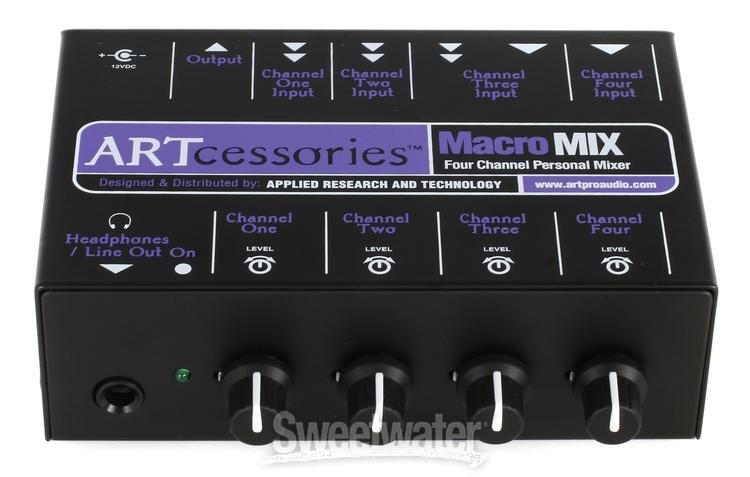

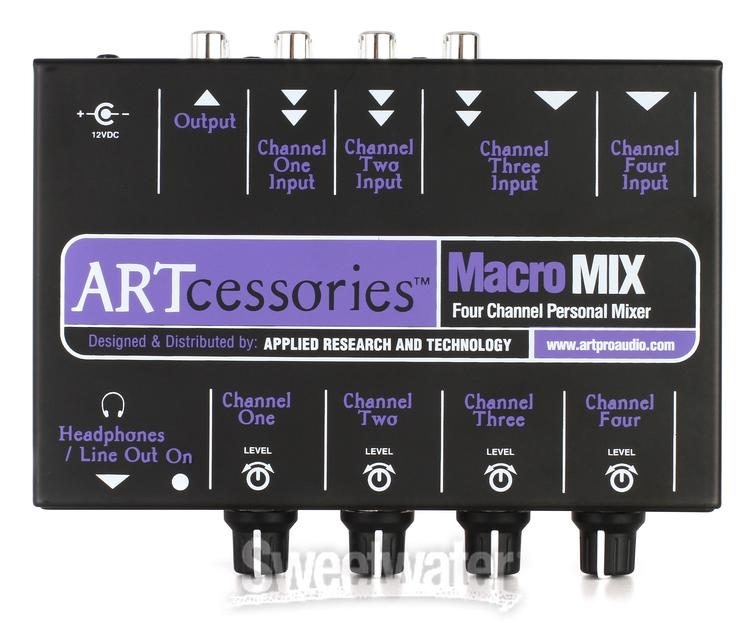

ART MacroMIX Personal Mixer

MacroMIX: up to nearly any recording task
ARTcessories - a full line of clever, affordable processing tools for live sound, stage, and studio. The ARTcessories line is designed to deliver solutions for a number of audio needs - like having phantom power, having one or two more mixing channels, testing cables, headphone processing, preamplification for microphones and turntables, and many more real-world applications. With their affordable prices and simple design, the new line of ARTcessories will satisfy the needs of working musicians and sound engineers everywhere.
Problem: You need to mix a CD and a VCR's audio output with a synthesizer and the line output of a bass amp and send it all to a PC or cassette deck.
Solution: Connect a MacroMIX between your audio sources and the PC or cassette deck. Levels can be mixed and a headphone jack lets you monitor the mix. With four input channels, four level controls, active preamplification and mixing circuitry, the MacroMIX is up to nearly any mixing task.
ART MacroMIX Features:

4 input channels

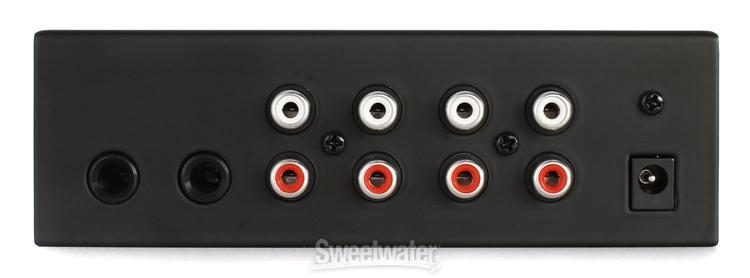

Ch. 1 and 2 have dual RCA inputs that sum to mono
Ch. 3 offers a choice of 1 1/4" or summed RCA inputs
Ch 4 has a 1/4" unbalanced input
4 Level controls, 1 for each channel
Dual mono RCA Output connectors
Mono 1/4" Line Out/Headphone output jack

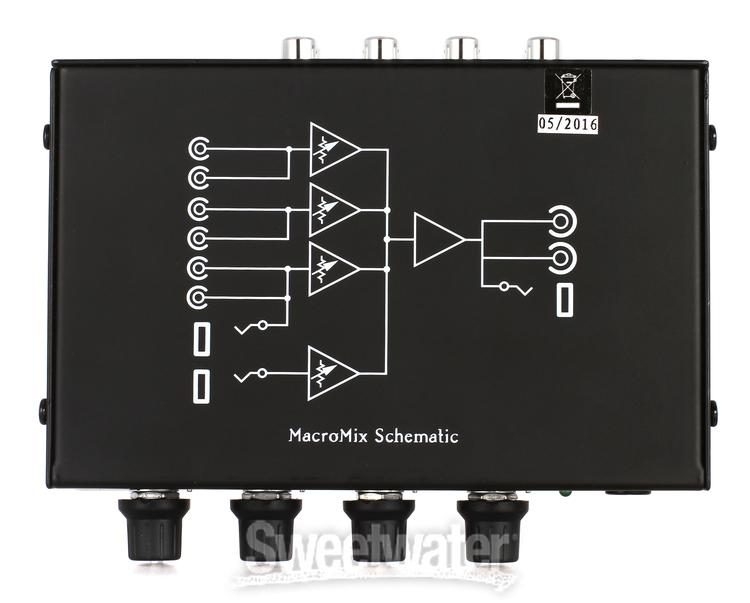

Active preamplification and mixing circuitry
Input Impedance: 10K ohms unbalanced (all inputs)
Ch. 1/2/3 and 4 Input Gains: 32dB/26dB/26dB and 26dB

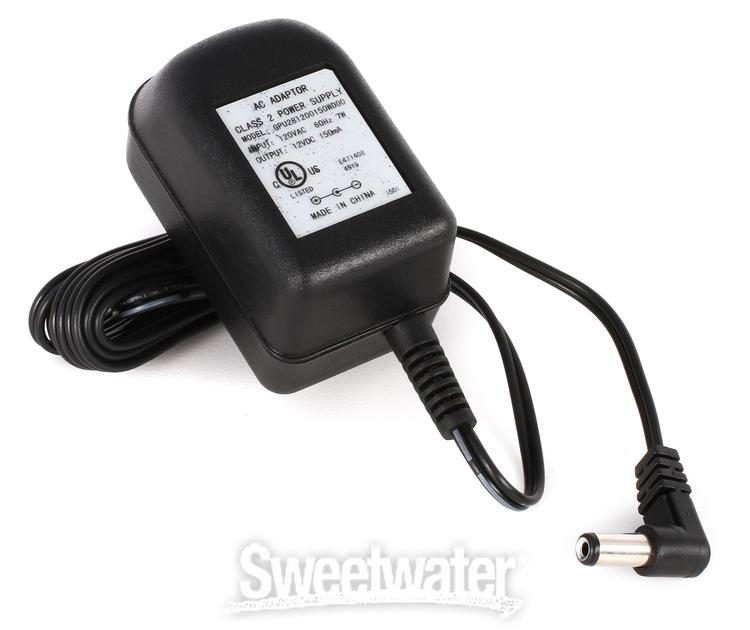

Power: 12V DC (Adapter included)
Dimensions: 5.625 x 3.75 x 1.75 inches (143mm x 92mm x 45mm)
Weight: 2 lbs. (0.91kg)




Tech Specs

Type: Analog
Channels: 4
Inputs - Line: 4 x RCA (CH 1-2), 2 x 1/4" (CH 3-4), 2 x RCA (CH 3)
Outputs - Main: 2 x RCA (Dual Mono)
Headphones: 1 x 1/4"
Height: 1.75"
Width: 5.63"
Depth: 3.75"
Weight: 1.6 lbs.(Shipping weight = 3.5 lbs)
Manufacturer Part Number: MACROMIX
