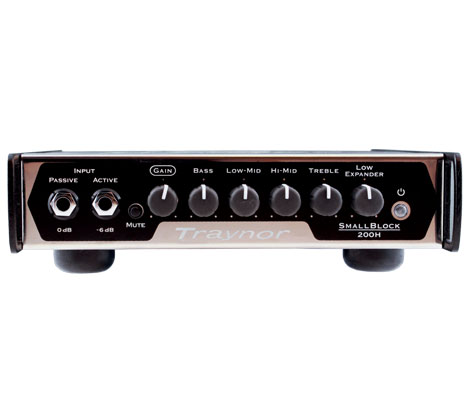

Traynor SB200H

The ultra-compact and lightweight 200-watt Traynor Small Block SB200H head is built for the travelling musician. At less than 7 ½ inches (20cm) wide and weighing under 1.5lbs (680g), the SB200H is small in stature, but big on tone. Loaded with essential features including Active and Passive level instrument inputs XLR DI output, a versatile four band EQ with an additional low frequency expander, the SB200H allows virtually any tone to be dialed in quickly and easily.
Designed to withstand the rigors of the road, the SB200H is built using an all-metal chassis with front mounted handles to protect the knobs and jacks. A combination Speakon™ - ¼-inch speaker output jack ensures the SB200H is included for maximum convenience. A ¼-inch Auxiliary Input allows source material to be blended with bass making the SB200H a perfect rehearsal tool. A ¼-inch headphone out is provided for private practice.
The SB200H is made in Canada and like all Traynor products, covered by our unconditional two-year transferable warranty.



Ultra Compact and Lightweight Design
All-Metal Chassis
Versatile 4-band EQ with Additional Low Frequency Expander
Passive and Active Inputs
Selectable Pre / Post XLR DI Output
Auxiliary Input & Headphone Output for Private Practice
Convenient Speakon™ - ¼-inch Combi-jack Speaker Output
Made in Canada





Power @ min. impedance (Watts)
200 watts


Minimum Impedance (Ohms)
4


Burst Power - 2 cycle
250 watts


Inputs
Passive 0 dB, Active -6 dB


Controls
Gain, Bass, Low Mid, High Mid, Treble, Low Expander, Master Volume


Additional Inputs
¼-inch Aux Input


Line Out (type / configuration)
Balanced Pre/Post Line Out W/ Ground Lift Switch


Line Out Sensitivity (Vrms)
1 Vrms


LED Indicators
Blue - Power / Red - Protect/Mute


Protection
Clip, Thermal, Overcurrent


External speaker output / location
Speakon™ / ¼-inch Combi-Jack


Other Features
Aux Input /Headphone Out /Mute / Tuner Out


Dimensions (DWH, inches)
7.5 x 8 x 1.75


Dimensions (DWH, cm)
19.1 x 20.35 x 4.5


Weight (lbs / kg)
1.5 / 0.68



Specifications subject to change without notice
