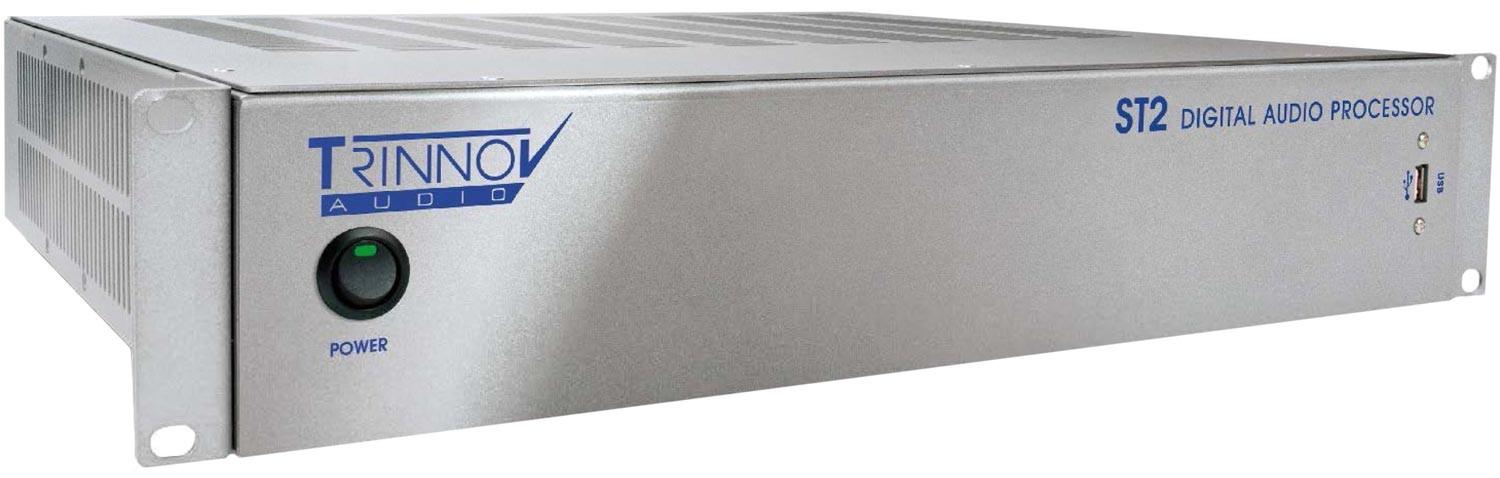

Trinnov ST2 Pro Optimizer

The Trinnov ST2 Pro Optimizer is a pro audio dedicated processor providing 4 simultaneous processing channels. Ideal for TV, music, mastering studios and post-production mixing rooms, the ST2 Pro is the ultimate monitoring solution for any professional stereo applications.

HARDWARE
The ST2 Pro includes independents audio and processing sections within a 2U chassis
The high performance audio interfaces are designed by Trinnov and provide:

4 balanced analog inputs/outputs via XLR
2 AES/EBU (4 channels) inputs/outputs via XLR
Word Clock input/output
Optional GPIO extension board


The processor also allows network-based remote control and updates

SOFTWARE
The ST2 Pro includes both the processor software and the Optimizer 4 bundle.
The set of features offered by this software suite makes it easy to optimize any of the following speaker configurations:

2 speakers set
2 two-ways speakers set
2.1 system
2.2 system
3.1 system
LCRS system
Quad system


Besides, the ST2 Pro can be updated with an optional SmartMeter 4 bundle. This revolutionary time code-aware metering toolkit includes EBU R128 compliant Loudness and True Peak meters in addition to an extensive set of features and traditional tools such as phase scope, PPM and QPPM meters.

Specifications
High Performance Audio

Resolution/Sampling Rate: 24 bits/96 kHz – 192kHz ready
A/D Signal-to-Noise Ratio: 119 dB (A-Weighted)
THD+N ADC: -103 dB
D/A Signal-to-Noise Ratio: 118 dB (A-Weighted)
THD+N DAC: 98 dB
Clock/Jitter: Variations under 25ps are recovered, jitter attenuation superior to 50 dB is achieved above 100Hz
Power Supply: Independant for audio and processing sections
Safety Components: AntiPop relays on each analog output
Design and Assembly: All Audio boards designed and manufactured by Trinnov


Connectivity

Analog I/O: 4 channels inputs via 4 x XLR (20k Ohms); 4 channels outputs via 4 x XLR (100 Ohms)
AES I/O: 4 channels inputs via 2 x XLR (110 ohms); 4 channels outputs via 2 x XLR (110 ohms)
GPIO: 8in/4out via 1 x optional DB25
Word Clock: 1 in / 1 out – BNC connectors


Processing Section

Processor: Intel Dual-Core 1,8 GHz
Data Width: 64 bits, floating point
RAM: 1 Go DDR3
Storage: Flash Drive 1 GB
Cooling System: Custom heat sinks + additionnal slow fans
Maximum Number of Processing Channels: 4 channels at 96 kHz


Dimensions

Width: 444 mm
Height: 88.5 mm
Depth: 405 mm
Weight: 11 kg
Chassis: 2U
