Kinman SRV Strat Set

SRV set - Special Texas tone







Impersonator Fat 50

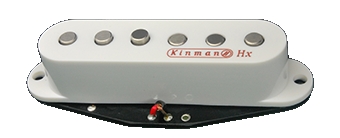

Pickups in this boxed set are three non-aged sound Impersonator Fat 50. Details are on the Single Strat Pickup Tab (above)
SRV's Strat* produced a sound with extra bite, presence and harmonic bloom in loud passages and a nice woody bark from the low wound strings and soulful highs in slower passages. The new Kinman Impersonator Fat 50 also produces this sound with added expression factor, without mains hum.
These are the most lively and juicy Strat* pickup we make, so alive and juicy they outshine most non-noiseless single coils. Archetype Non-Aged Sound delivers exceptional dynamic range and explosive thwack attack, excellent transparent piano mid tones and exceptional bell-like ring and presence, sweet blooming & biting highs. These are two of our supreme Strat* models and is what makes Kinman The KING of noiseless pickups for Stratocaster* and other guitars.
Some people will call these noiseless Stratocaster pickups but Kinman prefers to describe them correctly as Zero-Hum Stratocaster pickups. That's because there are 2 types of noise, Hum which is cancelled in the pickup and Buzz which can only be minimized by shielding the wiring cavities (refer to >Technical >Perfect Guitar >Shielding for newer guitars
*Stratocaster and Strat* are a Trade Marks of Fender Musical Instrument Corp. Kinman is not connected to Fender.
** Alnico-K is a unique proprietary rod magnet developed by Kinman in 1985. It has 40% less string pull than Alnico-5 so sustain is longer and there is much less clatter from string crash and no Strat-itis string warble.

Technical & Application info:

US Patents 5,668,520 6,103,986 8,791,351 B2
Covers

Standard Kinman cover without height extender bushings included.
Available in White, Black, Aged White.
With and without Kinman logo.
Can be tinted with food stains such as Coffee and Tea.
Generic covers will not fit Kinman Strat pickups. We sell replacement covers in three colors.


Connection means available

Bare wires for soldering.
Kinman connectors for plugging into any Kinman Goodbye-Soldering Harness.

Pot & Capacitor values

Best with 250k Ohm (measured minimum) volume pot. Less punch and more bright with 500k.
Tone pot is usually the same value as the volume but for a little more top end brightness can be 500k, 1meg or a No-Load.
Stock pots can actually measure as low as 175k. Pots in our Goodbye-Soldering Harness are guaranteed to measure no less that 250k.
Normal tone cap value of 0.022uF, 63 ~ 100 volt Polyester. Smaller uF value lessen the severity of Treble cut, higher values increase it.
The voltage rating of Caps is not important but 63 ~ 100 volt have thicker lead wires that result in a neater job.

Magnet spreads we normally ship (ensures magnets align with the strings in each position)

Narrow 49.5mm for neck.
Intermediate 51mm for middle.
Standard 52.5mm for bridge.
Option to change the magnet spreads of sets and singles in our 'After-Order Supplementary Questions' email we send you.

Magnet Staggers

Normal improved Stagger to suit 7 ~ 14 inch uniform radius fretboards including USA Custom Guitar Compound 7-1/4" ~ 9-1/2
Flat Stagger for specific compound radius fretboards (Warmoth 10 ~ 16 inch and Post 2010 Fender Deluxe 9 ~ 14")
Option to change the magnet stagger of sets and singles in our 'After-Order Supplementary Questions' email we send you.

Hook-up cable

2 conductor shielded is standard.
Middle pickups when supplied with a K9, TK4 or TK9 harness have 3 conductor shielded.
3 conductor by request with Order.
Custom lengths by request with Order.

Output Polarity:

in-phase with Gibson and Copy humbuckers
in-phase with all other Kinman pickups
opposite phase to Fender Strat

Mounting hardware included

2 Pan head mounting screws.
2 Silicon Rubber tube springs.

We highly recommend consulting the Install Guide in the Technical section even if you think you know it all. Kinmans' require specialized knowledge and sometimes there is updated info. There is also a handy wiring diagram available.
We also highly recommend consulting the Adjust & Set-up page in the Technical section so you get the best out of your Kinman pickups.
