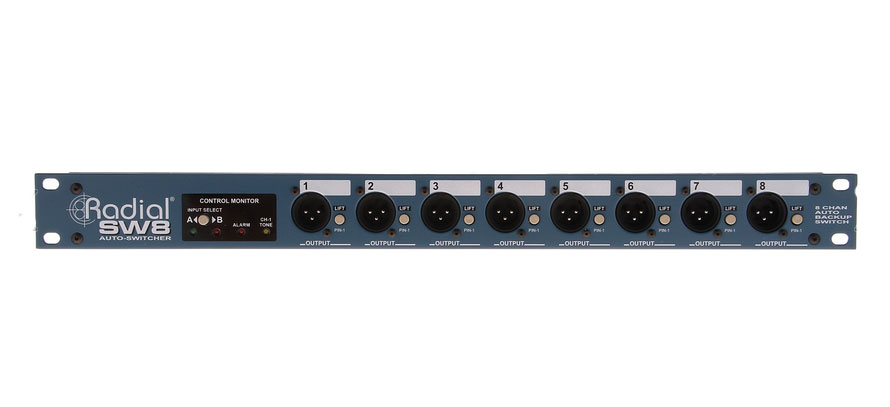

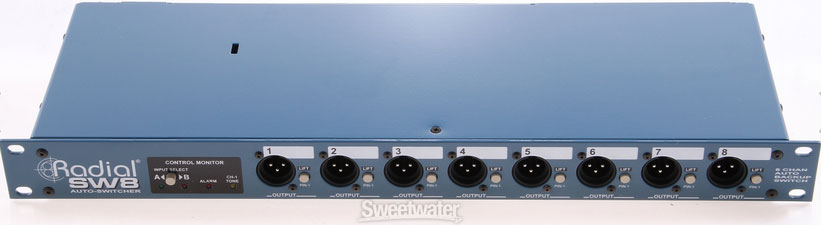

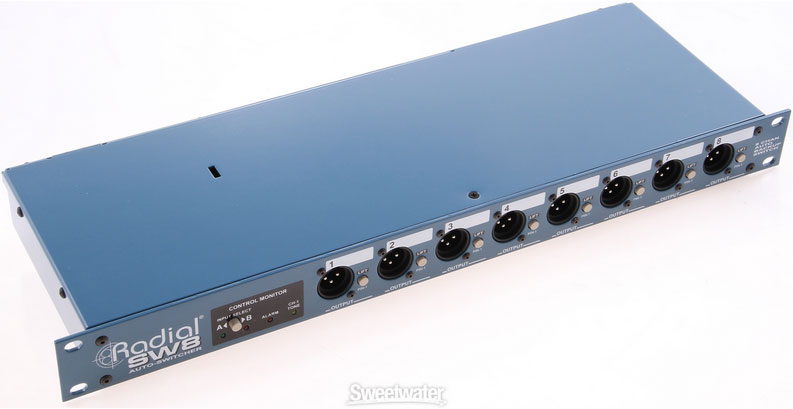

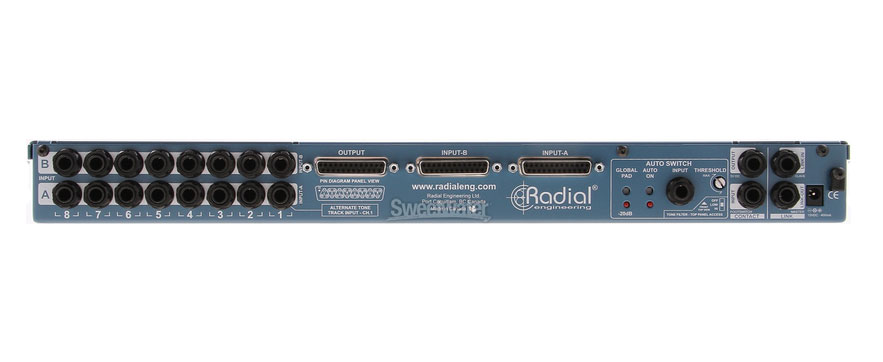

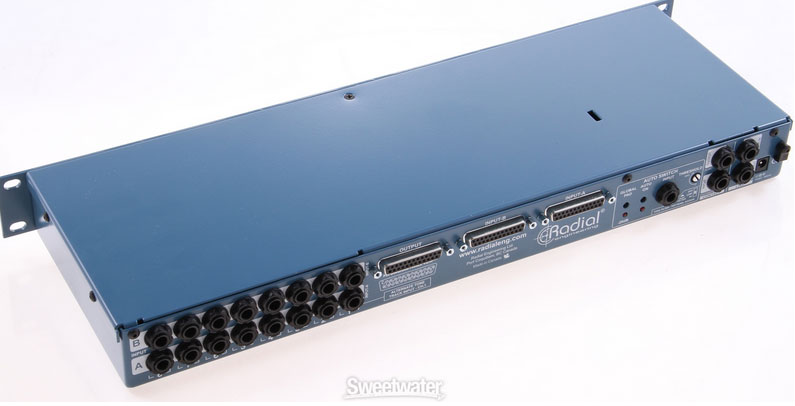

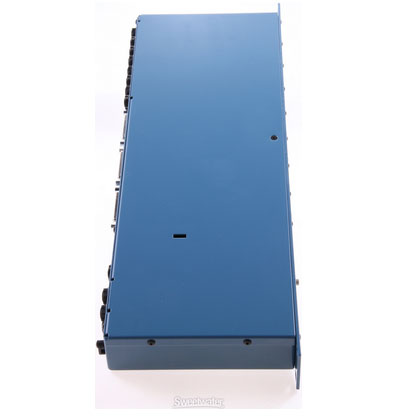

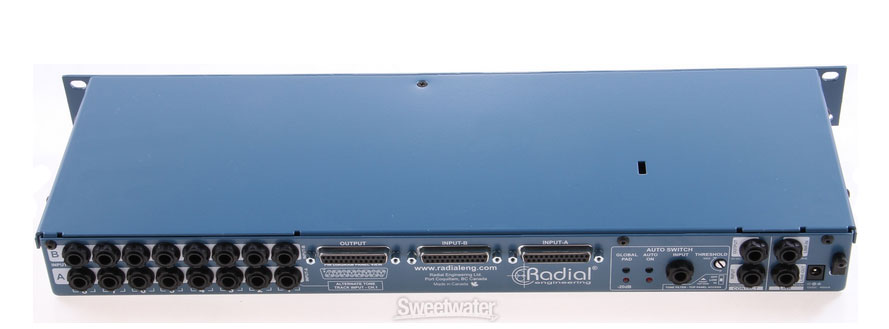

Radial Engineering SW8 back tracking switcher

Protect Your Performances with This Auto-switcher!
The Radial SW8 auto-switcher gives you peace of mind, allowing you to automatically switch between two 8-channel sources - a real lifesaver for critical live recording or playback applications. If you use backing tracks or sound effects in your productions, a rock-solid system is a necessity. Using the SW8 ensures your redundant system is put online effectively; it's able to detect a machine malfunction and switch to a backup machine seamlessly. Incredibly easy to set up and built tough for the road, the SW8 auto-switcher is a toolbox essential! Radial SW8 Auto-switcher at a Glance:

Automatic switcher
Easy to use

Automatic switcher The Radial SW8 auto-switcher provides redundant backup by automatically switching between two 8-channel sources such as a pair of digital recorders. Designed primarily for live concerts and stage shows where backing tracks are used for orchestration, backing chorals and sound effects, the SW8 can detect a machine malfunction and automatically switch to a second backup machine to ensure a seamless performance. Easy to use Using the SW8 is easy! Connect your two sync'd playback systems and record a steady drone on track-1. If the tone disappears, the SW8's front panel red LED will illuminate to let you know trouble is at hand. If you like, have the SW8 trigger an alarm, trip a contact closure or have it automatically switch to your second machine. For larger systems, the SW8 may be expanded by linking machines together using a simple instrument cable. It's also built road tough, with a heavy-duty 14-gauge steel enclosure. Radial SW8 Auto-switcher Features:

Auto-switch between two 8-channel systems
Expandable and remote controllable
Mic- and line-level operation
Transformer-isolated XLR mic outputs
Full manual override with foot control

The Radial SW8 Auto-switcher gives your productions added reliability!



Specification
Detail


Type
Transformer Isolated Auto-Switcher


Channels
8


Inputs
16 x TRS, 2 x DB25,


Outputs
8 x XLR, 1 x DB25


Height
1.75"


Depth
6.5"


Width
19"


Weight
7.2 lbs.


Manufacturer Part Number
R800 8100
