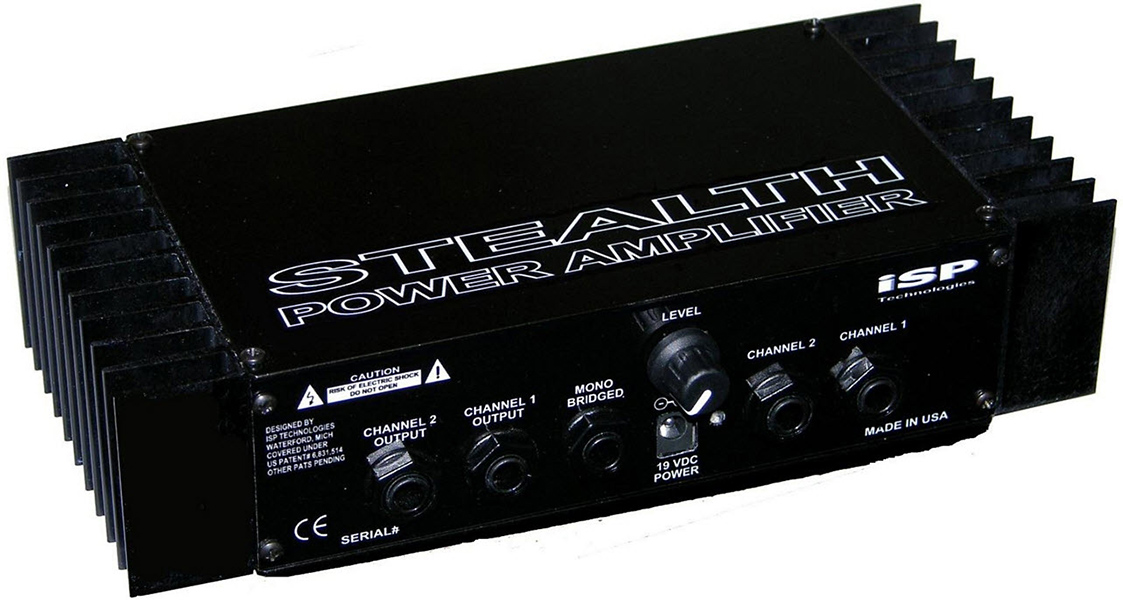

ISP Technologies Stealth Pro 180W Guitar Power Amp

OVERVIEW
High-power floor mount guitar power amp.


The ISP Technologies STEALTH Pro power amplifier with is the first true professional, high-power floor mount guitar power amplifier delivering performance on par with the best guitar amplifiers of the day. The STEALTH is based on analog class A/B amplifier design for excellent sonic and saturated clipping performance, not found with Class D power amplifiers and will exceed the stringent tone characteristics of the professional guitarist. The STEALTH Pro power amplifier can be used for high SPL gigs and professional stage use. The STEALTH Pro power amplifier is powered from an external 19-volt DC switch-mode power adapter like that used with a laptop but will deliver a true 180-watts RMS continuous output power into an 8 ohm speaker cabinet and greater than 120 volts bridged output voltage swing. The STEALTH Pro power amplifier can also be used as a stereo 2x 80-watt amplifier @ 4 ohms. The STEALTH can power a single 4 x 12 cabinet with incredible SPL volume level output or will power two cabinets in a true stereo rig. This incredible small package will deliver more power to a speaker than the typical 100-watt guitar amplifier and will easily interface with any guitar floor system or high performance pedalboard. The STEALTH Pro weighs in at only 1.2 pounds, adding new meaning to lightweight guitar systems. The STEALTH also delivers amazing efficiency and it includes internal protection against shorts, open circuits and wrong impedance loads. An internal "power on/off" output control circuit provides pop free operation for turn on and turn off. The STEALTH's small package size of 9" long, 4" wide and 2" tall allows it to fit with any floor mounted pedal rig.



FEATURES

Usable in Stereo 2×80 watts or Mono Bridged 1x 180 watts
Small, lightweight high power amplifier for guitarists
External 19VCD switch-mode power supply included for operation from 100VAC to 240VAC
Class A/B amplifier circuit for analog saturation and clipping sonic performance
Internal protection for shorts and open circuit
Time Delay operation for POP free turn on / turn off
Input Impedance: 500k
Output Power Mono: 4Ω=75WRMS @1% THD/ 90WRMS@10%
8Ω=45WRMS @1% THD / 60WRMS @10%
Output Power Bridged: 8Ω=140WRMS @1% THD / 175WRMS@10%
16Ω=80WRMS @1% THD/ 106WRMS @ 10%
Input Sensitivity/Max Output: -3dBu / .56vrms
Maximum Input Signal: +17dBu
Voltage Gain: 30dB Stereo / 36dB Mono Bridged
Noise Floor: -75dBu
Dynamic Range: 102db A WTD
Distortion: @10dBu output=.02% Full Output=.1%
Frequency Response: 20Hz - 20KHz = +0 / -.5dB
Input Power: 187mA @ idle 7.8A full power @ 8Ω Bridged
Dimensions: 9" W x 1.75" H x 4" D
Protection: Auto shutdown / Output shorts or low load impedance. Protected for open



Add this powerhouse to your rig. Order today!
