Bricasti Design System 1

A Premium Studio Reverb Unit Plus Hands-on Control!

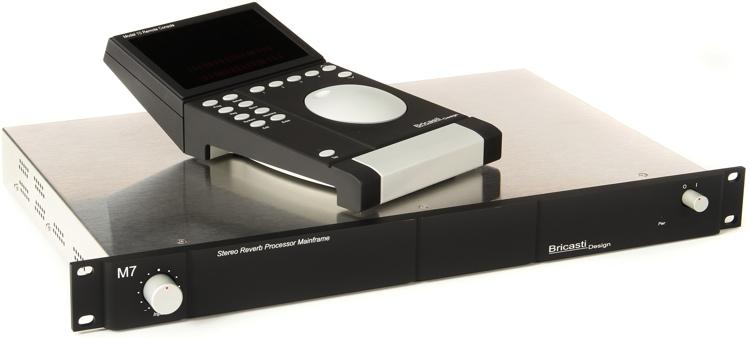

The Bricasti System 1 digital reverb and remote package puts the amazing sound and functionality of a world-class effects unit at your fingertips — even if your rack is out of reach! The System 1 includes Bricasti's stunning Model 7-M "mainframe" reverb unit, which gives you a range of incredible reverbs and 100 great presets. It's controlled by the Model 10 reverb remote console. This compact desktop remote has all the functions you need to get the most out of your Model 7-M, and its easy-to-read screen lets you know what you're dialing in, at a glance. Don't settle for less; put premium reverb performance in your studio, with Bricasti's System 1!
Bricasti System 1 Digital Reverb and Remote Controller Package at a Glance:

World-class reverb performance for your studio
Designed from the ground up for premium performance
Take complete control of your reverb

World-class reverb performance for your studioBricasti's Model 7-M digital reverb effects unit gives you first-class construction, high-resolution performance, and amazing ease of use — all in a very compact, single-rackspace design! Designed specifically for use with Bricasti's M10 remote, this blank-panel "mainframe" Model 7-M reverb features dedicated analog and digital sections with dedicated power supplies, 100 presets, an impressive array of analog and digital I/O options, and the kind of amazing reverb that makes this box an instant "go-to" essential in any studio.
Designed from the ground up for premium performanceEach design element of the Model 7-M is a carefully considered statement of Briscati Design's vision of what the evolution of reverberation processing in its most classic form can be. With a deep appreciation of the best designs which precede it, and a passion for moving the science of reverberation forward, the Model 7-M provides a palette of sounds that encompass the familiar as well as new expressions in the art.
Take complete control of your reverbThe stellar Model 10 Reverb Remote Console gives you the ability to control up to eight Model 7 or Model 7-M reverb units. This flexible functionality enables you to use Bricasti's premium reverb in environments such as surround mixing. To ensure years of reliable service, the Model 10's casing is milled from solid anodized aluminum, which perfectly matches the look and feel of the Model 7.
Bricasti Design Model 7-M Digital Reverb Features:

100 Unique reverb presets
True Stereo Reverb Process
Classic and Modern Presets; Halls, Plates, Rooms, Chambers, Ambient Spaces
12 Parametric Program Parameters
100 User registers
Dual Dedicated Power Supplies
Custom design toroidal transfomer linear supply for analog
High performace switching supply for digital
Separate Digital and Analog modules
Non corrosive Stainless Steel chassis and top cover
Milled anodzied aluminum front panel and knobs
Postive feel 2db stepped analog input level control
MIDI I/O
Handcrafted in the USA
AES 24-bit Digital I/O
AES single wire 192k supported
Self-clocking to incoming sample rates 44.1k to 192k
Six State-of-the-art dual core Analog Devices DSPs
< 20 Picoseconds Jitter
Input level adjustable in 2 dB steps
Balanced XLR analog I/O
24-bit conversion
Dual D/A
Fully-balanced, DC-coupled analog input and output circuits

Bricasti Design Model 10 Reverb Remote Console Features:

Custom-milled solid aluminum casing and buttons, fine finished and anodized for an enduring design and classic look
Controls up to eight Model 7 or Model 7-M units
Connects to the first M7 via RS422 9-pin serial cable, 10-meter cable provided, up to 30 meters that is 480L compatible and simple to install, with no practical distance limits
Simple serial 'loop thru' for connecting more M7s, connect to the first and loop to the second, and third, etc.
DC power is supplied from the M7 through the cable, no wall warts, or external supplies
Eight meters, for four stereo pairs, metering four machines at a time
Machine selection is by dedicated Machine key in the M10
Same clear easy to read displays as used in the M7
Same user interface as the M7, with the addition of Machine and Setup keys, so no need to learn something new
Simultaneous control of the M7 from both the M7s front panel and or the M10 with a lockout
Setup key for the M10's local memory, configurations, and settings

Bricasti's System 1 Digital Reverb package gives you world-class reverb plus hands-on control!


Tech Specs



Processor Type
Reverb


Number of Channels
2


Presets - Factory
100 Factory


Presets - User
100 User


Analog Inputs
2 x XLR


Analog Outputs
2 x XLR


Digital Inputs
AES/EBU


Digital Outputs
AES/EBU


MIDI I/O
In/Out


Rack Spaces
1U


Height
1.75"


Depth
11"


Width
19"


Weight
9 lbs.


Manufacturer Part Number
System 1
