Edirol FA-101 FireWire Audio Capture Interface

OVERVIEW
An interface that moves effortlessly from studio to gig.
The Edirol FA-101 FireWire Audio Capture Interface gives phenomenal power to the studio musician. It's capable of 24-bit/96kHz digital audio resolution on all 10 channels for pristine multichannel recordings with full duplex monitoring and recording. In addition to 10x10 24-bit/96kHz performance, the FA-101 also offers stereo recording and playback at 24-bit/192kHz for performance at DVD-A and SuperCD quality. The portable musician will love that the FA-101 draws its power completely from the FireWire bus —- there is no need for an electrical hookup. At an event, all of the band's hardware can be routed through the FA-101 to output to monitors, and at the same time the show can be recorded and, during the break, CDs burned to sell on the spot. The Performance DJ will rely on the FA-101's rugged metal chassis to allow him to pound the clubs without worrying about the state of his audio interface. Back at home, the FA-101 will return as the centerpiece to the home studio. Because of the FA-101's ability to supply so many simultaneous inputs, it's perfect for any portable audio application. Portability with no limitations means you'll be able to take the FA-101 to any kind of performance to record multitrack audio. The 2 phantom-powered XLR/TRS combo jacks offer premium mic preamps for incredibly clean recording with studio condenser mics or dynamic stage mics. The back of the FA-101 hosts a number of 1/4" TRS balances inputs and outputs: six inputs and eight outputs in all. The front-mounted S/PDIF optical I/Os transfer audio to and from other digital devices, and the built-in MIDI interface allows a synthesizer or controller keyboard to be connected to the FA-101 for sequencing directly into a software program.
FEATURES


10x10 24-bit/96kHz audio performance


Stereo I/O 24-bit/192kHz audio performance


FireWire bus-powered


Direct monitoring



If you're looking for an audio interface capable of simultaneous multichannel recording on your computer at the highest quality possible order the FA-101. Call or click now!

SPECIFICATIONS

FA-101 FireWire Audio Capture Interface
Number of Audio Record/Playback Channels
(Up to 96kHz) Full Duplex
Record: 10 Channels
Playback: 10 Channels
(Preliminary) Full Duplex
Record: 2 Channels
Playback: 2 Channels
Signal Processing
PC Interface: 24-bit
AD/DA Conversion: 24-bit (Linear)
Sampling Frequency
Digital Output: 44.1/48/88.2/96 kHz
Digital Input: 44.1/48/88.2/96 kHz
AD/DA Conversion: 44.1/48.88.2/96/192 kHz
Nominal Input Level
Input jack 1-2 (XLR Type):
-50 to -10 dBu
Input jack 1-2 (1/4" TRS Phone Type):
-35 to +4 dBu
Input jack 3-6: +4 Balanced
Input jack 7-8:
-10dBu to +4dBu (Balanced)
Nominal Output Level
Output Jack 1-8 +4 dBu (Balanced)
Interface
FireWire (IEEE1394)
Digital input/output
Optical type (conforms to IEC60958)
MIDI In/Out
Connectors

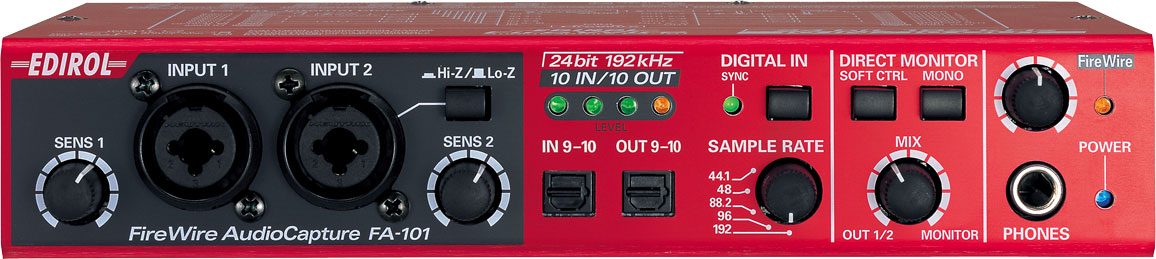

Front Panel
Input Jack 1-2 (XLR/TRS Combo)
XLR type (Balanced/phantom power +48V)
TRS type (Balanced)
Headphones Jack (Stereo 1/4" phone type)
Digital In Connectors (Optical Type)
Digital Out Connectors (Optical Type)
Rear Panel
Input jack 3-8:
TRS Phone type (Balanced)
Output jack 1-8:
TRS phone type (Balanced)
MIDI Connectors (In, Out)
FireWire Connector
Power Supply
AC Adapter
Dimensions
8-5/8" (W) x 1-7/8 (H) x 5-7/16" (D)
Accessories
Owner's Manual
Driver CD-Rom
AC-AdaptoFireWire Cable
System Requirements
Macintosh
OS: MacOS X 10.3.X
Computer: Apple Macintosh series with on-board Firewire
CPU/Clock: To be announced
Memory(RAM): To be announced
Hard Disk: To be announced
Display/Colors: 800x600 or higher
Windows
OS: Microsoft Windows XP
Computer: Windows compatible computer with a Firewire port.
CPU/Clock: To be announced
Memory(RAM): To be announced
Hard Disk: To be announced
Display/Colors: 800x600 or higher/65,536 colors (16 bit High Color) or more.
