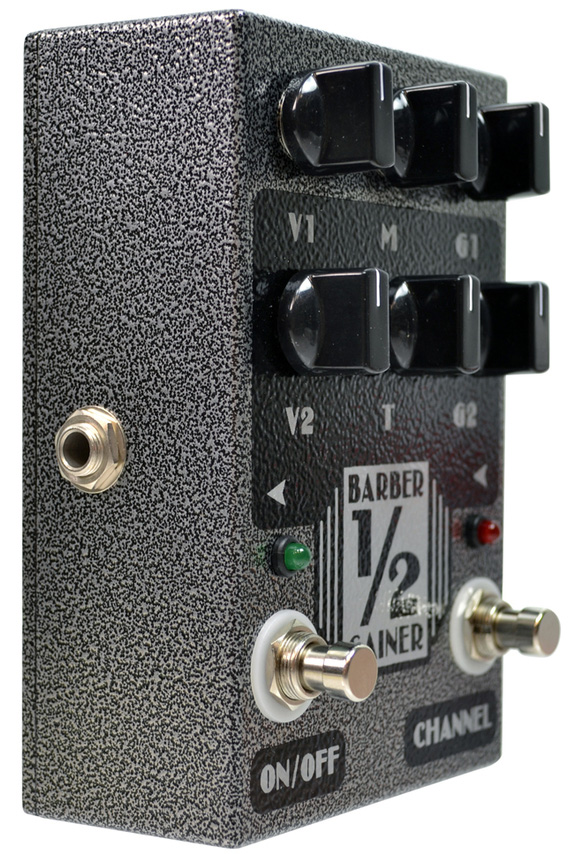

Barber Electronics 1/2 Gainer Overdrive

Barber Electronics 1/2 Gainer Overdrive

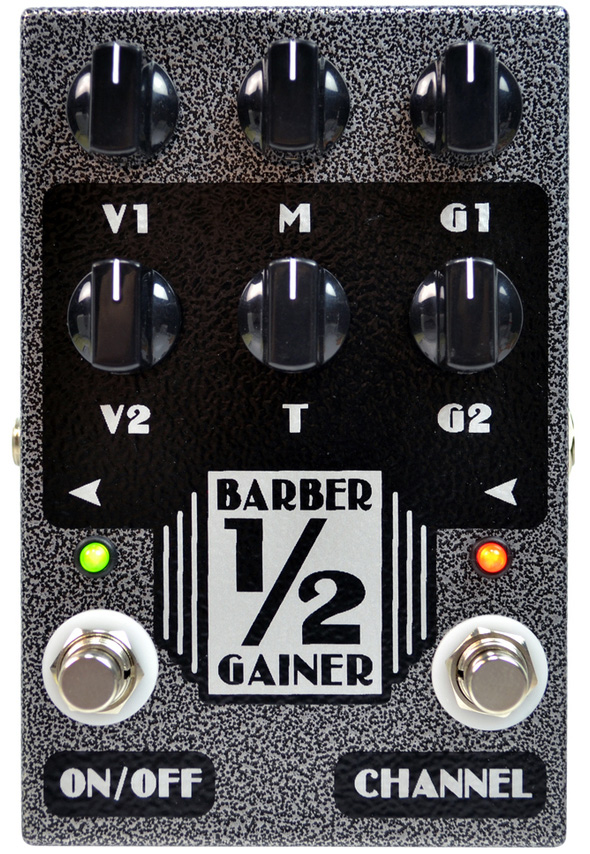

Let's get to know the 1/2 Gainer controls; the on/off footswitch chooses bypass or engages the 1/2 gainer, the channel footswitch chooses which channel is selected. Each channel has its own volume and Drive control for independent output level and sustain adjustments. Both channels share the user adjustable internal treim pots, they also share the "midrange character" and tone controls mounted on top of the unit. The sound and function of the 1/2 Gainer is based on out very popular LTD series.
Barber Electronics 1/2 Gainer Overdrive Features:

V1 = Volume for "red LED" Channel.
V2 = Volume for "channel LED not lit" Channel.
G1 = Sustain/overdrive for the "red LED" channel.
G2 = Sustain/overdrive for the "channel LED not lit" channel.
M = Midrange character. This control uses a unique dual stack pot to adjust the amount of midrange content, while shaping frequencies around the midrange for best presenttion. It is normal to hear a little "noise" while turning this control (DC shift), and the overall level will be slightly reduced at the lowest settings, simply compensate with the V1 and V2 controls
T = Tone control, this is a "balance type" tone control that is centered at 12 o'clock. As you turn the tone control up, the treble increases and the bass slightly reduces, if you turn it counterclockwise, the treble decreases and the bass is slightly increased.
Internal trim pots - There are three internal user adjustable trim pots inside the 1/2 gainer. The white one marked "NS" is for note-shape, the white one "P" is for presence; (stock 1 o'clock). The orange trim pot marked "B" is for bass, (stock is 1 o'clock. Feel free to adjust the trim pots to best match your amp/guitar. The note shape trim pot sets the amount of bass and gain being fed into the overdrive circuit. This will make the sound tighter (counter-clockwise) or looser with less gain (clockwise).
9 V DC center negative operations, will also run on 18 V DC center negative
