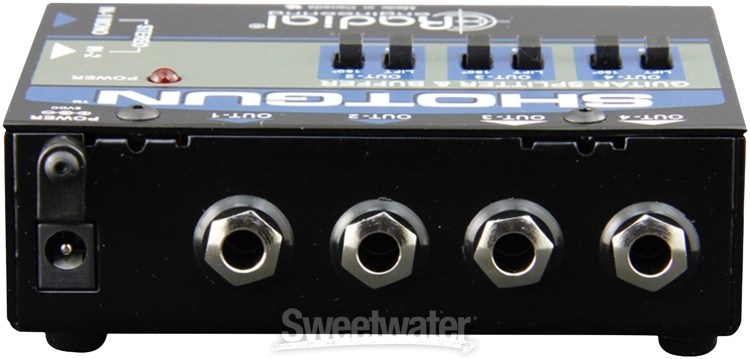

Radial Engineering Shotgun 4-channel Amp Driver

Revolutionize Your Guitar Rig
Need to drive multiple amps? Sweetwater has a device you should know about. The Radial Shotgun guitar-level signal buffer fits neatly on your pedalboard and simultaneously drives up to four guitar amps. The Shotgun has two inputs, with a switching jack on Input 2 that, when connected, changes the signal distribution configuration between 1 x 4 mono and 2 x 2 stereo. Radial spec'd the Shotgun with its unique Consistent Load Compensation (CLC) circuit, which maintains stable input impedance to protect the sonic character of your signal, no matter if you use one or two sources.
A world of versatility - without noise

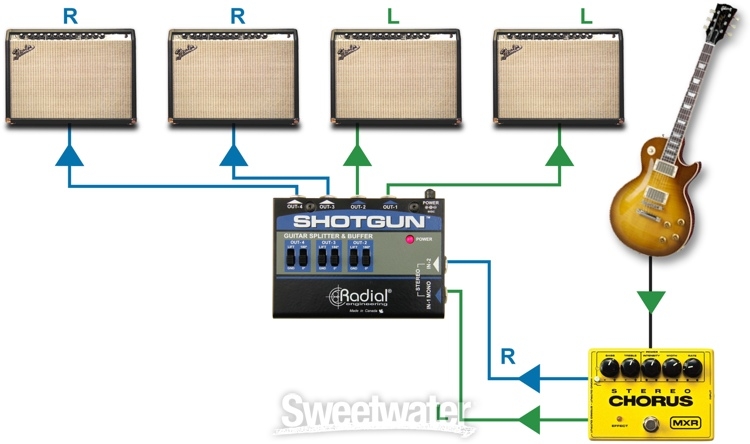

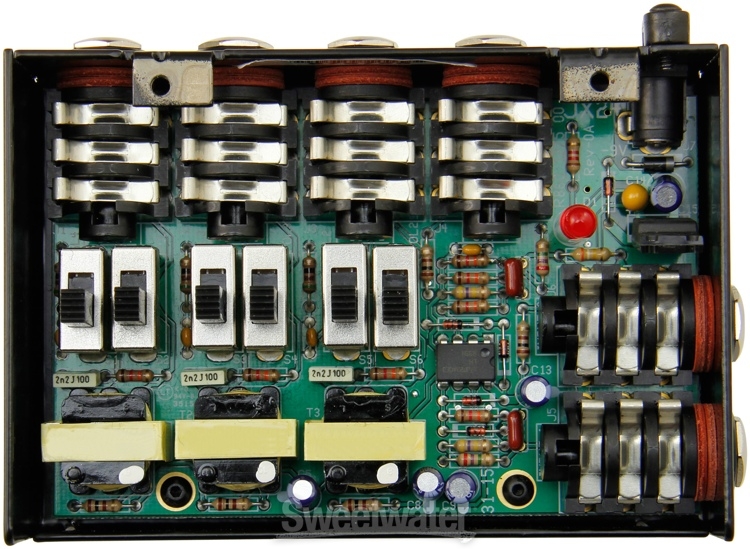

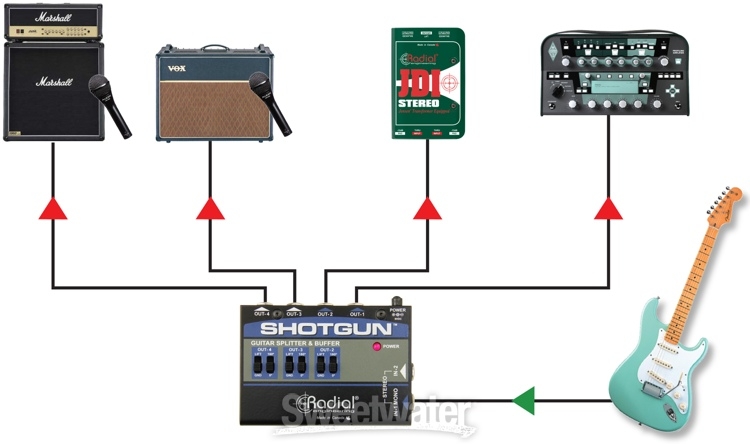

Under the hood, the Radial Shotgun is fitted with a low-noise buffer circuit that drives your tone up to 50' with no noise. What's more, iso transformers across outputs 2, 3, and 4 help eradicate the irksome hums and buzzes due to ground loops in a multi-amp setup. When you're using it in 1 x 4 mono mode, the Shotgun easily drives multiple amps, direct box outputs, and modeling amplifiers simultaneously. Switch to 2 x 2 stereo mode, and you can connect, say, a stereo chorus output to the Shotgun and noiselessly drive two or four amplifiers in stereo and in phase.
Radial Shotgun Features:

Guitar-level signal buffer drives up to 4 guitar amps
Select between 1 x 4 mono and 2 x 2 stereo configuration
Isolated outputs eliminate hum and buzz due to ground loops
Buffered outputs easily drive extra-long cable runs
Radial's Consistent Load Compensation (CLC) circuit
Powered via standard 9-volt supply or multi-pedal power brick

Revolutionize your guitar rig with the Radial Shotgun!


Tech Specs



Type
Splitter, Amp Driver


Inputs
2 x 1/4" (L/Mono, Right)


Outputs
4 x 1/4"


Power Source
9V DC power supply


Height
1.37"


Width
3.5"


Depth
4.5"


Weight
1.1 lbs.


Manufacturer Part Number
R800 7215
