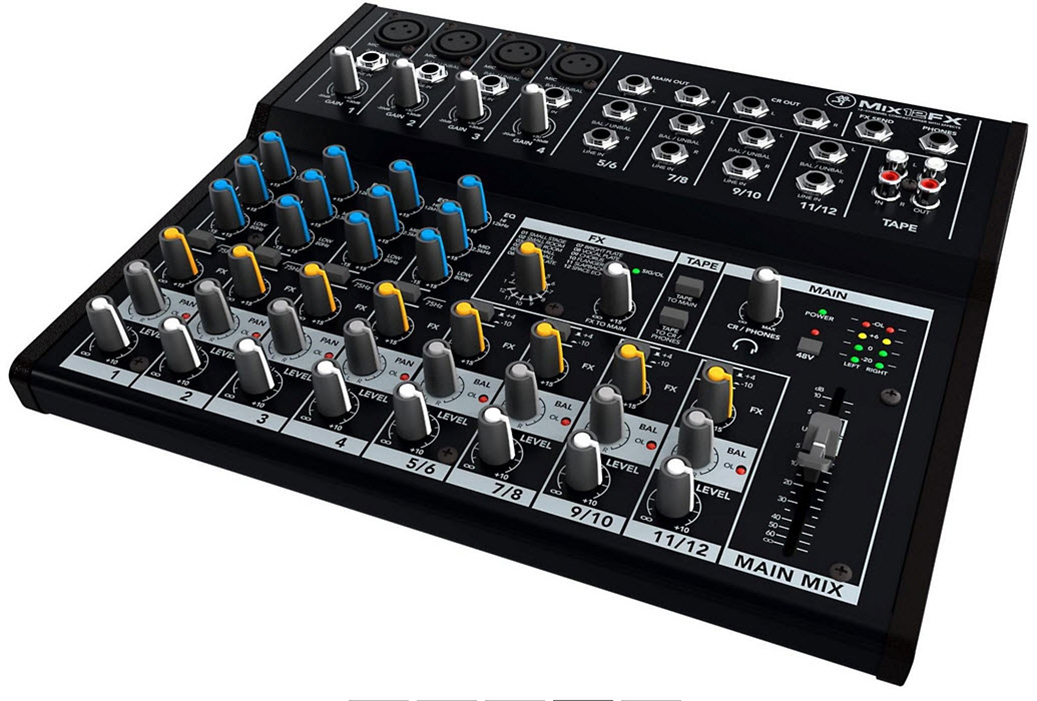

Mackie Mix12FX 12-Channel Compact Mixer with Effects

Small format, low noise, quality effects.

Mackie is a leader in many categories, the small format mixer being among the foremost. The Mix12FX represents Mackie's current 12-channel option in the inexpensive, low-profile mixer marketplace, and like all of their small format mixers from the past, the Mix12FX is a winner. It features Mackie's signature "built like a tank" construction care of its rugged metal chassis, and four of Mackie's legendary preamps. Other features include: 12-channels with proven high-headroom, low-noise performance 4 mic/line inputs with studio-level audio quality 3-band EQ with clean, precise tone shaping Low cut filter (75Hz) Pan, level and overload indication Phantom power for studio condenser mics 4 stereo 1/4' line inputs +4/-10dB operation Balance, level and overload indication 12 great-sounding integrated effects including reverbs, choruses and delays Dedicated stereo RCA inputs/outputs for playback or recording 60mm fader for Main L/R outputs Headphone and stereo control room outputs Rugged, reliable design built to last Extremely compact and portable

FEATURES Analog inputs

Total: 12
XLR: 4
XLR/TRS combo jack: Not applicable
1/4" TRS: 4
1/4" TS: 8
Aux returns: None
RCA (stereo pair): 1
Phantom power: Yes

Analog outputs

Total: 8
Main XLR: Not applicable
Main 1/4" TRS: Not applicable
Main 1/4" TS: 2
Aux XLR: None
Aux 1/4" TRS: Not applicable
RCA (stereo pair): 1
Headphone: 1/4" x 1

Onboard effects


Compressors: No


Reverb: Yes

Delay: Yes
Chorus/flange: Yes
Simultaneous multi FX: Yes

Equalization

Rotary bands per channel: 3
Treble: Yes
High midrange: No
Sweep high midrange: No
Midrange: Yes
Sweep midrange No
Low midrange: No
Sweep Low midrange: No
Low: Yes
Parametric: No
Master graphic EQ: No

Inserts/sends/busses

XLR aux sends: None
XLR group sends: None
Inserts (channel): Not applicable
Inserts (master): Not applicable
Buses: 1
Sub groups: None

Connectivity

USB: No
FireWire: No
SMPTE: No
Coaxial: No
WiFi: No
ADAT: No

Other

Channel aux returns: 1
Width: 11.7"
Depth: 9.6"
Height: 2.1"
Weight: 3.7 lbs.
Automation: No
Channel Faders: 8
Fader type: Rotary
Motorized faders: No



Mix on a Mackie. Order today.
