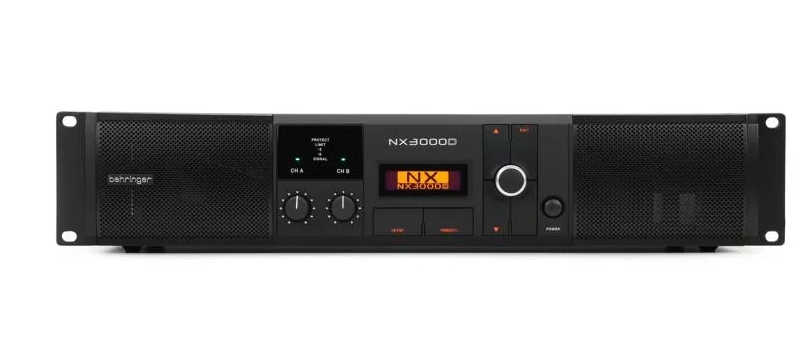

Behringer NX3000D Power Amplifier with DSP

Lightweight and Packed with Powerful DSP
The Behringer NX3000D packs impressive power into a lightweight, cool-running unit. This power amplifier delivers 900 watts/channel into 4 ohms, 1,500 watts/channel into 2 ohms, or a whopping 3,000 watts into 4 ohms bridged, giving you plenty of headroom to work with. Experience low noise, superior transient response, and low power consumption, thanks to an efficient switch-mode power supply. Benefit from a linear frequency response at any speaker load, by virtue of the NX3000D's SmartSense loudspeaker impedance compensation. Zero-attack limiters supply maximum output with reliable overload protection. Beyond that, high-performance DSP offers sophisticated delay, a crossover, EQ, dynamics processing, and more. The NX3000D includes reliable twist-lock speaker connectors and precise 4-segment LED metering.

Lightweight and efficient Class D amplifier technology
Thanks to revolutionary Class D technology with "near-zero" thermal buildup, the lightweight NX3000D runs very cool, no more massive heat sinks or toroid transformers. We've been impressed with the punch and clarity of this Class D power amp at Sweetwater, and we're sure your band will be too.


Linear frequency response at any speaker load
The NX1000D punches well above its weight. Behringer's SmartSense Technology yields a linear frequency response at any speaker load impedance. On top of that, the NX1000D's impressive damping factor offers superior amplifier control over your speakers, ensuring top-notch sound reproduction. When combined with quality loudspeakers, the NX1000D yields powerful, dynamic bass and ultra-smooth high-frequencies.

Top-shelf sound from high-performance DSP
The NX3000D comes loaded with high-performance DSP. Benefit from sophisticated delay. Dial in the perfect crossover setting with three filter types at up to 48dB/octave. You also get eight parametric and two dynamic EQs, along with dynamics processing and lockable security settings. A convenient front-panel LCD screen allows easy adjustments from the front of the NX3000D, without the need for a computer. And thanks to 24-bit/96kHz converters, the NX3000D delivers top-shelf sound and ample dynamic range.


Designed for exceptional ease-of-use
Operating the NX3000D is dead simple. Benefit from at-a-glance confirmation of your system's vital signs, by way of the NX3000D's simple front-panel controls and indicators. Positive-detent gain controls with signal level LEDs on each channel make gain-staging a piece of cake. Rear-panel combo XLR and 1/4" TRS input connectors ensure compatibility with just about any source. Reliable twist-lock speaker connectors prevent unwanted "unplugging" incidents. You also get switchable dual mono, stereo, and mono bridge modes.

Behringer NX3000D Features:

Delivers 900W/channel into 4 ohms, 1,500W/channel into 2 ohms, or 3,000W into 4 ohms bridged
Class D technology with "near-zero" thermal buildup runs extremely cool
Efficient switch-mode power supply gives you low noise, superior transient response, and low power consumption
SmartSense loudspeaker impedance compensation yields linear frequency response at any speaker load
Impressive damping factor offers superior amplifier control over your speakers
Zero-attack limiters supply maximum output with reliable overload protection
High-performance DSP offers sophisticated delay, a crossover, EQ, dynamics processing, and more
24-bit/96kHz converters ensure excellent signal integrity and ample dynamic range
Positive-detent gain controls with 4-segment LED metering on each channel make gain-staging easy
Rear-panel combo XLR and 1/4" TRS input connectors ensure compatibility with just about any source
Reliable twist-lock speaker connectors prevent unwanted "unplugging" incidents
Thermal overload protection protects your amplifier and speakers

Tech Specs

Number of Channels:2
Power Class:Class D
Watts/Side @ 8 ohms:440W
Watts/Side @ 4 ohms:900W
Watts/Side @ 2 ohms:1500W
Watts Bridged:3000W @ 4 ohms, 1500W @ 8 ohms
Inputs:2 x XLR-1/4" combo
Outputs:2 x SpeakON
Data I/O:1 x USB Type B (remote DSP control)
Cooling System:Single Variable Speed Fan (back to front air flow)
DSP:Delay, 8-band Parametric, 2-band Dynamic EQ, Peak Limiter, 20 total presets (19 user)
Filters:3 x Crossover Filters 48dB/octave
Overload Protection:Thermal and DC protection
Rack Spaces:2U
Height:3.7"
Depth:9.1"
Width:19"
Weight:7.9 lbs.
Manufacturer Part Number:NX3000D
